0.5 - 3 mm Steel Euro Hexsert Rivet Nuts - 39101-75030
Cód:
39101-75030
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

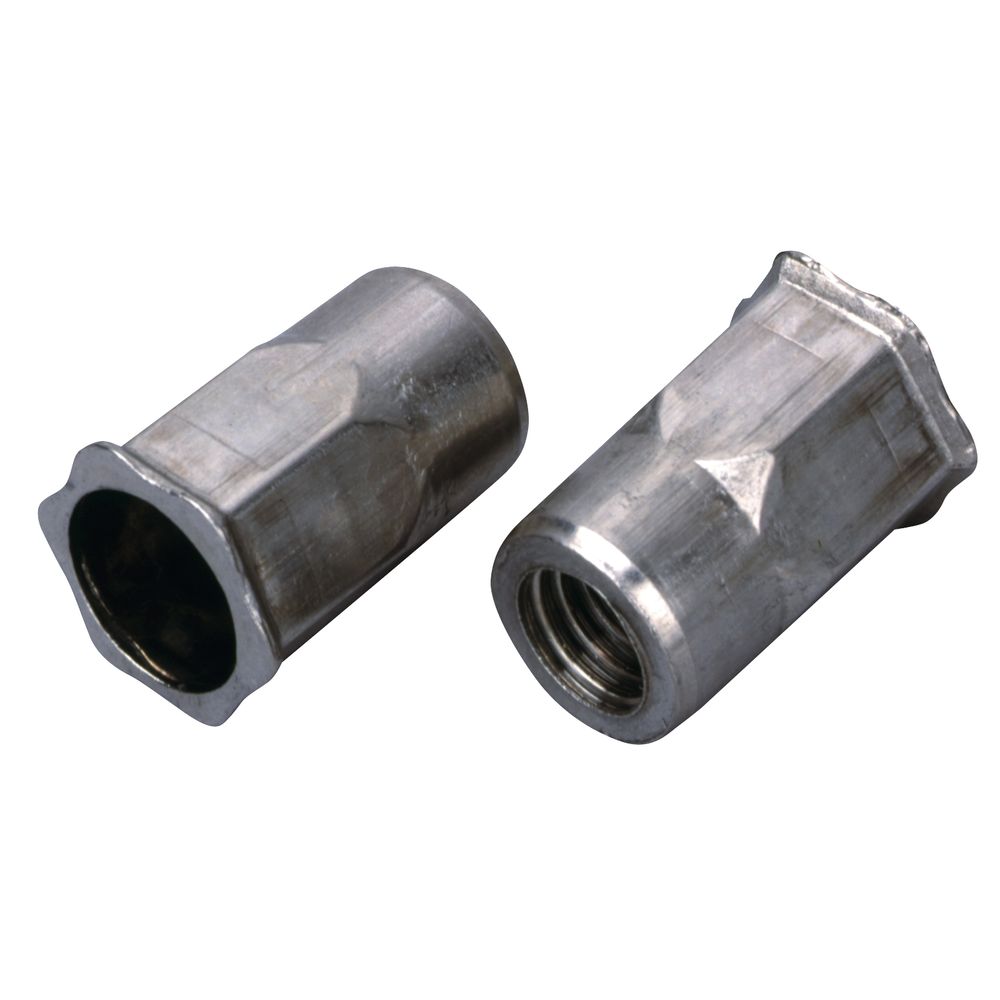

Euro Hexsert Steel 0.5 - 3 mm Low Profile Half Hexagonal Rivet Nuts

Euro Hexsert

Description0.5 - 3 mm Low Profile Half Hexagonal Steel Euro Hexsert Rivet Nuts
Product familyEuro Hexsert
MaterialSteel
Open / ClosedOpen
Head StyleLow Profile
Body StyleHalf Hexagonal
ThreadM5
Min grip mm0.5
Max grip mm3.0
Min Hole Size mm7.0
Max Hole Size mm7.1
Nominal Body Length mm12.7
Max Flange Diameter mm9.1
Max Flange Thickness mm0.84

default

JDE_Lead_Time_Days182
JDE_Weight5.75357
JDE_Country_of_OriginTW
JDE_HTS_Code7318190000
JDE_Weight_Per_UOMM
JDE_Weight_UOMLB
Minimum Order Quantity1500
Features

    Fast Facts:


  • Improves torque-to-turn by up to 200% in sheet metal compared to round-body inserts.

  • Blind hole, one-sided installation capability.

  • Superior pull-out performance.

  • Can be used for very thin sheet materials from 0.50mm (0.02").

  • Double diameter body and lead-in chamfer provide easy insertion into hole.

  • Provide a female thread in application.

  • Can be installed in pre-coated or post-painted applications without damaging the surface.

  • Clamp two or more sheets.

  • Various platings available to increase corrosion resistance.

  • Low-profile version allows near-flush fit to application.

  • Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out.

  • Large-flange version can be used as a spacer and can be supplied with an underhead seal.

  • Closed end prevents the ingress of dirt and fluids into thread and electrical circuits.

  • Assembly applications include automotive chassis components, electrical engineering, sheet metal, domestic appliances, switchgear cabinets, and thermal applications.



    • Specifications:


  • Thread Sizes: M3-M12

  • Material: Steel, stainless steel

  • Finishes: Steel: Zinc plated and clear trivalent passivated

  • Headforms: Low profile and large flange

  • Option: Closed end

  • Hole Size: Metric and imperial options
