0.5 - 2 mm Steel Euro Hexsert Rivet Nuts - 39101-74020

Cód:

39101-74020

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

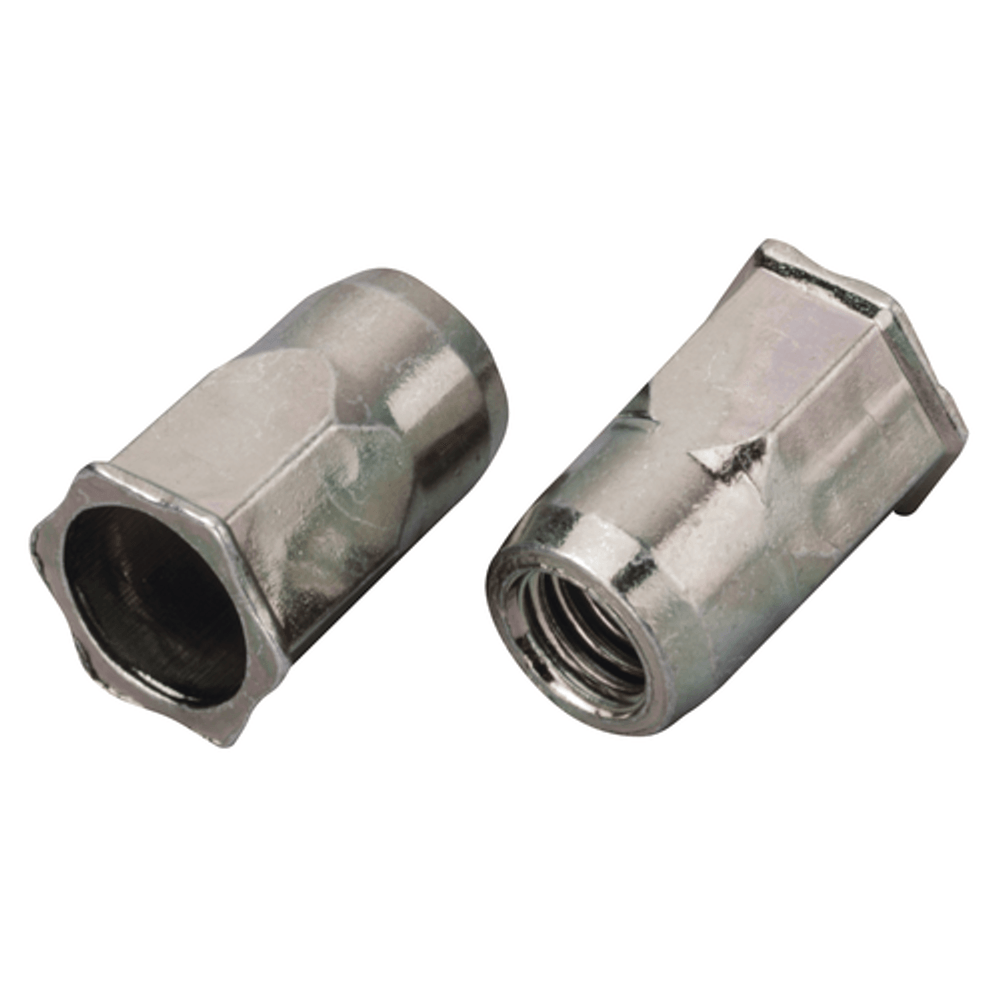

Euro Hexsert Steel 0.5 - 2 mm Low Profile Half Hexagonal Rivet Nuts

Euro Hexsert

Description	0.5 - 2 mm Low Profile Half Hexagonal Steel Euro Hexsert Rivet Nuts
Product family	Euro Hexsert
Material	Steel
Open / Closed	Open
Head Style	Low Profile
Body Style	Half Hexagonal
Thread	M4
Min grip mm	0.5
Max grip mm	2.0
Min Hole Size mm	6.0
Max Hole Size mm	6.1
Nominal Body Length mm	10.5
Max Flange Diameter mm	7.8
Max Flange Thickness mm	0.76

default

JDE_Lead_Time_Days	140
Minimum Order Quantity	3000
Features	Fast Facts: Improves torque-to-turn by up to 200% in sheet metal compared to round-body inserts. Blind hole, one-sided installation capability. Superior pull-out performance. Can be used for very thin sheet materials from 0.50mm (0.02"). Double diameter body and lead-in chamfer provide easy insertion into hole. Provide a female thread in application. Can be installed in pre-coated or post-painted applications without damaging the surface. Clamp two or more sheets. Various platings available to increase corrosion resistance. Low-profile version allows near-flush fit to application. Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out. Large-flange version can be used as a spacer and can be supplied with an underhead seal. Closed end prevents the ingress of dirt and fluids into thread and electrical circuits. Assembly applications include automotive chassis components, electrical engineering, sheet metal, domestic appliances, switchgear cabinets, and thermal applications. Specifications: Thread Sizes: M3-M12 Material: Steel, stainless steel Finishes: Steel: Zinc plated and clear trivalent passivated Headforms: Low profile and large flange Option: Closed end Hole Size: Metric and imperial options
