ATC M8 X 23.0MM MS AF A * - 102228024

Cód:

102228024

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

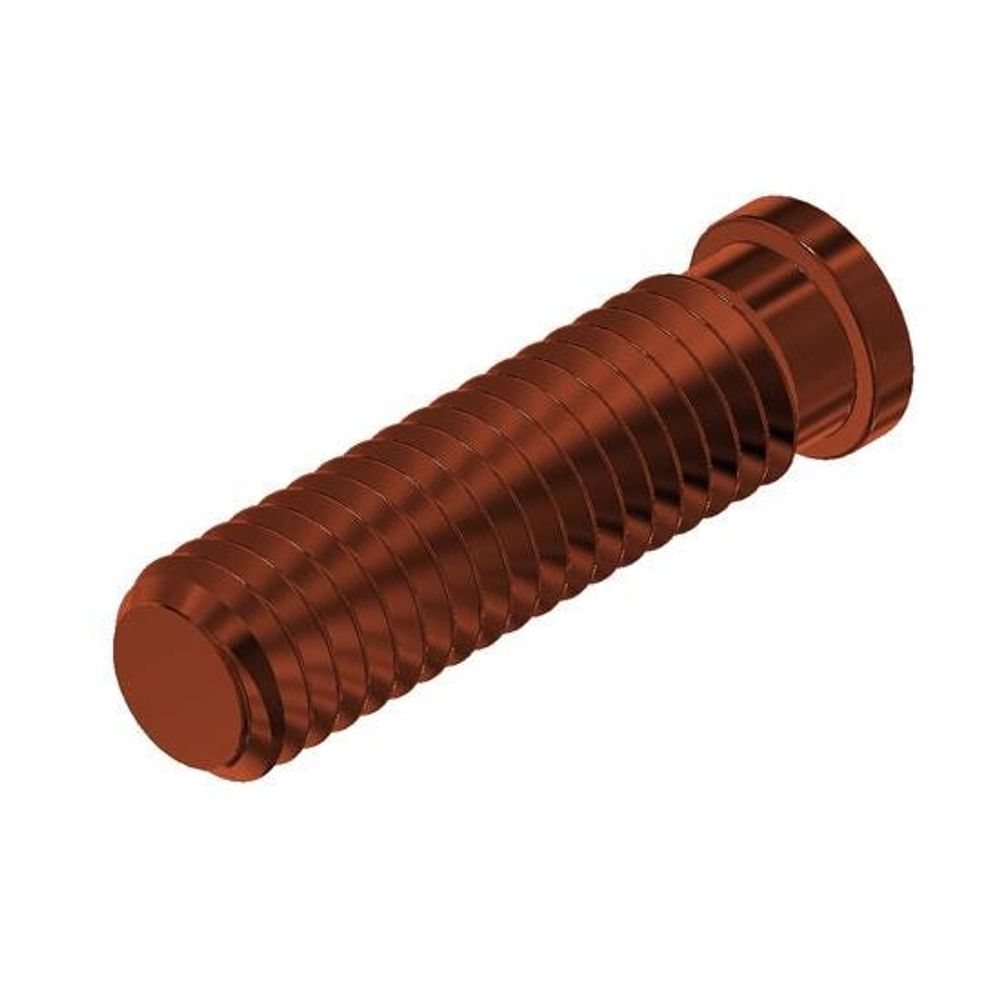

ATC M8 X 23.0MM MS AF A *

ATC - Small Flange, Threaded, Carbon Steel

Related Foot	502001137.0
Related Grip	511001108.0
Related Chuck	500001009.0
Thread Size	M8 metric
Overall Length	23 mm
Weld Base Dia	9 mm
Stud Dia	8 mm
Material (O)	Low Carbon Steel
Brand	Nelson
Weight	0.016 Lb
Length	23 mm
Width	9 mm
Height	9 mm

default

Features	1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet. 2. Standard studs come in lengths up to 1.25”, 30mm. 3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts. 4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).

Features

1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet.

2. Standard studs come in lengths up to 1.25”, 30mm.
3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts.
4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).
