ATC 6-32 X 5/8 MS CUPL - 101222062

Cód:

101222062

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

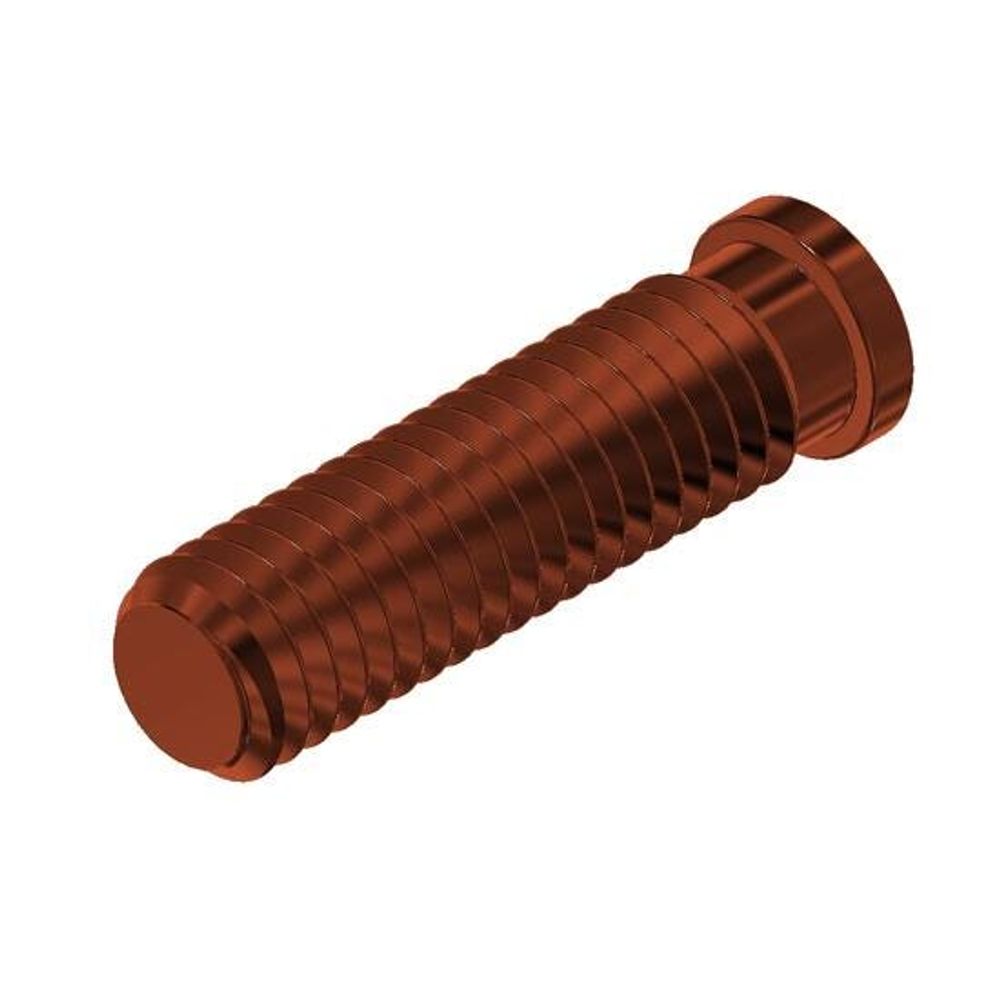

ATC 6-32 X 5/8 MS CUPL

ATC - Small Flange, Threaded, Carbon Steel

Height	0.168 inches
Width	0.168 inches
Length	0.625 inches
Weight	0.003 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.138 inches
Weld Base Dia	0.168 inches
Overall Length	0.625 inches
Thread Size	6-32 UN/UNF
Related Chuck	500001002.0
Related Grip	511001108.0
Related Foot	502001137.0

default

Features	1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet. 2. Standard studs come in lengths up to 1.25”, 30mm. 3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts. 4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).

Features

1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet.

2. Standard studs come in lengths up to 1.25”, 30mm.
3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts.
4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).
