S7X 3/16 X 2 1/8 SS-304 B - 101122015

Cód:

101122015

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

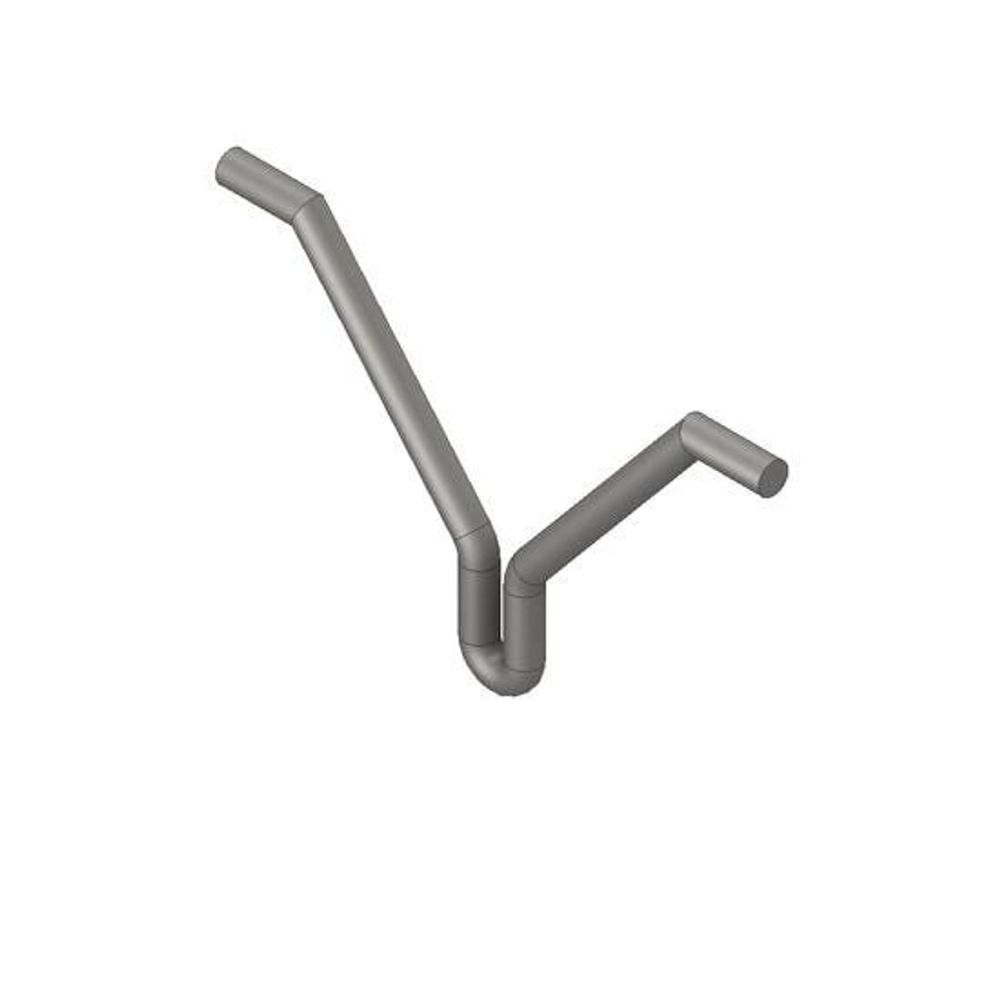

S7X 3/16 X 2 1/8 SS-304 B

S7X - Steerhorn Refractory Anchor

Height	2.125 inches
Width	0.187 inches
Length	2.125 inches
Weight	0.017 Lb
Brand	Nelson
Material (O)	Stainless Steel
Stud Dia	0.187 inches
Weld Base Dia	0.412 inches
Head Dia	0.87 inches
Overall Length	2.125 inches
Base Length	0.62 inches
Related Ferrule	100101170.0
Related Chuck	500015073.0
Related Foot	501006018.0

default

Features	1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5" 2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots. 3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.

Features

1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5"

2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots.
3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.
