S7X 3/16 X 1 5/8 SS304 B - 101122003

Cód:

101122003

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

S7X 3/16 X 1 5/8 SS304 B

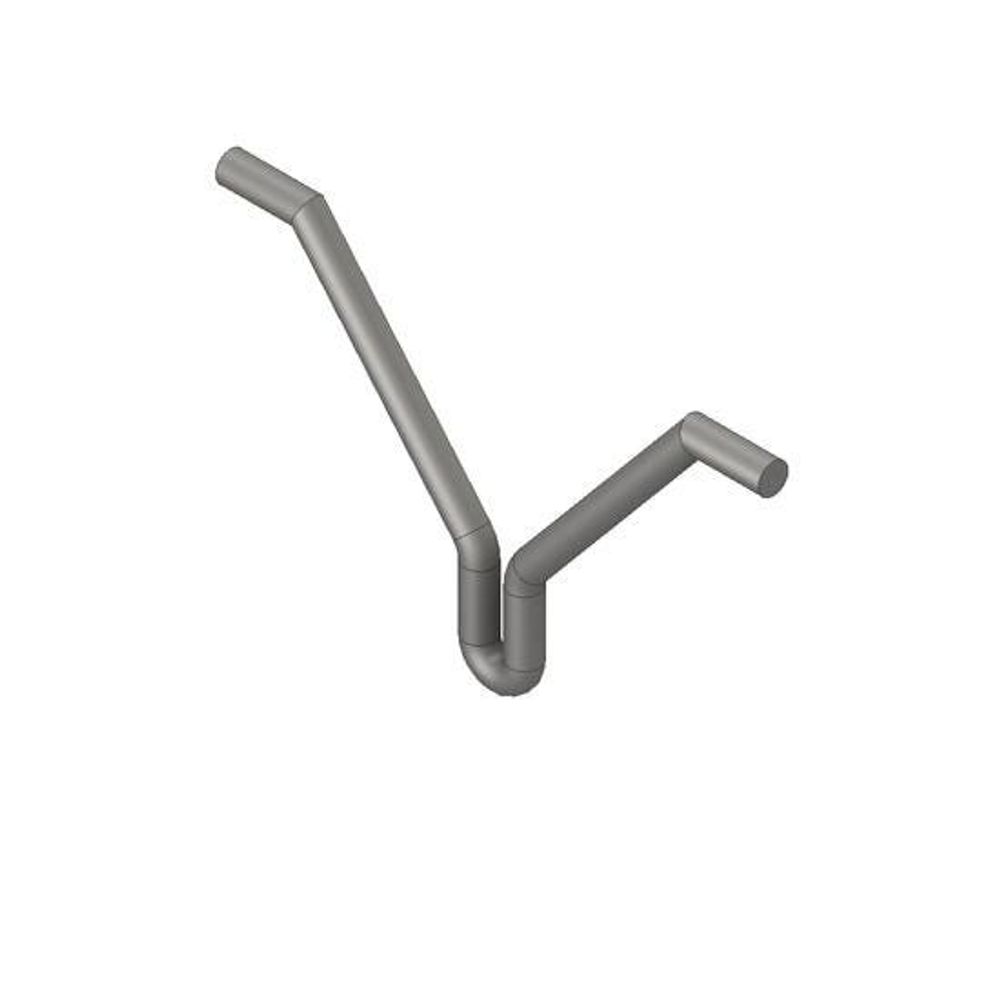

S7X - Steerhorn Refractory Anchor

Related Foot	501006018.0
Related Chuck	500015073.0
Related Ferrule	100101170.0
Base Length	0.62 inches
Overall Length	1.625 inches
Head Dia	0.87 inches
Weld Base Dia	0.412 inches
Stud Dia	0.187 inches
Material (O)	Stainless Steel
Brand	Nelson
Weight	0.04 Lb
Length	1.625 inches
Width	0.187 inches
Height	1.625 inches

default

Features	1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5" 2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots. 3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.

Features

1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5"

2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots.
3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.
