NBL 5/16 X 1 MS 5/16 KO A* - 101064366
Cód:
101064366
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

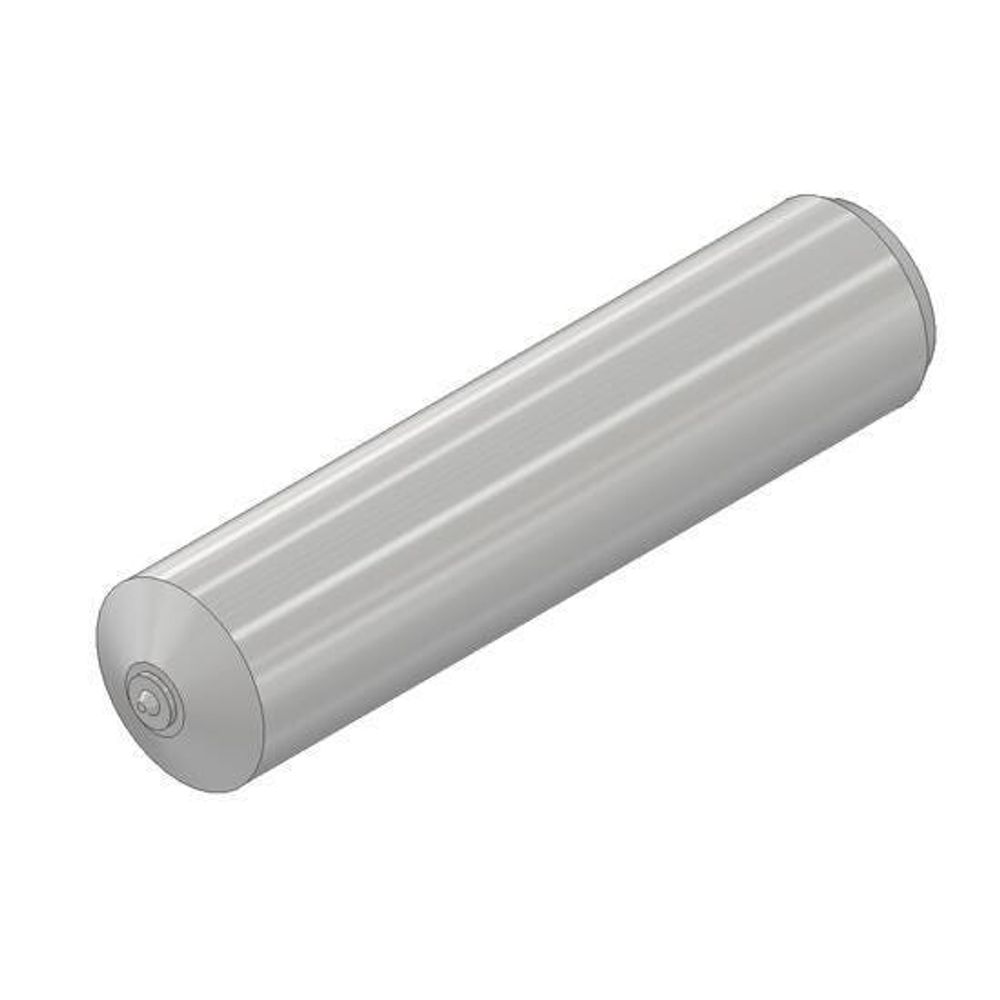

NBL 5/16 X 1 MS 5/16 KO A*

NBL - Abrasion Resistant

Height0.3125 inches
Width0.3125 inches
Length1 inches
Weight0.022 Lb
BrandNelson
Material (O)Low Carbon Steel
Stud Dia0.3125 inches
Weld Base Dia0.3125 inches
Overall Length1 inches
Burn Off0.125 inches
Flash Dia0.437 inches
Flash Thickness0.109 inches
Related Ferrule100101007.0
Related Chuck500001009.0
Related Grip501001006.0
Related Foot502001137.0
Related HD Foot502001001.0

default

Features
  • Nelson’s B4L and B4P studs have a 90° bend and are used for exposed hangars and steps. They are also embedded as anchors or supports for positioning reinforcing bars.

  • Nelson NBL studs are designed to be welded to heavy base materials and are commonly used as locator pins, axles, pivot points, spacers, and stops. In the power generation market, they are used to anchor refractory to water walls and to facilitate heat transfer in coal burning furnaces. In forging applications, NBL studs are used as the tong hold on the ends of billets.

  • NJL unthreaded studs have a reduced weld base diameter, to produce a smaller weld flash diameter. The smaller weld flash allows the use of smaller clearance holes. The strength of the assembly is determined by the area of the reduced weld base rather than the thread area.
