NBL 1/4 X 17 5/8 MS - 102063577
Cód:
102063577
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

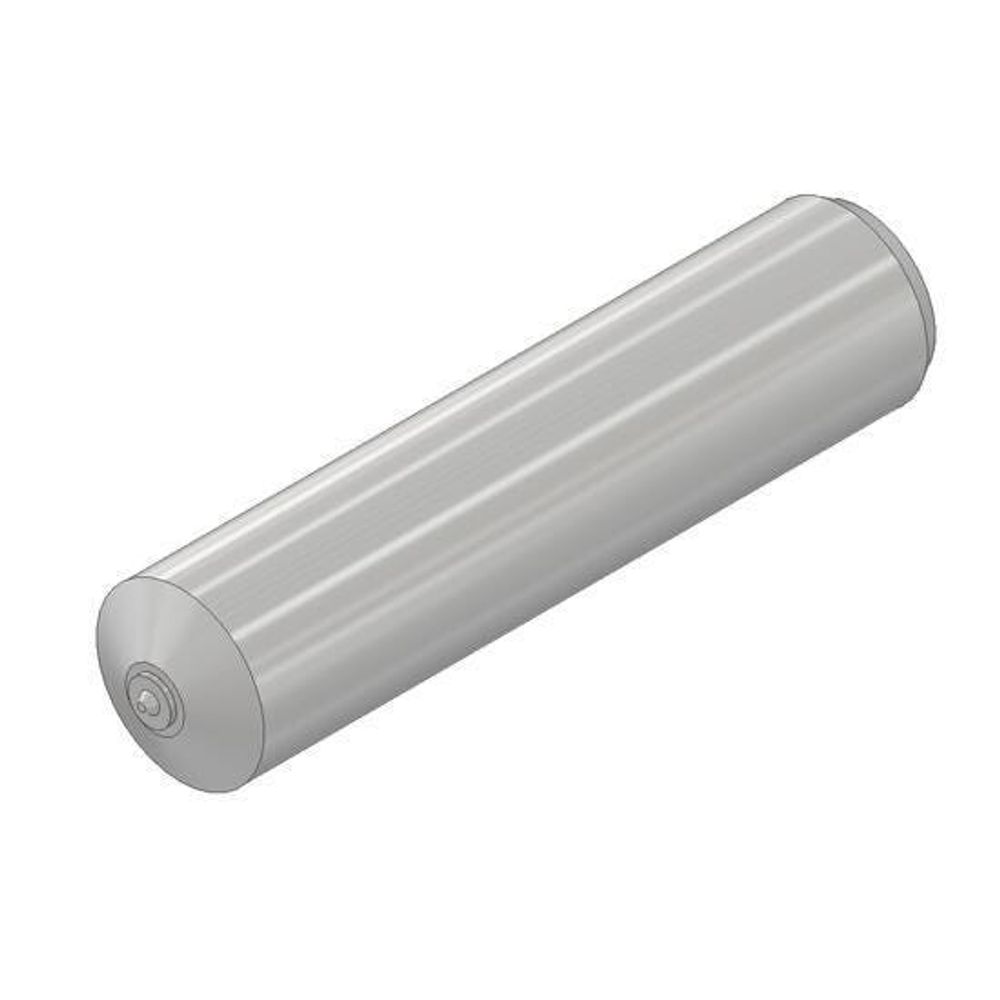

NBL 1/4 X 17 5/8 MS

NBL - Abrasion Resistant

Related HD Foot502001001.0
Related Foot502001137.0
Related Grip501001007.0
Related Chuck500001007.0
Related Ferrule100101067.0
Flash Thickness0.109 inches
Flash Dia0.356 inches
Burn Off0.125 inches
Overall Length5 inches
Weld Base Dia0.25 inches
Stud Dia0.25 inches
Material (O)Low Carbon Steel
BrandNelson
Weight0.245 Lb
Length5 inches
Width0.25 inches
Height0.25 inches

default

Features
  • Nelson’s B4L and B4P studs have a 90° bend and are used for exposed hangars and steps. They are also embedded as anchors or supports for positioning reinforcing bars.

  • Nelson NBL studs are designed to be welded to heavy base materials and are commonly used as locator pins, axles, pivot points, spacers, and stops. In the power generation market, they are used to anchor refractory to water walls and to facilitate heat transfer in coal burning furnaces. In forging applications, NBL studs are used as the tong hold on the ends of billets.

  • NJL unthreaded studs have a reduced weld base diameter, to produce a smaller weld flash diameter. The smaller weld flash allows the use of smaller clearance holes. The strength of the assembly is determined by the area of the reduced weld base rather than the thread area.
