NBL 12.0MM X 95.0MM SPEC,A675/ - 102063441
Cód:
102063441
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

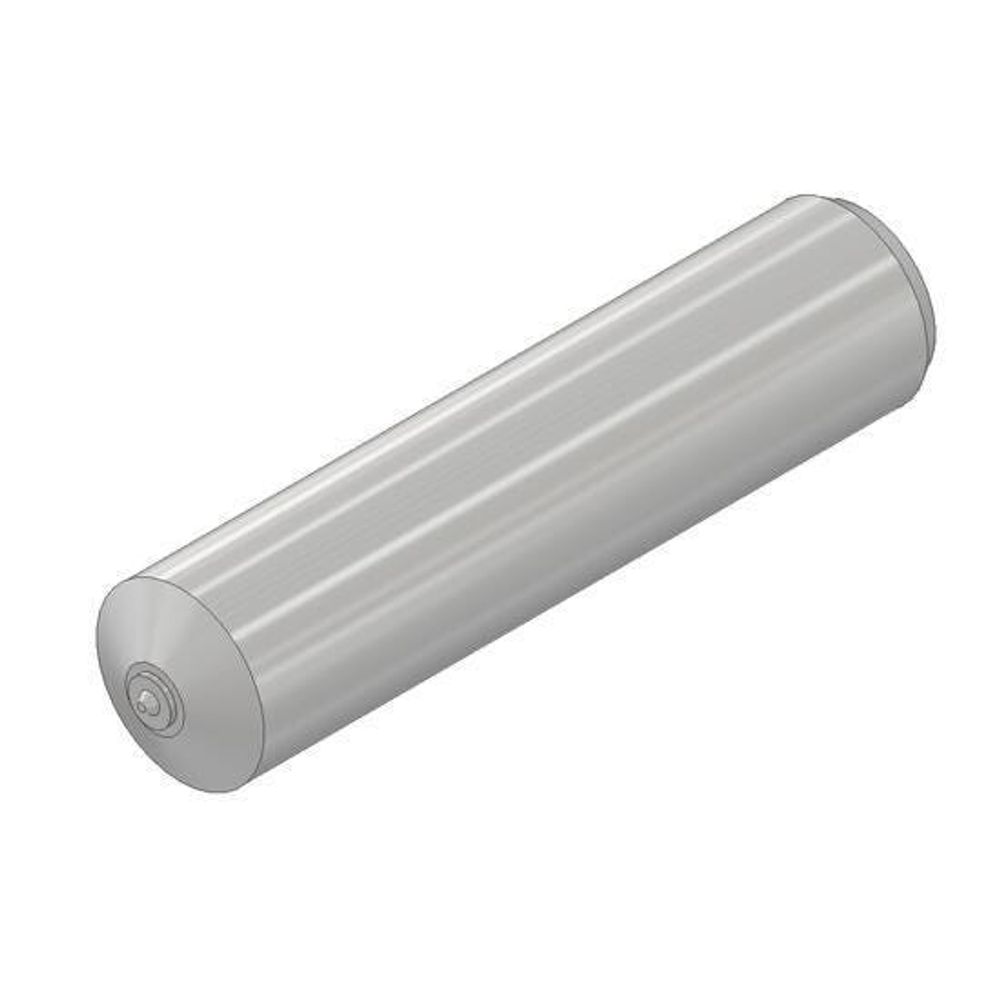

NBL 12.0MM X 95.0MM SPEC,A675/

NBL - Abrasion Resistant

Height12 mm
Width12 mm
Length95 mm
Weight0.185 Lb
BrandNelson
Material (O)Low Carbon Steel
Stud Dia12 mm
Weld Base Dia12 mm
Overall Length95 inches
Burn Off3 mm
Flash Dia16 mm
Flash Thickness4.5 mm
Related Ferrule100101027.0
Related Chuck500001206.0
Related Grip501001009.0
Related Foot502001137.0
Related HD Foot502001001.0

default

Features
  • Nelson’s B4L and B4P studs have a 90° bend and are used for exposed hangars and steps. They are also embedded as anchors or supports for positioning reinforcing bars.

  • Nelson NBL studs are designed to be welded to heavy base materials and are commonly used as locator pins, axles, pivot points, spacers, and stops. In the power generation market, they are used to anchor refractory to water walls and to facilitate heat transfer in coal burning furnaces. In forging applications, NBL studs are used as the tong hold on the ends of billets.

  • NJL unthreaded studs have a reduced weld base diameter, to produce a smaller weld flash diameter. The smaller weld flash allows the use of smaller clearance holes. The strength of the assembly is determined by the area of the reduced weld base rather than the thread area.
