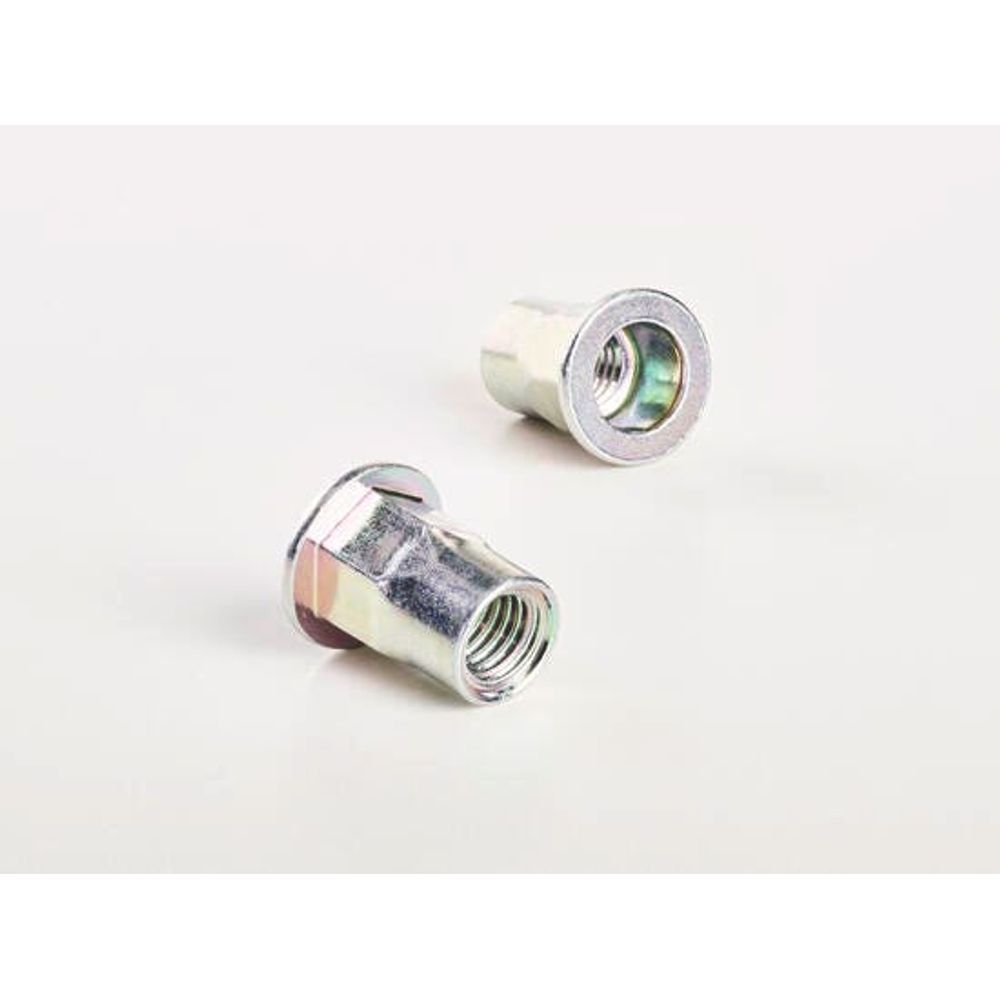

0.7 - 1.63 mm Steel Hexsert Rivet Nuts - 09688-70310
Cód:
09688-70310
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

Hexsert Steel 0.7 - 1.63 mm Low Profile Half Hexagonal Rivet Nuts

Hexsert

Description0.7 - 1.63 mm Low Profile Half Hexagonal Steel Hexsert Rivet Nuts
Product familyHexsert
MaterialSteel
Open / ClosedOpen
Head StyleLow Profile
Body StyleHalf Hexagonal
ThreadM3
Min grip mm0.7
Max grip mm1.63
Min Hole Size mm4.8
Max Hole Size mm4.85
Max Body Length mm9.02
Max Flange Diameter mm6.1
Max Flange Thickness mm0.45

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318190000
JDE_Country_of_OriginTW
JDE_Lead_Time_Days182
JDE_Weight1.3542
Minimum Order Quantity150000
Features

    Fast Facts:


  • Exceptional torque capability.

  • High-speed assembly.

  • Provides high-strength threads in thin materials starting at 0.5mm.

  • Increased thread strength.

  • Safeguard design avoids overtightening problems such as thread stripping.

  • Assembly applications include tubular steel, hydroformed parts, magnesium castings, and aluminum extrusions.



    • Specifications:


  • Sizes: M6, M8, M10 and M12

  • Headforms: Large flange

  • Shape: Hexagon

  • Material: Steel Zinc plated to BS 3382 and clear passivated to achieve 240 hours resistance to red corrosion (ASTM B117) Hexavalent Chromium-free



    • For assistance with hexagonal hole production, see our 74290 tool. The 74290 tool allows customers to benefit from the non-rotational properties of hexagonal inserts compared with round inserts. This is achieved by drilling a round hole, then inserting the 74290 tool and forming a hex hole.
