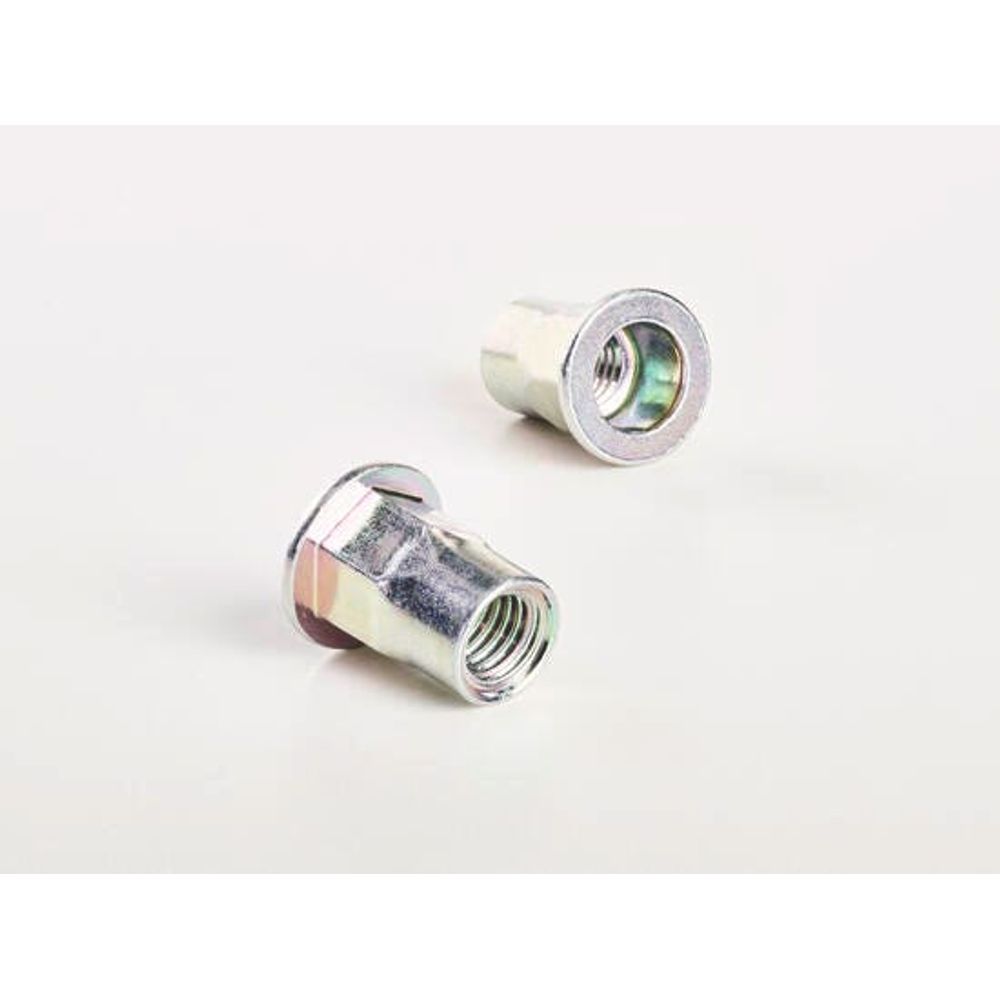

0.5 - 3 mm Steel Hexsert Rivet Nuts - 09498-72620
Cód:
09498-72620
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

Hexsert Steel 0.5 - 3 mm Large Flange Half Hexagonal Rivet Nuts

Hexsert

Description0.5 - 3 mm Large Flange Half Hexagonal Steel Hexsert Rivet Nuts
Product familyHexsert
MaterialSteel
Open / ClosedOpen
Head StyleLarge Flange
Body StyleHalf Hexagonal
ThreadM6
Min grip mm0.5
Max grip mm3.0
Min Hole Size mm9.0
Max Hole Size mm9.1
Nominal Body Length mm15.5
Max Flange Diameter mm13.2
Max Flange Thickness mm1.63

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318190000
JDE_Country_of_OriginTW
JDE_Lead_Time_Days182
JDE_Weight18.26226
Minimum Order Quantity2000
Features

    Fast Facts:


  • Exceptional torque capability.

  • High-speed assembly.

  • Provides high-strength threads in thin materials starting at 0.5mm.

  • Increased thread strength.

  • Safeguard design avoids overtightening problems such as thread stripping.

  • Assembly applications include tubular steel, hydroformed parts, magnesium castings, and aluminum extrusions.



    • Specifications:


  • Sizes: M6, M8, M10 and M12

  • Headforms: Large flange

  • Shape: Hexagon

  • Material: Steel Zinc plated to BS 3382 and clear passivated to achieve 240 hours resistance to red corrosion (ASTM B117) Hexavalent Chromium-free



    • For assistance with hexagonal hole production, see our 74290 tool. The 74290 tool allows customers to benefit from the non-rotational properties of hexagonal inserts compared with round inserts. This is achieved by drilling a round hole, then inserting the 74290 tool and forming a hex hole.
