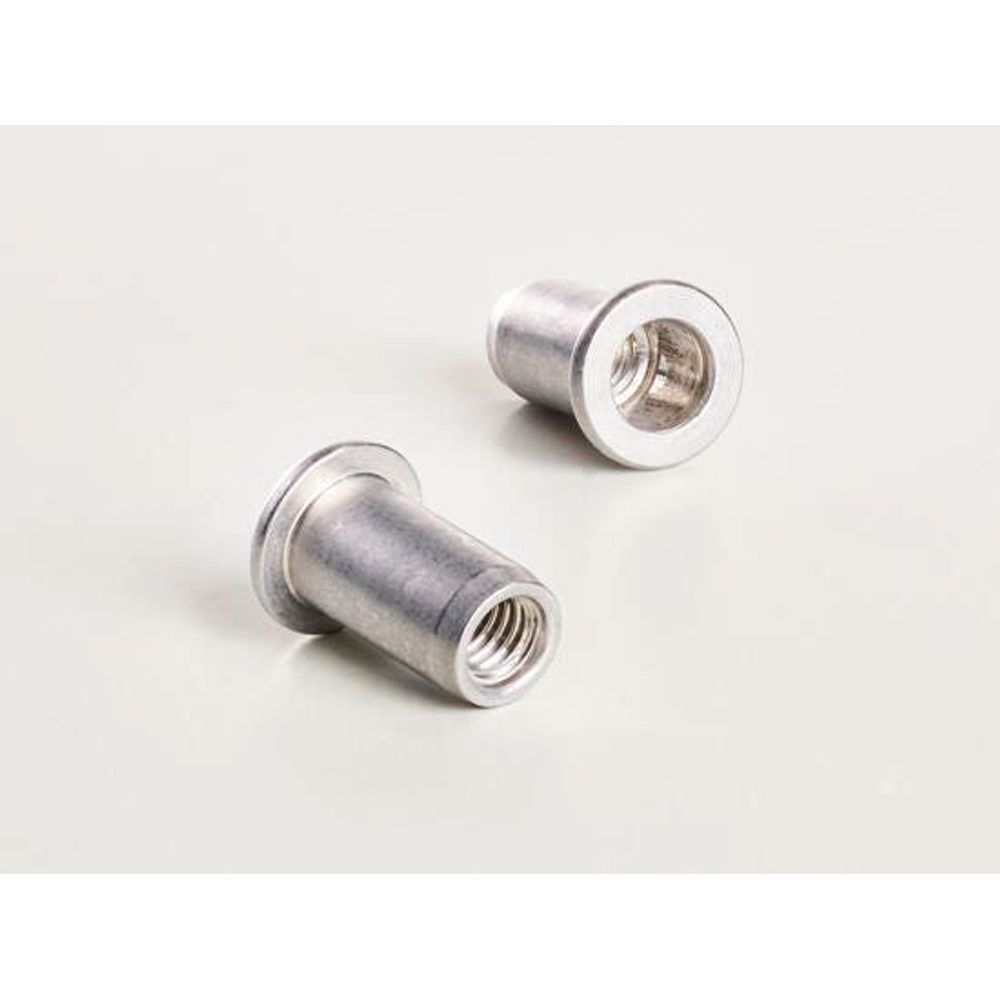

0.76 - 3.25 mm Steel Nutsert Rivet Nuts - 09654-70819
Cód:
09654-70819
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

Nutsert Steel 0.76 - 3.25 mm Low Profile Round Rivet Nuts

Nutsert

Description0.76 - 3.25 mm Low Profile Round Steel Nutsert Rivet Nuts
Product familyNutsert
MaterialSteel
Open / ClosedOpen
Head StyleLow Profile
Body StyleRound
Thread1/4
Min grip mm0.76
Max grip mm3.25
Min Grip Inches0.03
Max Grip Inches0.128
Min Hole Size mm9.53
Max Hole Size mm9.61
Min Hole Size Inches0.375
Max Hole Size Inches0.3785
Max Body Length mm14.6
Nominal Body Length mm0.575
Max Flange Diameter mm10.67

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318160085
JDE_Country_of_OriginCA
JDE_Lead_Time_Days182
JDE_Weight23.41309
Features

    Fast Facts:


  • Can be used in very thin sheet materials from 0.50mm (0.02").

  • Blind hole, one-sided installation capability.

  • Provides a female thread-in application.

  • Can be installed in pre-coated or post-painted applications without damaging the surface.

  • Various platings available to increase the corrosion resistance.

  • Low-profile version allows near-flush fit to application.

  • Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out.

  • Large-flange version can be used as a spacer and can be supplied with an underhead seal.

  • Clamps two or more sheets of material together, within the grip range.

  • Closed end prevents the ingress of dirt and fluids into thread and electrical circuits.

  • Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.



    • Specifications:


  • Thread Sizes: M3-M10

  • Material: Steel, stainless steel, aluminium

  • Finishes steel: Zinc plated and clear trivalent passivated

  • Headforms: Low profile, countersunk, and large flange

  • Option: Closed end

  • Hole Size: Mainly imperial, soft metric for large-flange options
