0.51 - 3 mm Stainless Steel Nutsert Rivet Nuts - 09468-00514
Cód:
09468-00514
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

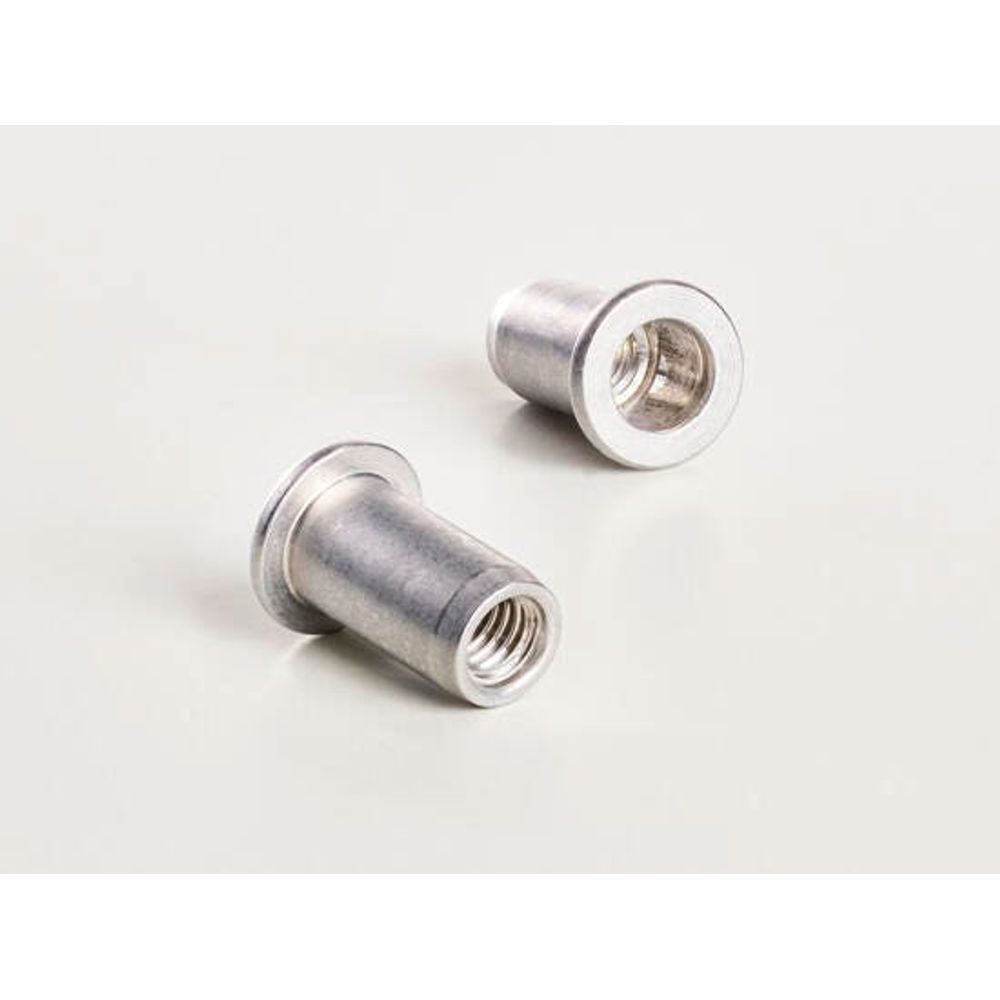

Nutsert Stainless Steel 0.51 - 3 mm Low Profile Round Rivet Nuts

Nutsert

Description0.51 - 3 mm Low Profile Round Stainless Steel Nutsert Rivet Nuts
Product familyNutsert
MaterialStainless Steel
Open / ClosedOpen
Head StyleLow Profile
Body StyleRound
ThreadM5
Min grip mm0.51
Max grip mm3.0
Min Hole Size mm7.14
Max Hole Size mm7.23
Max Body Length mm11.82
Max Flange Diameter mm8.26
Max Flange Thickness mm0.64

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code7318160060
JDE_Country_of_OriginTW
JDE_Lead_Time_Days182
JDE_Weight3.1967
Minimum Order Quantity2000
Features

    Fast Facts:


  • Can be used in very thin sheet materials from 0.50mm (0.02").

  • Blind hole, one-sided installation capability.

  • Provides a female thread-in application.

  • Can be installed in pre-coated or post-painted applications without damaging the surface.

  • Various platings available to increase the corrosion resistance.

  • Low-profile version allows near-flush fit to application.

  • Large-flange version provides greater load-bearing surface. Reinforces hole to prevent push out.

  • Large-flange version can be used as a spacer and can be supplied with an underhead seal.

  • Clamps two or more sheets of material together, within the grip range.

  • Closed end prevents the ingress of dirt and fluids into thread and electrical circuits.

  • Assembly applications include automotive, electrical engineering, electronic components, sheet metal, domestic appliances, and general light fabrication.



    • Specifications:


  • Thread Sizes: M3-M10

  • Material: Steel, stainless steel, aluminium

  • Finishes steel: Zinc plated and clear trivalent passivated

  • Headforms: Low profile, countersunk, and large flange

  • Option: Closed end

  • Hole Size: Mainly imperial, soft metric for large-flange options
