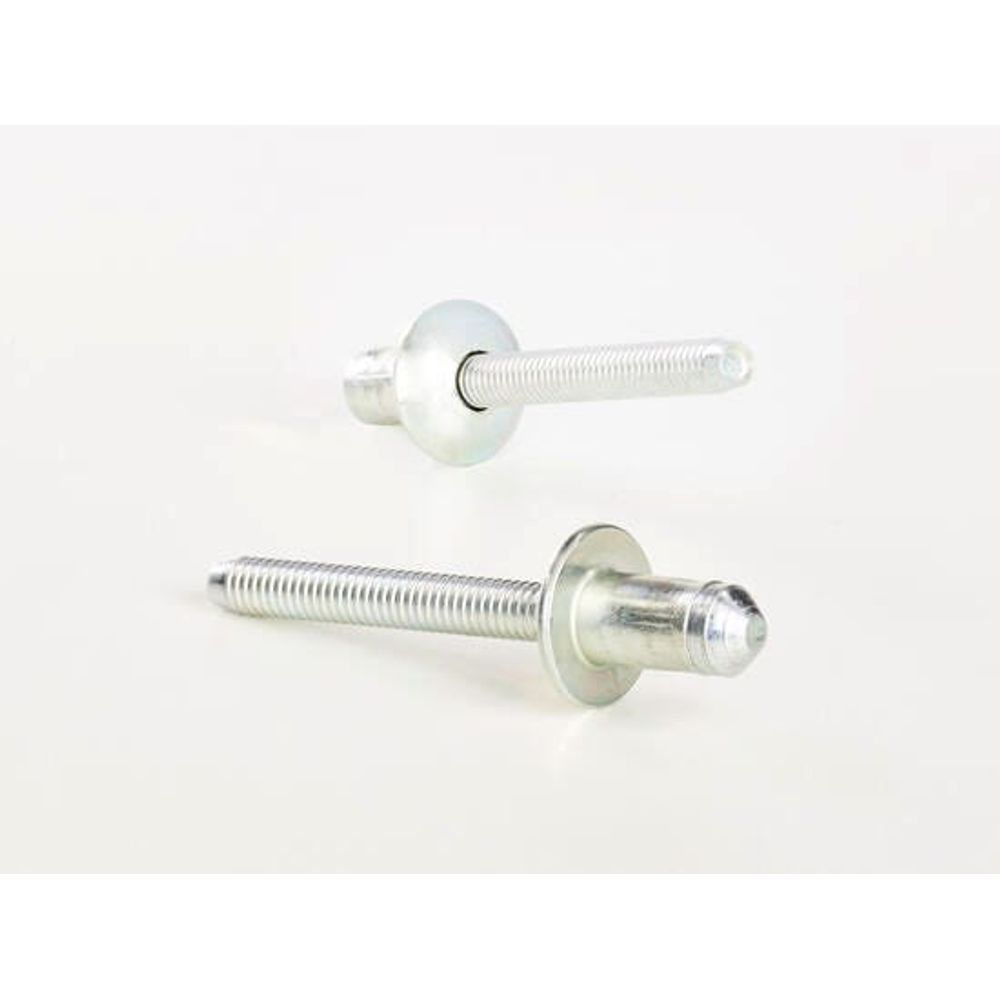

Hemlok 6.4mm [1/4] (8) Aluminum / Aluminum Structural Rivet Nuts - 02241-00814
Cód:
02241-00814
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

3.35-5.35 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Aluminum Body material and Aluminum Mandrel material

Hemlok

product name3.35-5.35 mm Aluminum/Aluminum Hemlok Structural Blind Rivets
nominal Diameter6.4mm [1/4] (8)
Body MaterialAluminium
Mandrel MaterialAluminium
Finish-BodyNatural
Finish- MandrelNatural
Head StyleDome
Min grip mm3.35
Max grip mm5.35
Min Grip Inches0.132
Max Grip Inches0.211
Min Hole Size mm6.7
Max Hole Size mm6.9
Min Holes Size Inches0.264
Max Hole Size Inches0.272
Max Secondary Protrusion mm15.55
Max Secondary Protrusion inches0.6122
Flange Diameter mm13.4
Flange Diameter inches0.527
Flange Thickness mm2.7
Flange Thickness Inches0.105
Shear kN6.2
Tensile kN2.7
BrandAvdel
Max Body Length mm15.55
Max Body Length Inches0.612
Nominal Diameter6.4mm [1/4]
Max Secondary Protrusion Inches0.612
Shear lbf1394.0
Tensile lbf600.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
JDE_Weight6.5
Minimum Order Quantity1500
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Retained stem.
  • Blind hole, one-sided installation capability.
  • Exceptional shear and tensile strength.
  • Large blind side bearing area against the rear sheet.
  • Interference lock formed by a splined stem.
  • Spreads the tail bearing/clamp load on the rear sheet.
  • Ideal for thin sheet materials.
  • Provides strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 6.4mm (¼")
  • Materials: Aluminium alloy, steel
  • Headform: Protruding
