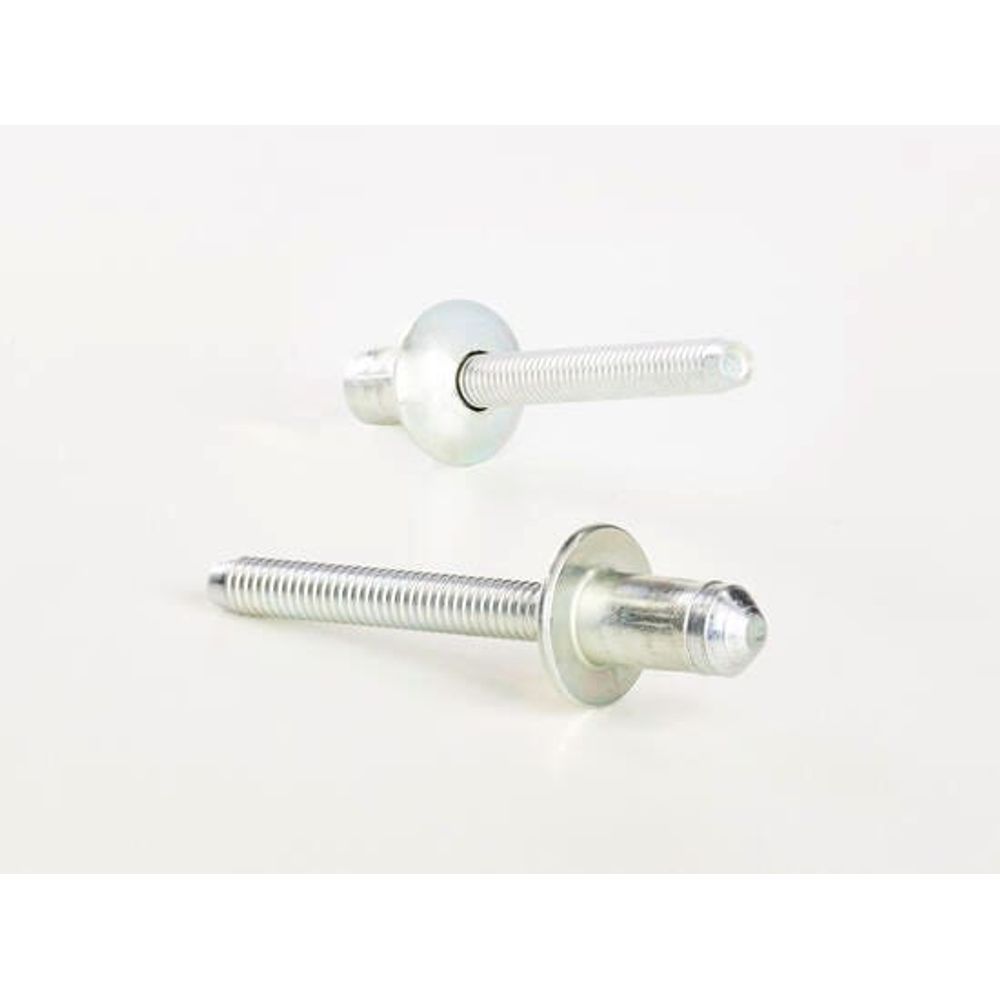

Hemlok 6.4mm [1/4] (8) Steel / Steel Structural Rivet - 02221-00819
Cód:
02221-00819
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

8.8-10.8 mm grip with 6.4mm [1/4] (8) Nominal Diameter based on Dome Head Style with Steel Body material and Steel Mandrel material

Hemlok

product name8.8-10.8 mm Steel/Steel Hemlok Structural Blind Rivets
nominal Diameter6.4mm [1/4] (8)
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc Plate
Head StyleDome
Min grip mm8.8
Max grip mm10.8
Min Grip Inches0.346
Max Grip Inches0.425
Min Hole Size mm6.7
Max Hole Size mm6.9
Min Holes Size Inches0.264
Max Hole Size Inches0.272
Max Secondary Protrusion mm21.0
Max Secondary Protrusion inches0.8264
Flange Diameter mm13.4
Flange Diameter inches0.527
Flange Thickness mm2.7
Flange Thickness Inches0.105
Shear kN16.0
Tensile kN8.8
BrandAvdel
Max Body Length mm21.0
Max Body Length Inches0.826
Nominal Diameter6.4mm [1/4]
Max Secondary Protrusion Inches0.826
Shear lbf3597.0
Tensile lbf1978.0

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginGB
JDE_Lead_Time_Days140
JDE_Weight21.48674
Minimum Order Quantity1500
Features

    Fast Facts:

  • Structural breakstem rivet.
  • Retained stem.
  • Blind hole, one-sided installation capability.
  • Exceptional shear and tensile strength.
  • Large blind side bearing area against the rear sheet.
  • Interference lock formed by a splined stem.
  • Spreads the tail bearing/clamp load on the rear sheet.
  • Ideal for thin sheet materials.
  • Provides strong, vibration resistant joints.
  • No damage, electrical problems, or rattling due to loose stems.
  • Breakstem fasteners can be customized to meet unique assembly requirements.

    • Specifications:
  • Sizes: 6.4mm (¼")
  • Materials: Aluminium alloy, steel
  • Headform: Protruding
