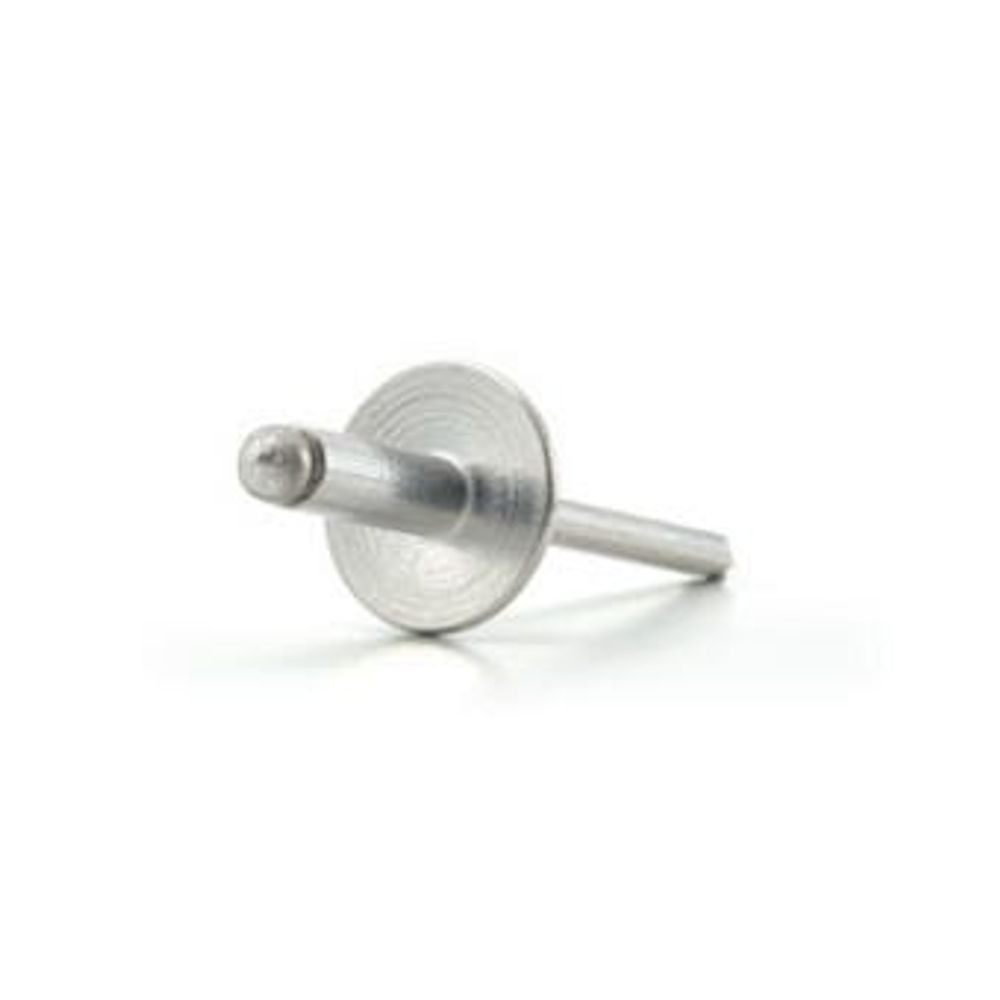

POP 4.0mm [5/32] Nickel Copper Alloy / Steel Open End Rivets - TLPD540BS
Cód:
TLPD540BS
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

5.7912-6.604 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Nickel Copper Alloy Body Material and Steel Mandrel Material

Open End

Product name5.7912 - 6.604 Grip in Nickel Copper Alloy/Steel, Open End Non-Structural Blind Rivets
Nominal Diameter mm4
Nominal Diameter Inches4.0mm [5/32]
Body MaterialNickel Copper Alloy
Mandrel MaterialSteel
Finish-BodyZinc Plated
Finish- MandrelZinc Plated
Head StyleDome
Min grip mm5.7912
Max grip mm6.603999999999999
Min Grip Inches0.228
Max Grip Inches0.26
Min Hole Size mm4.0894
Max Hole Size mm4.19
Min Holes Size Inches0.161
Max Hole Size Inches0.165
Max Body Length mm10.286999999999999
Max Body Length Inches0.405
Max Secondary Protrusion mm13.7668
Max Secondary Protrusion Inches0.542
Flange Diameter mm Max6.908799999999999
Flange Diameter inches Max0.272
Flange Thickness mm Max0.7874
Flange Thickness Inches Max0.031
Shear kN2.2018696995539475
Tensile kN2.998101368685577
Shear lbf495
Tensile lbf674

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginDE
JDE_Lead_Time_Days140
JDE_Weight4.89
Features
  • Design of the stem head ensures positive retention after installation

  • Wide range of diameters.

  • Wide range of lengths suitable for material thicknesses up to 26mm.

  • Countersunk (120°) heads available.

  • Break-head mandrels available in most sizes.

  • Blind hole, one-sided installation capability.
