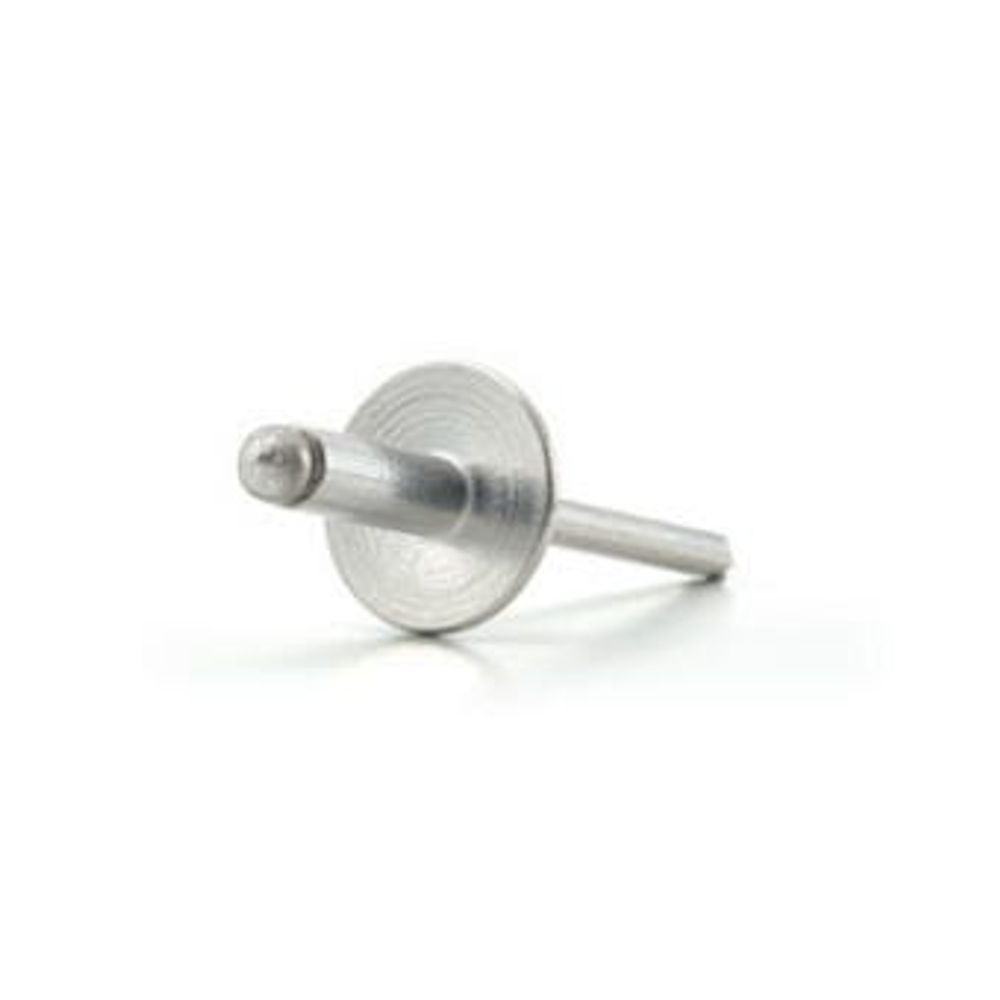

POP 4.8mm [3/16] Aluminum / Steel Open End Rivets - AD616BS
Cód:
AD616BS
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

22.2504-25.4 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Aluminum Body Material and Steel Mandrel Material

Open End

Product name22.2504 - 25.4 Grip in Aluminum/Steel, Open End Non-Structural Blind Rivets
Nominal Diameter mm4.8
Nominal Diameter Inches4.8mm [3/16]
Body MaterialAluminum
Mandrel MaterialSteel
Finish-BodyPlain
Finish- MandrelPlain or Protective Coat
Head StyleDome
Min grip mm22.2504
Max grip mm25.4
Min Grip Inches0.876
Max Grip Inches1.0
Min Hole Size mm4.876799999999999
Max Hole Size mm4.97
Min Holes Size Inches0.192
Max Hole Size Inches0.196
Max Body Length mm30.226
Max Body Length Inches1.19
Max Secondary Protrusion mm34.28999999999999
Max Secondary Protrusion Inches1.3499999999999999
Flange Diameter mm Max9.9822
Flange Diameter inches Max0.393
Flange Thickness mm Max1.4478
Flange Thickness Inches Max0.057
Shear kN1.9794586187909224
Tensile kN3.20271956298756
Shear lbf445
Tensile lbf720

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days56
JDE_Weight9.803
Minimum Order Quantity150000
Features
  • Design of the stem head ensures positive retention after installation

  • Wide range of diameters.

  • Wide range of lengths suitable for material thicknesses up to 26mm.

  • Countersunk (120°) heads available.

  • Break-head mandrels available in most sizes.

  • Blind hole, one-sided installation capability.
