Spiralock 16 Threads/Inch Carbide Thread Mill Cutter 1.22 Inch Neck Length - SPL21110

Cód:

SPL21110

Opinião dos Consumidores:0

Spiralock

Spiralock 16 Threads/Inch Carbide Thread Mill Cutter 1.22 Inch Neck Length - SPL21110

Cód:

SPL21110

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

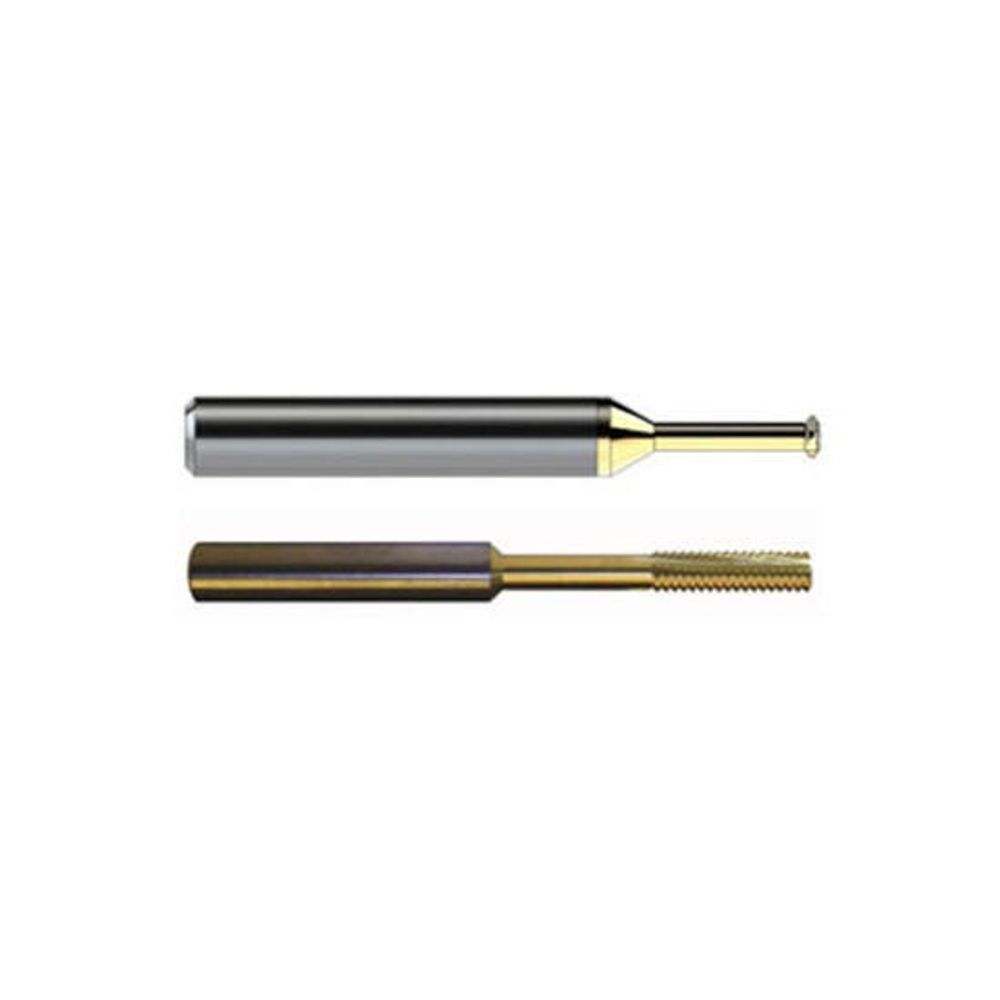

Spiralock 16 Threads/Inch Carbide Thread Mill Cutter 1.22 Inch Neck Length

Thread Mill Cutter

Material	Carbide
Brand	Spiralock
Pitch	16 Threads/Inch
Teeth Diameter	0.285 Inches
Shank Diameter/Size	0.3125 Inches
Coating	TiAlN
Neck Dia	0.215 Inches
Neck Length	1.22 Inches

default

JDE_HTS_Code	8207.40.0000
Features	Made to order Ability to adjust amount of material being removed by changing depth of cut Continuous spindle rotation – no need to stop and reverse the spindle when coming out of the hole Easy machining of difficult materials that produces short, controllable chips One cutter can produce varying diameters with a common thread pitch One tool for both right- and left-hand threads, as well as through or blind holes Partial thread removal at start of thread for cleaner assembly Full bottom threading with precise thread depth control Less cutting pressure for thin-walled workpieces Better thread surface finish quality and lower spindle torque Tool breakage does not necessarily result in workpiece rejection

JDE_HTS_Code

8207.40.0000

Features

Made to order

Ability to adjust amount of material being removed by changing depth of cut
Continuous spindle rotation – no need to stop and reverse the spindle when coming out of the hole
Easy machining of difficult materials that produces short, controllable chips
One cutter can produce varying diameters with a common thread pitch
One tool for both right- and left-hand threads, as well as through or blind holes
Partial thread removal at start of thread for cleaner assembly
Full bottom threading with precise thread depth control
Less cutting pressure for thin-walled workpieces
Better thread surface finish quality and lower spindle torque
Tool breakage does not necessarily result in workpiece rejection
