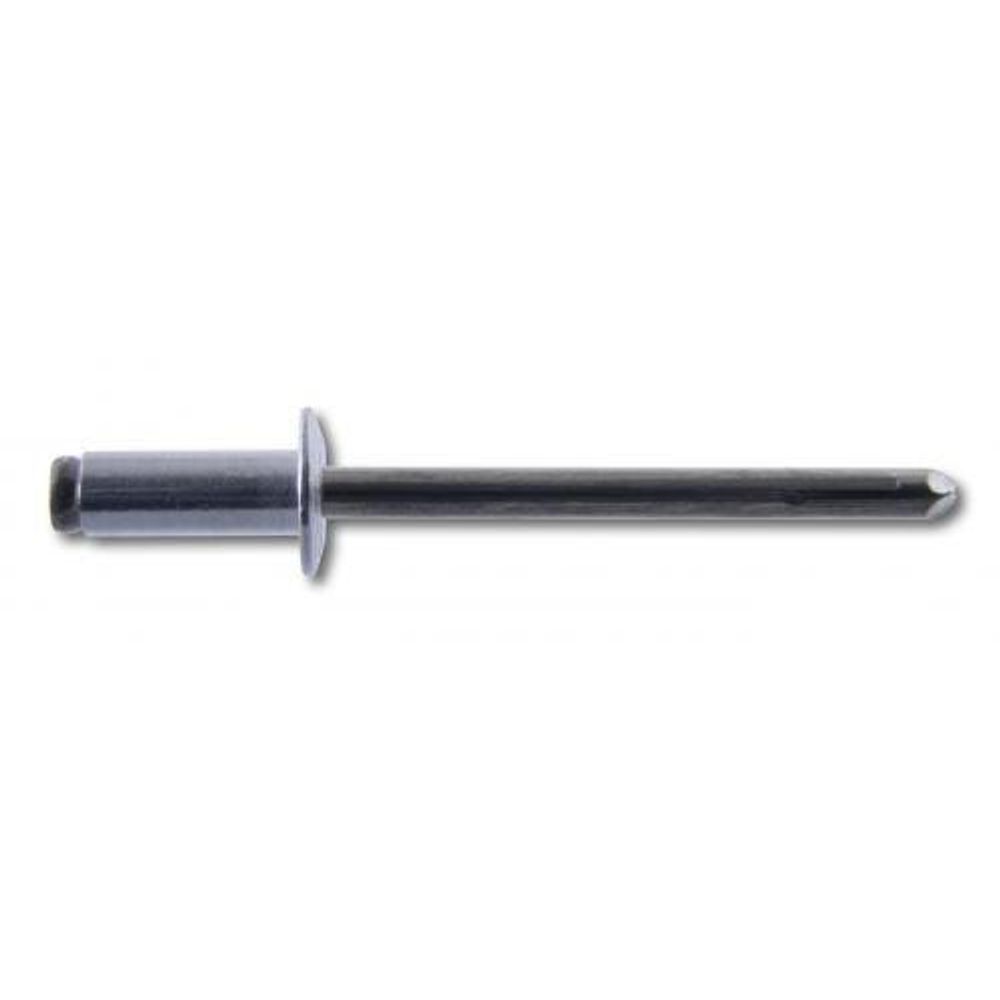

POP 4.0mm [5/32] Aluminum (1100 series) / Aluminum Soft Set Rivets - PAD54ABS
Cód:
PAD54ABS
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.78-6.35 mm Grip with 4 mm Nominal Diameter in Dome Head Style with Aluminum (1100 series) Body Material and Aluminum Mandrel Material

Soft Set

Product name4.78 - 6.35 Grip in Aluminum (1100 series)/Aluminum, Soft Set Non-Structural Blind Rivets
Nominal Diameter mm4.0
Nominal Diameter Inches4.0mm [5/32]
Body MaterialAluminium (1100 series)
Mandrel MaterialAluminium
Finish-BodyPlain
Finish- MandrelPlain
Head StyleDome
Min grip mm4.8
Max grip mm6.4
Min Grip Inches0.188
Max Grip Inches0.25
Min Hole Size mm4.06
Max Hole Size mm4.17
Min Holes Size Inches0.16
Max Hole Size Inches0.164
Max Body Length mm10.55
Max Body Length Inches0.415
Max Secondary Protrusion mm14.1
Max Secondary Protrusion Inches0.555
Flange Diameter mm Max8.4
Flange Diameter inches Max0.328
Flange Thickness mm Max1.19
Flange Thickness Inches Max0.047
Shear kN0.47
Tensile kN0.65
Shear lbf105
Tensile lbf145

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days56
JDE_Weight1.831
Minimum Order Quantity56000
Features

    Fast Facts:


  • Designed for soft or brittle materials.

  • Incorporates a special aluminum alloy.

  • Low clamping force.

  • Blind hole, one-sided installation capability.

  • Assembly applications include office furniture, mobile homes, public transportation, plastic components, electrical engineering, and lighting.



    • Specifications:


  • Sizes: .118" – 3/16" (3.0 mm – 4.8 mm)

  • Materials: Aluminum

  • Head Styles: Dome, Countersunk
