WELD STUD_T5 - N794608
Cód:
N794608
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

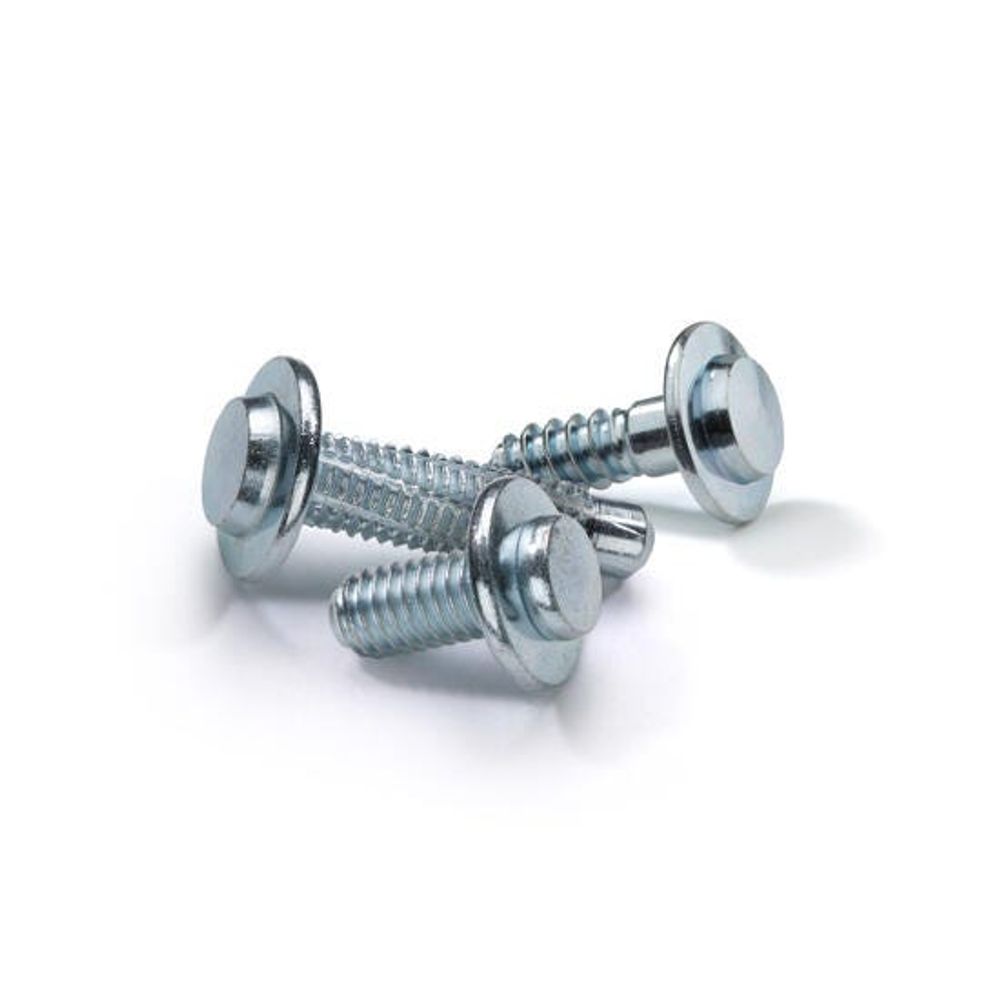

WELD STUD_T5

Stud - Threaded

MaterialSteel
Material Class6.8
Weld FlangeStandard
ThreadCoarse
Shaft / Thread Ø5.0
Shaft Length13.65
Total Length14.5
Head Ø7.2
Total Height Flange / Head0.85
Dog PointNo

default

Features

    Tucker weld studs with Xmas tree thread/


  • The Xmas tree thread was developed for easy, fast manual assembly of plastic parts. Due to its special shape parts, assembly is possible with low pressing forces. The use of plastic nuts with moulded threads or fastening elements with plastic stud collet are now used throughout the automotive industry in Europe.

    • Tucker weld studs with metric thread with/without paint cleaning thread


  • Tucker weld studs with metric thread are used for positioning metal nuts.

  • Fastening components or ground connection are typical uses. The weld stud can be fitted with a paint clearing thread if required. The paint clearing thread causes a large part of KTL and paint to run down the stud shaft so that the metal nut can be easily positioned during final assembly.

    • Tucker weld stud with thread without increase/


  • A thread without increase is used for fastening if the element to be mounted will not be removed again.
