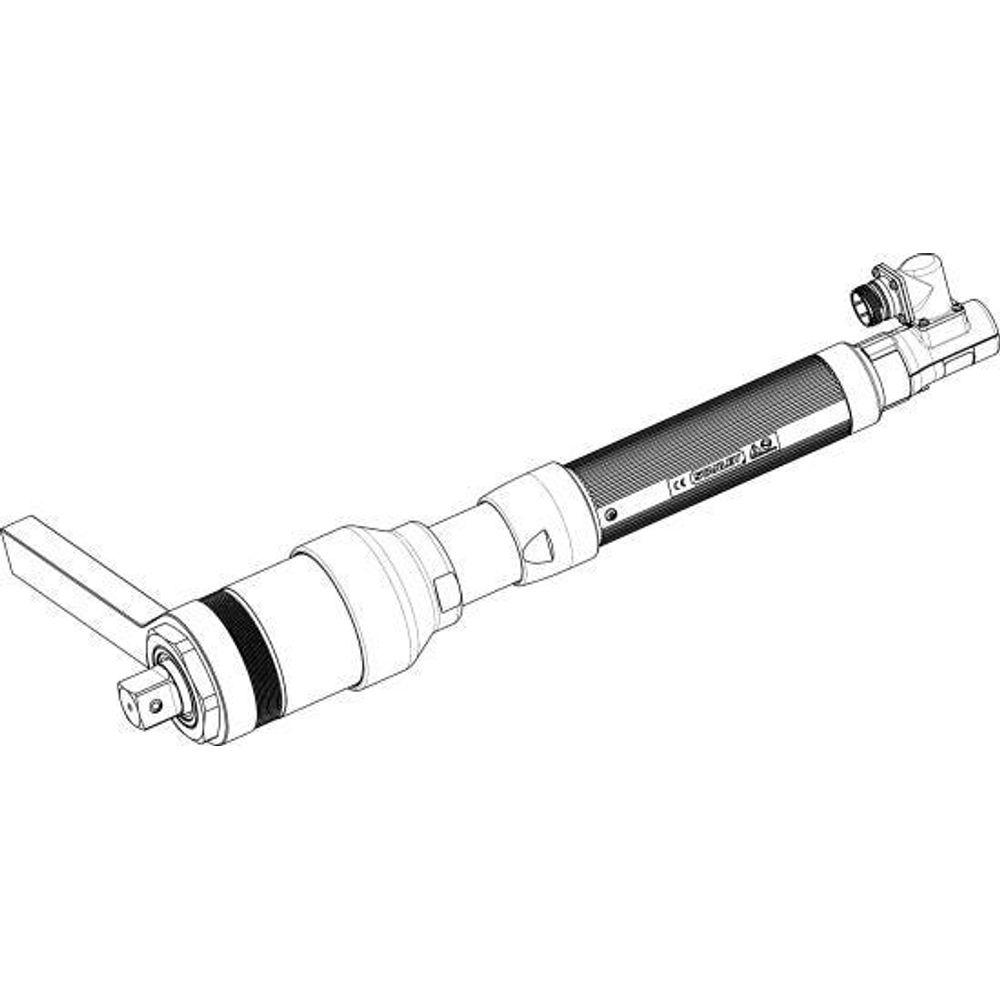

EB55MB5-1100 EB Series Transducerized Nutrunner

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

EB55MB5-1100 Fixtured Corded Nutrunner With The Following Features: - Rated For 110 - 1100 NM With A Recomended Working Range Of 220 - 880 NM - 8-80 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Direct Drive - Mult Handle For Remote Start Operation

Download 3D Drawings

Download 2D Drawings

EB Series Transducerized Nutrunners

Power SourceCorded
External Torque Scatter RatingCm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
Torque MeasurementTransducer
Drive TypeDirect Drive
Handle TypeFixtured
Output TypeStraight
Recommended Working Range
Useful Tool Range110 - 1100 NM
Max Torque1100.0
Min Speed (RPM)8.0
Max Speed (RPM)80.0
Configurable OptionsContact STANLEY for custom options
