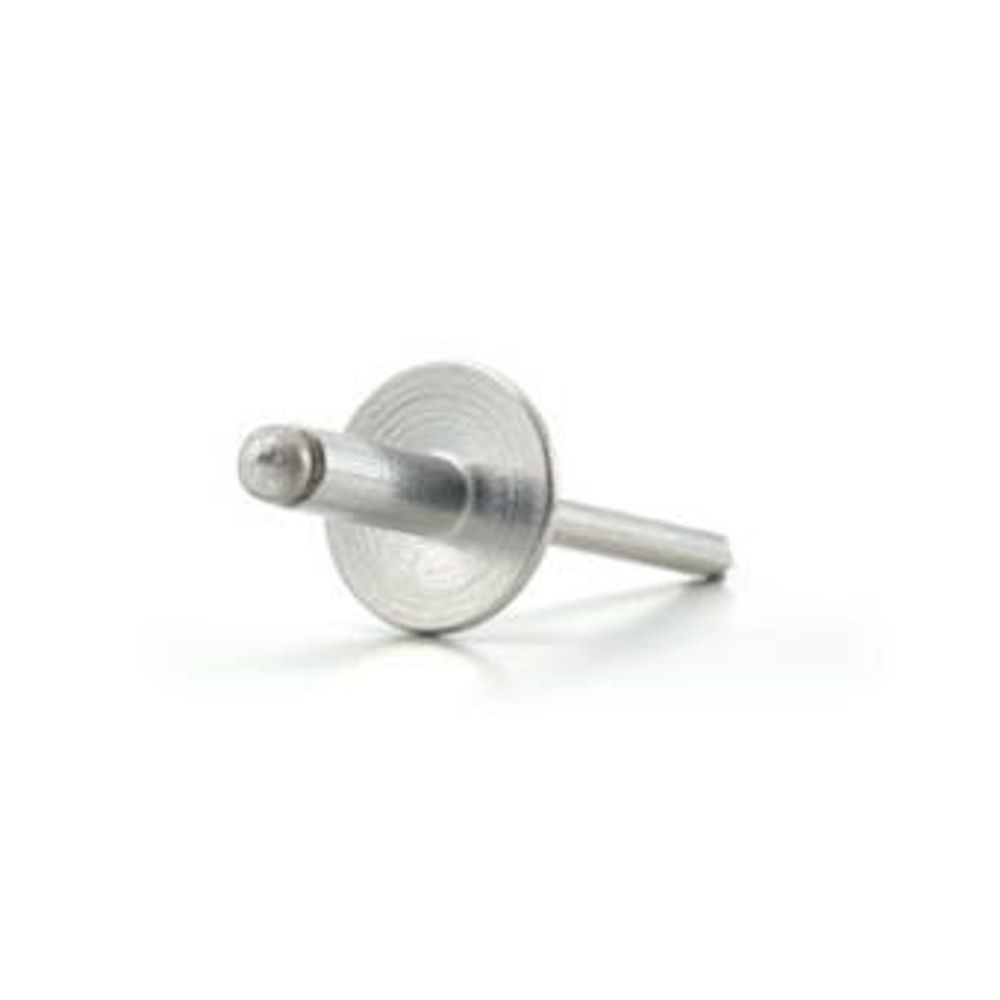

POP 3.2mm [1/8] Aluminum / Aluminum Open End Rivets - AD44ABSLF
Cód:
AD44ABSLF
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

4.7752-6.35 mm Grip with 3.2 mm Nominal Diameter in Dome, Large Flange Head Style with Aluminum Body Material and Aluminum Mandrel Material

Open End

Product name4.7752 - 6.35 Grip in Aluminum/Aluminum, Open End Non-Structural Blind Rivets
Nominal Diameter mm3.2
Nominal Diameter Inches3.2mm [1/8]
Body MaterialAluminium
Mandrel MaterialAluminium
Finish-BodyPlain
Finish- MandrelPlain
Head StyleDome, Large Flange
Min grip mm4.8
Max grip mm6.35
Min Grip Inches0.188
Max Grip Inches0.25
Min Hole Size mm3.28
Max Hole Size mm3.38
Min Holes Size Inches0.129
Max Hole Size Inches0.133
Max Body Length mm9.95
Max Body Length Inches0.39
Max Secondary Protrusion mm12.95
Max Secondary Protrusion Inches0.51
Flange Diameter mm Max9.95
Flange Diameter inches Max0.39
Flange Thickness mm Max1.65
Flange Thickness Inches Max0.065
Shear kN0.69
Tensile kN1.05
Shear lbf155
Tensile lbf235

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days140
JDE_Weight1.23
Minimum Order Quantity8000
Features
  • Design of the stem head ensures positive retention after installation

  • Wide range of diameters.

  • Wide range of lengths suitable for material thicknesses up to 26mm.

  • Countersunk (120°) heads available.

  • Break-head mandrels available in most sizes.

  • Blind hole, one-sided installation capability.
