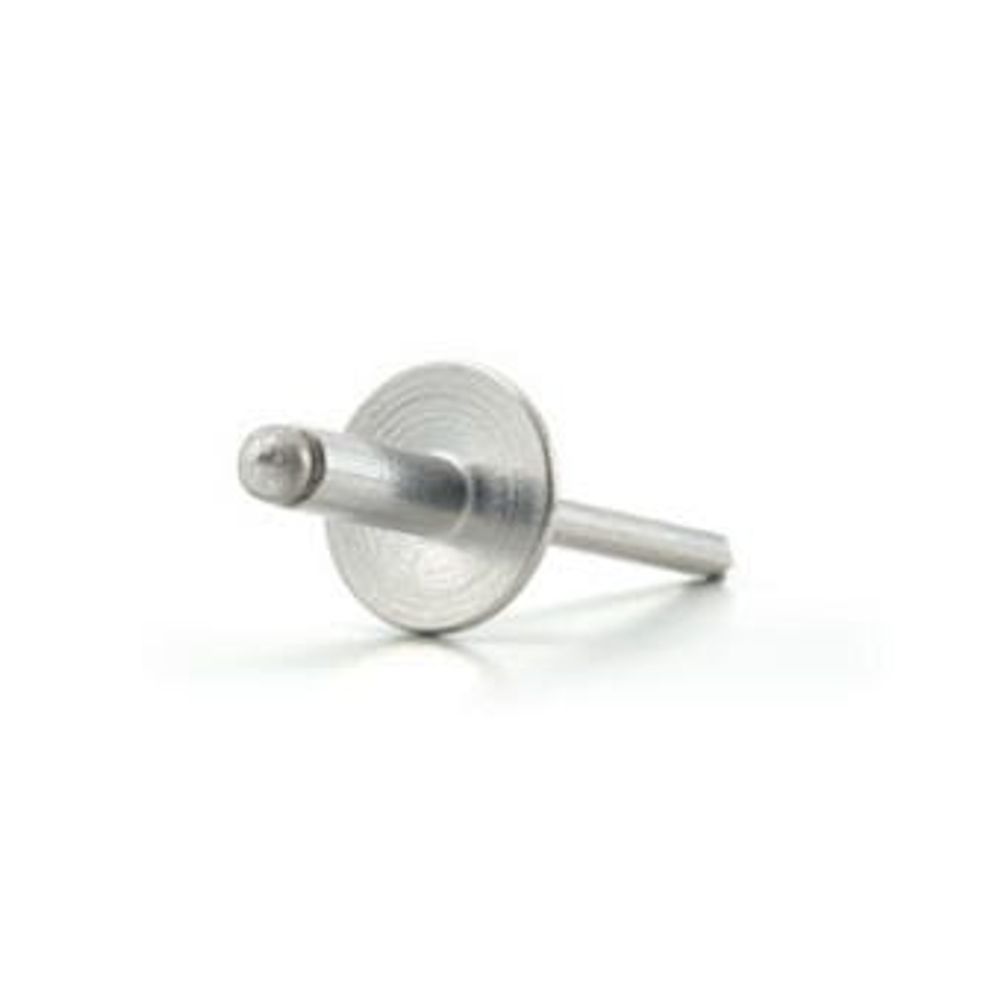

AD41ABS S5C - 88904
Cód:
88904
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Nominal Diameter mm | 3.2 |
|---|---|
| Nominal Diameter Inches | 3.2mm [1/8] |
| Body Material | Aluminum |
| Mandrel Material | Aluminum |
| Finish-Body | Plain |
| Finish- Mandrel | Plain |
| Head Style | Dome |
| Min grip mm | 0.79 |
| Max grip mm | 1.57 |
| Min Grip Inches | 0.031 |
| Max Grip Inches | 0.062 |
| Min Hole Size mm | 3.2766 |
| Max Hole Size mm | 3.38 |
| Min Holes Size Inches | 0.129 |
| Max Hole Size Inches | 0.133 |
| Max Body Length mm | 5.16 |
| Max Body Length Inches | 0.203 |
| Max Secondary Protrusion mm | 8.2 |
| Max Secondary Protrusion Inches | 0.323 |
| Flange Diameter mm Max | 6.65 |
| Flange Diameter inches Max | 0.262 |
| Flange Thickness mm Max | 1.02 |
| Flange Thickness Inches Max | 0.04 |
| Shear kN | 0.689 |
| Tensile kN | 1.045 |
| Shear lbf | 155 |
| Tensile lbf | 235 |
| Bulk Pack | AD41ABS |
| SmallPack | True |
| Minimum Order Quantity | 10000 |
|---|
