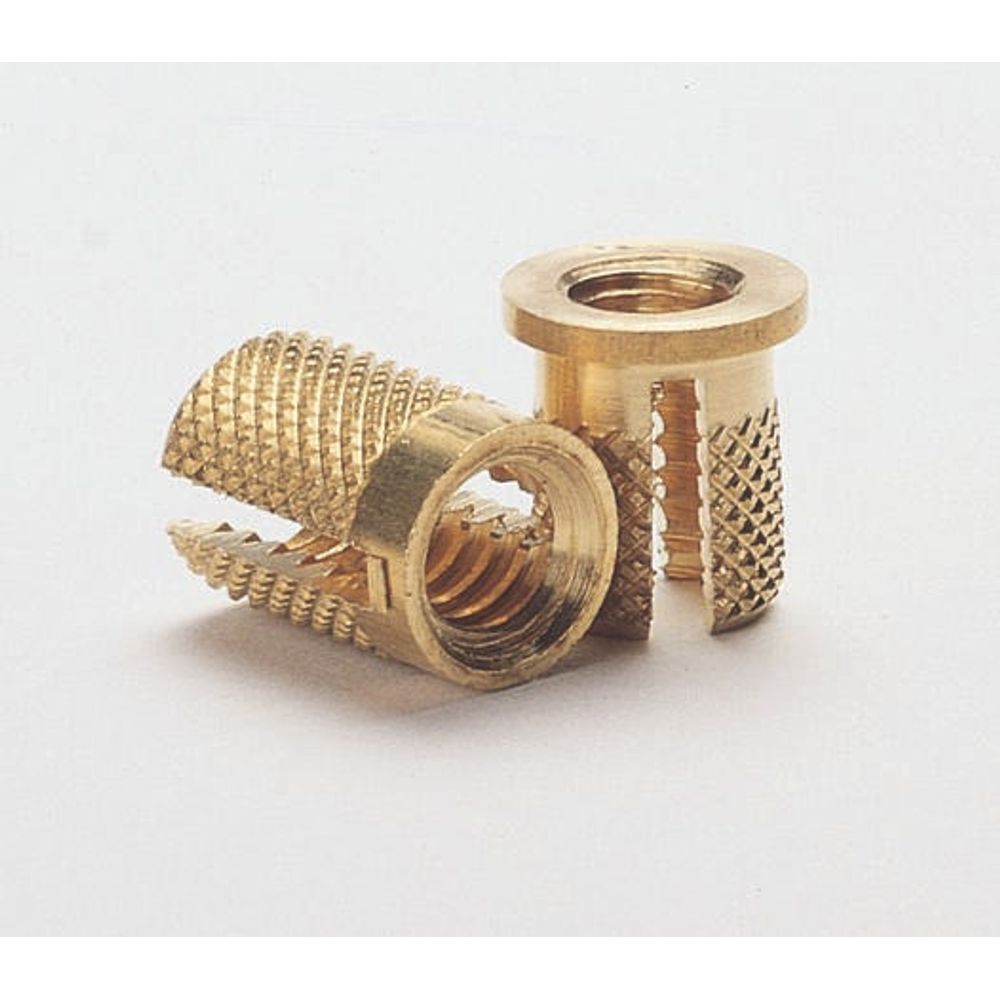

Dodge 4-40 Spred-Lok Flanged Solid Inserts .188 Inch Length - 74215-04
Cód:
74215-04
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Brand | Dodge |
|---|---|
| Thread Size | 4-40 Inches |
| Length | .188 Inch |
| Body Diameter | .166 Inch |
| Flange Diameter | .219 Inch |
| Flange Thickness | .022 Inch |
| Hole Diameter Thermoplastic | .156 Inch |
| Minimum Boss Diameter | .332 Inch |
| Counterbore Diameter | .235 Inch |
| Counterbore Depth | .027 Inch |
| JDE_Weight_UOM | LB |
|---|---|
| JDE_Weight_Per_UOM | M |
| JDE_HTS_Code | 7415390000 |
| JDE_Country_of_Origin | US |
| JDE_Lead_Time_Days | 84 |
| JDE_Weight | 0.96132 |
| Features |
Screw expands insert, locking it into place. |
