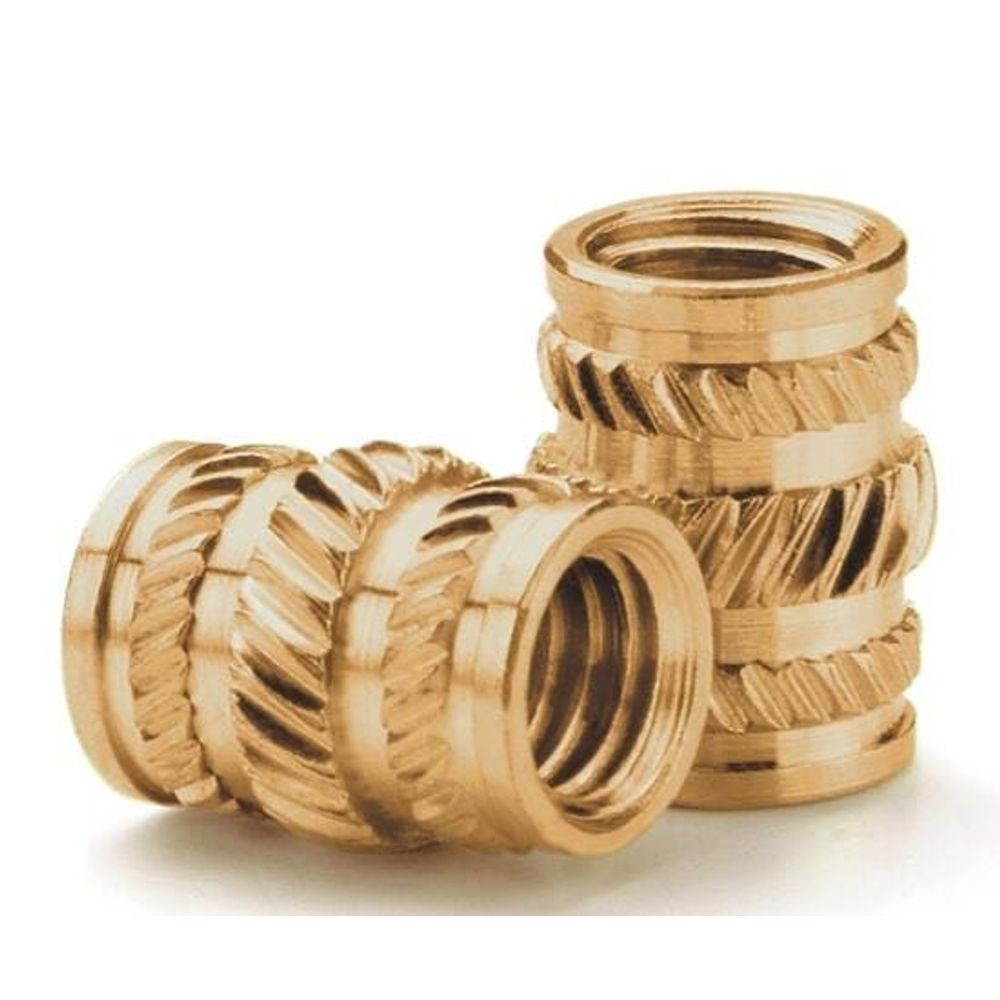

Dodge 4-40 Ultrasert® II Screw-LocK Solid Inserts .219 Inch Length

Descrição do Produto

Brand	Dodge
Thread Size	4-40 Inches
Length	.219 Inch
Locking Feature	Screw-Lock
Body Diameter	.172 Inch
Pilot Diameter	.146 Inch
Hole Diameter Thermoplastic	.141 Inch
Minimum Boss Diameter	.344 Inch
Counterbore Diameter	.159 Inch

JDE_Weight_UOM	LB
JDE_Weight_Per_UOM	M
JDE_HTS_Code	7415390000
JDE_Country_of_Origin	US
JDE_Lead_Time_Days	56
JDE_Weight	0.85956
Features	Two lengths to choose from for increased design flexibility Diagonal knurls and undercuts provide superior assembly strength Excellent design for automated systems Installed ultrasonically or with heat Available in a wide range of options Vibration-proof properties Allows for high serviceability
