MP M16 X 50.0MM BW MS - 102600010

Cód:

102600010

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

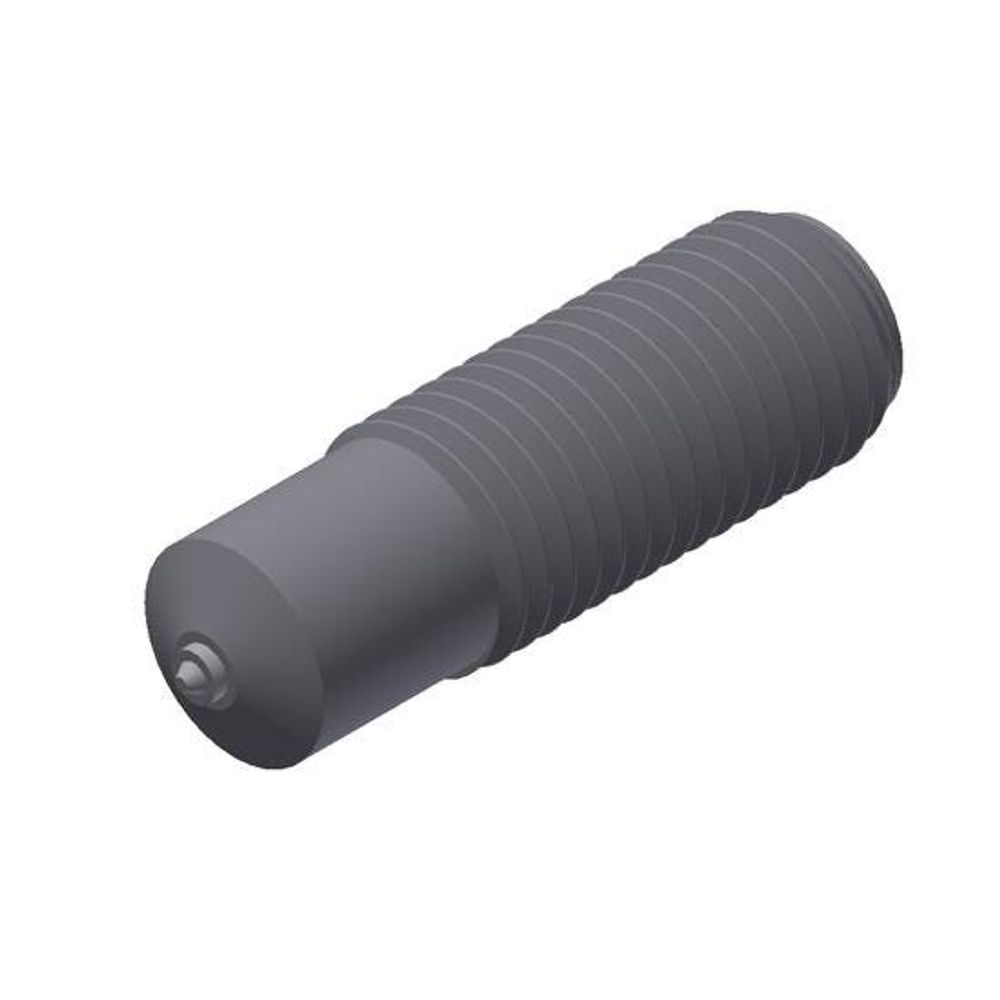

MP M16 X 50.0MM BW MS

MP - Partially Threaded

Height	16 mm
Width	16 mm
Length	50 mm
Weight	0.146 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	16 mm
Weld Base Dia	14.6 mm
Overall Length	50 mm
Weld Base Length	6 mm
Burn Off	4 mm
Thread Size	M16 metric
Flash Dia	20.5 mm
Flash Thickness	7 mm
Related Ferrule	100101039.0
Related Chuck	500001016.0
Related Grip	501001011.0
Related Foot	502001138.0
Related HD Foot	502001002.0

default

Features	Nelson CFL and MD fully threaded studs have a short length of pitch diameter weld base. This length is melted off during the stud welding process so that usable thread extends down to the top of the weld flash on installed studs. Nelson CPL and MP partially threaded studs are recommended for fastening applications to heavy gauge base materials where development of the full fastener strength is needed. These partially threaded studs have a pitch diameter weld base and are available in thread diameters of 1/4-20 through 1-8 (M6 through M24) with unlimited length. Nelson CJL and MR reduced base threaded studs have a smaller weld base diameter than that of Nelson Pitch Diameter. Nelson PFL paint groove studs feature helical grooves running through the threads axially along the length of the stud. These grooves allow the application of paint without the use of a protective cover, as the bulk of the paint flows down the grooves and does not become trapped in the threads. Nelson HBL the full diameter weld base gives a larger cross-sectional area through the weld zone than on the CPL pitch diameter studs. The increased area is desirable with special stud alloys or when studs are to be welded to specialty base materials.

Features

Nelson CFL and MD fully threaded studs have a short length of pitch diameter weld base. This length is melted off during the stud welding process so that usable thread extends down to the top of the weld flash on installed studs.

Nelson CPL and MP partially threaded studs are recommended for fastening applications to heavy gauge base materials where development of the full fastener strength is needed. These partially threaded studs have a pitch diameter weld base and are available in thread diameters of 1/4-20 through 1-8 (M6 through M24) with unlimited length.

Nelson CJL and MR reduced base threaded studs have a smaller weld base diameter than that of Nelson Pitch Diameter.

Nelson PFL paint groove studs feature helical grooves running through the threads axially along the length of the stud. These grooves allow the application of paint without the use of a protective cover, as the bulk of the paint flows down the grooves and does not become trapped in the threads.

Nelson HBL the full diameter weld base gives a larger cross-sectional area through the weld zone than on the CPL pitch diameter studs. The increased area is desirable with special stud alloys or when studs are to be welded to specialty base materials.
