ANA 12 GA X 30MM 5356 A - 102211019

Cód:

102211019

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

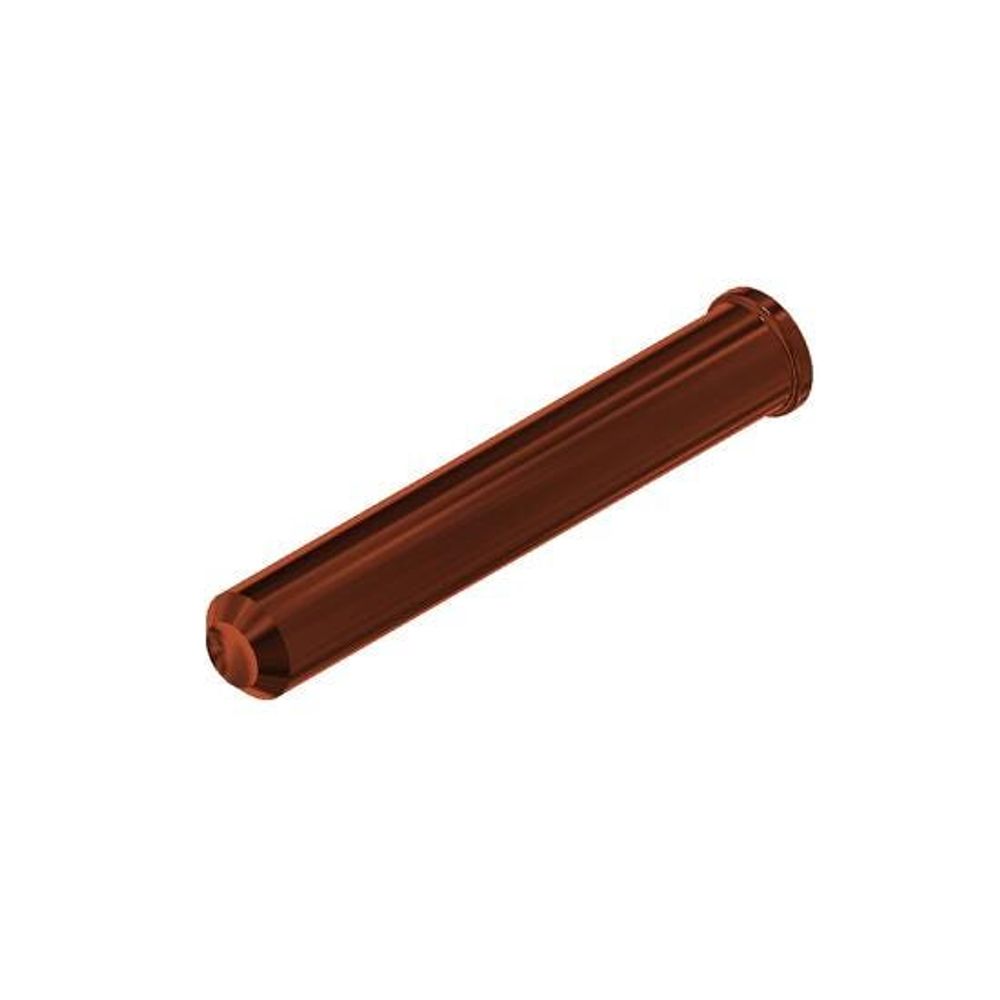

ANA 12 GA X 30MM 5356 A

ANA - Small Flange, Unthreaded, Aluminum

Height	0.17 inches
Width	0.17 inches
Length	30 mm
Weight	0.001 Lb
Brand	Nelson
Material (O)	Aluminum
Stud Dia	0.105 inches
Weld Base Dia	0.17 inches
Overall Length	30 mm
Weld Base Length	0.06 inches
Related Chuck	500001135.0
Related Grip	501001004.0
Related Foot	502001137.0

default

Features	1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet. 2. Standard studs come in lengths up to 1.25”, 30mm. 3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts. 4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).

Features

1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet.

2. Standard studs come in lengths up to 1.25”, 30mm.
3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts.
4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).
