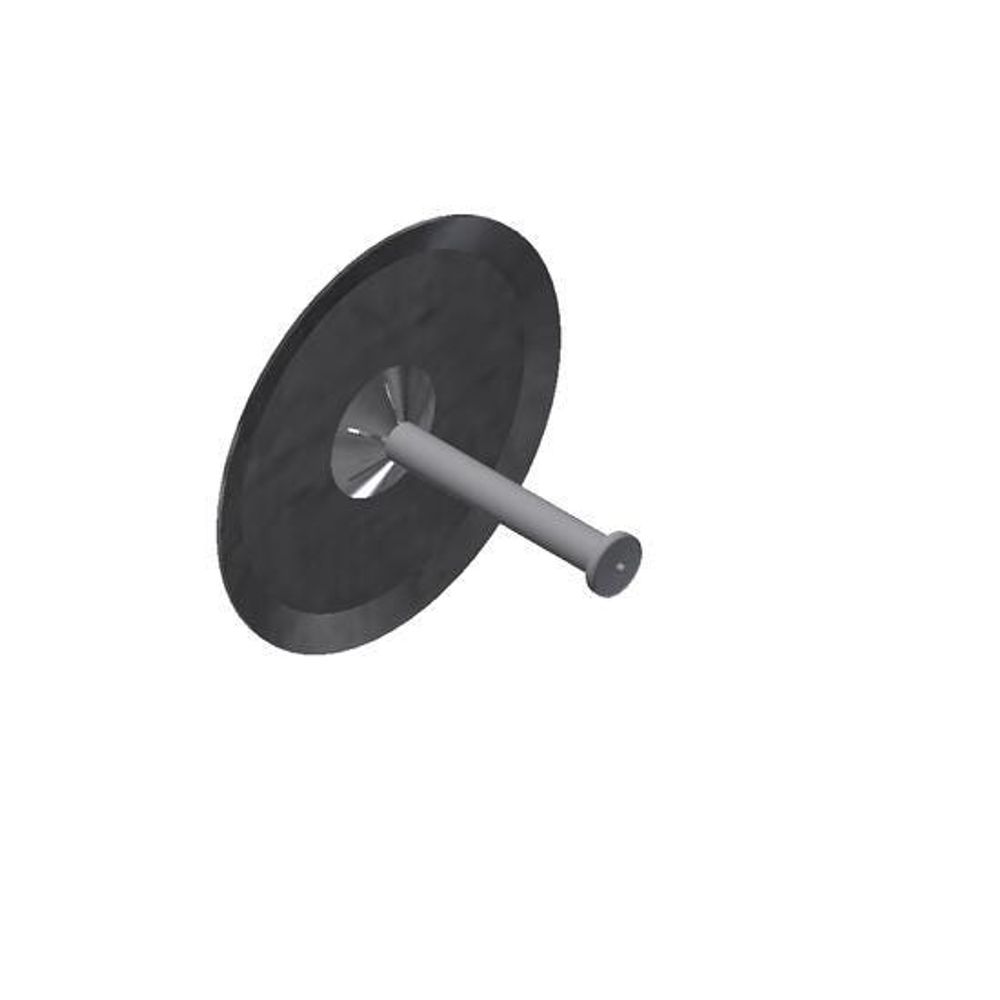

CHP 12 GA X 6 MS SPEC B - 102124008
Cód:
102124008
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.105 inches |
|---|---|
| Width | 0.105 inches |
| Length | 6 inches |
| Weight | 0.021 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.105 inches |
| Head Dia | 1.187 inches |
| Overall Length | 6 inches |
| Head Thickness | 0.021 inches |
| Related Chuck | 500015094.0 |
| Related Foot | 502001347.0 |
| Chuck Screw | 503011034.0 |
| Features | 1. Nelson CHP insulation pins, in addition to securing the fireproofing, the pins also act as a reference gauge for the thickness of fireproofing to be applied. 2. When used in combination with Speed Clips, the resultant system is a simple, inexpensive, and efficient method of securing insulation to metal backings. Stud length should be longer than the insulation thickness to aid in securing Speed Clips. 3. insulation pins have a weld tip designed for the Capacitor Discharge welding process, but they may also be welded with the Short Cycle Drawn Arc weld process. |
|---|
