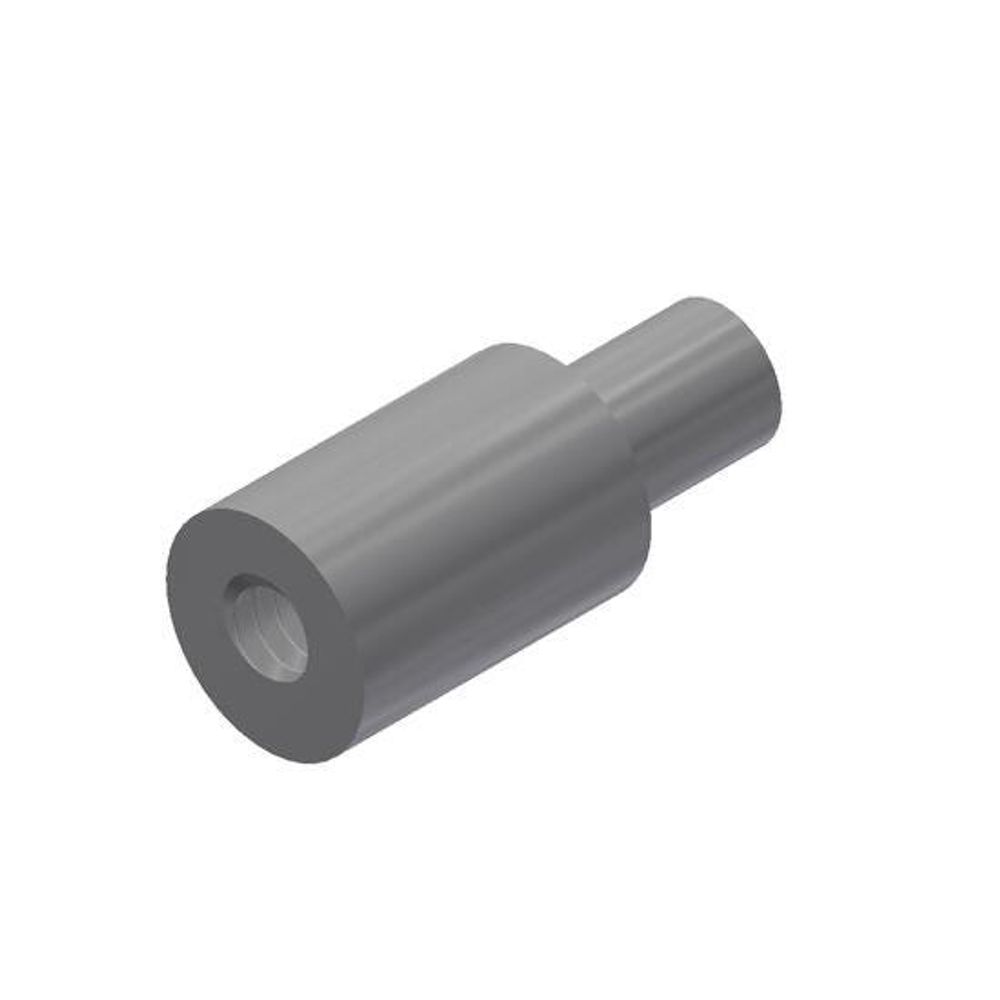

TXL 5/8 X 1 1/8 SS18-8 1/2-13 - 102104084
Cód:
102104084
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.625 inches |
|---|---|
| Width | 0.625 inches |
| Length | 1.125 inches |
| Weight | 0.052 Lb |
| Brand | Nelson |
| Material (O) | Stainless Steel |
| Stud Dia | 0.625 inches |
| Weld Base Dia | 0.437 inches |
| Overall Length | 1.125 inches |
| Weld Base Length | 0.203 inches |
| Burn Off | 0.125 inches |
| Tap Size | 1/2-13 UN/UNF |
| Tap Length | 0.5 inches |
| Related Ferrule | 100108008.0 |
| Related Chuck | 500001016.0 |
| Related Grip | 501010019.0 |
| Related Foot | 502001138.0 |
| Related HD Foot | 502001002.0 |
| Features | 1. Standard TBL studs have internal UNC-2B coarse series threads. Internally tapped studs can also be supplied with UNF-2B fine threads. Studs with fine threads are called PBL studs. 2. When maximizing the stud diameter to tap ratio, the stud can also serve as a standoff post. 3. Reduced base studs are available but depth of tap drill point should not pass below shoulder of reduced diameter shoulder so that stud strength is not compromised. |
|---|
