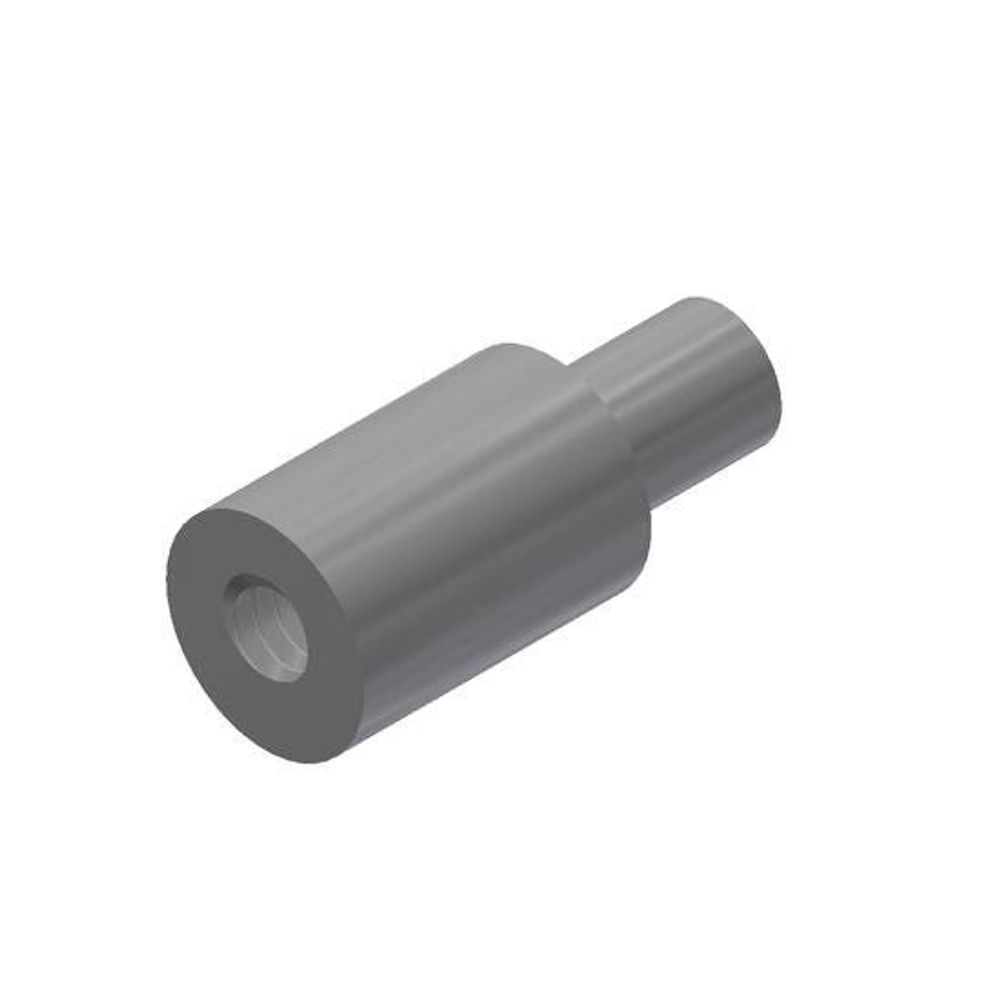

TXX 3/4 X 1 5/8 MS 3/8-16 X - 102104043
Cód:
102104043
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.75 inches |
|---|---|
| Width | 0.75 inches |
| Length | 1.625 inches |
| Weight | 0.177 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.75 inches |
| Weld Base Dia | 0.375 inches |
| Overall Length | 1.625 inches |
| Weld Base Length | 0.372 inches |
| Related HD Foot | 502001001.0 |
| Related Foot | 502001137.0 |
| Related Grip | 501001008.0 |
| Related Chuck | 500001014.0 |
| Related Ferrule | 100101031.0 |
| Tap Length | 0.625 inches |
| Tap Size | 3/8-16 UN/UNF |
| Burn Off | 0.125 inches |
| Features | 1. Standard TBL studs have internal UNC-2B coarse series threads. Internally tapped studs can also be supplied with UNF-2B fine threads. Studs with fine threads are called PBL studs. 2. When maximizing the stud diameter to tap ratio, the stud can also serve as a standoff post. 3. Reduced base studs are available but depth of tap drill point should not pass below shoulder of reduced diameter shoulder so that stud strength is not compromised. |
|---|
