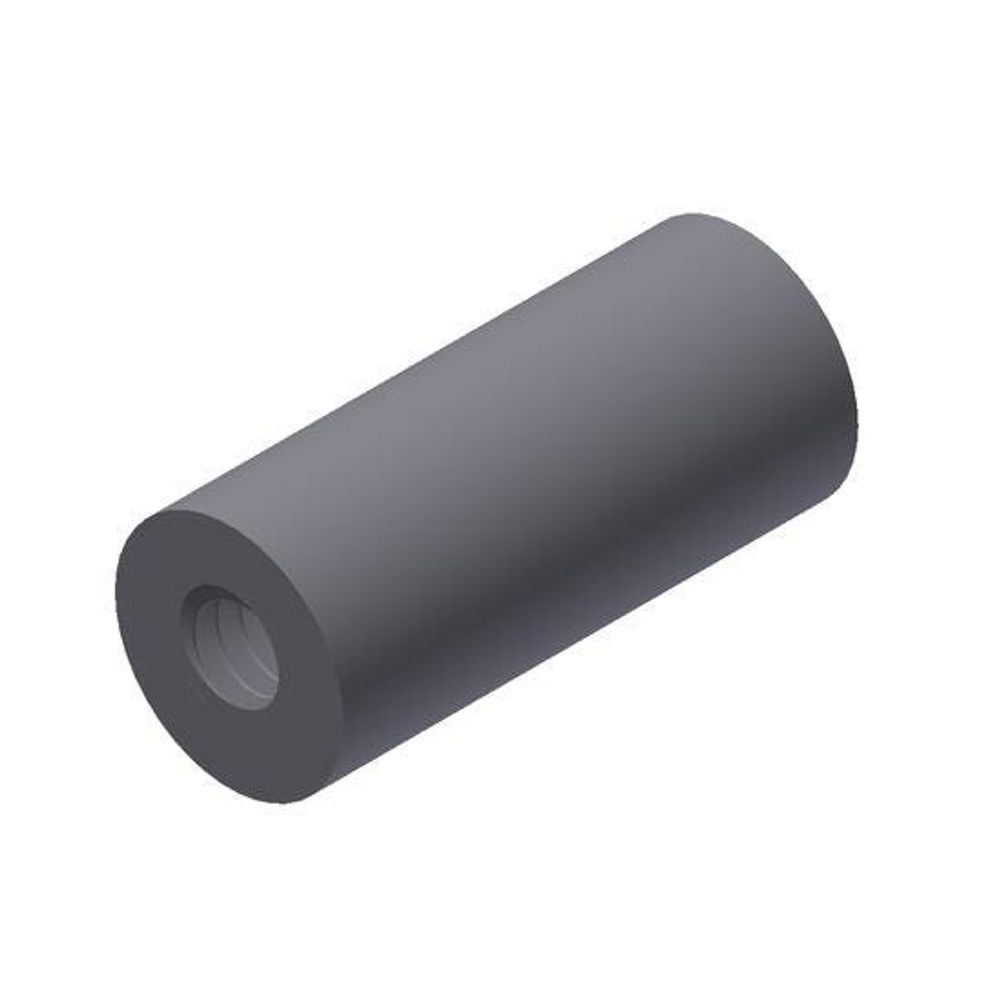

TBL 19MM X 29.2 SS18-8 (45 WB) - 102103421
Cód:
102103421
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 19 mm |
|---|---|
| Width | 19 mm |
| Length | 29.2 mm |
| Weight | 0.104 Lb |
| Brand | Nelson |
| Material (O) | Stainless Steel |
| Stud Dia | 19 mm |
| Weld Base Dia | 19 mm |
| Overall Length | 29.2 mm |
| Burn Off | 5 mm |
| Tap Size | M12 metric |
| Tap Length | 16 mm |
| Min Base Length | 6 mm |
| Flash Dia | 25 mm |
| Flash Thickness | 7 mm |
| Related Ferrule | 100101152.0 |
| Related Chuck | 500001018.0 |
| Related Grip | 501001014.0 |
| Related HD Foot | 502001002.0 |
| Features | 1. Standard TBL studs have internal UNC-2B coarse series threads. Internally tapped studs can also be supplied with UNF-2B fine threads. Studs with fine threads are called PBL studs. 2. When maximizing the stud diameter to tap ratio, the stud can also serve as a standoff post. 3. Reduced base studs are available but depth of tap drill point should not pass below shoulder of reduced diameter shoulder so that stud strength is not compromised. |
|---|
