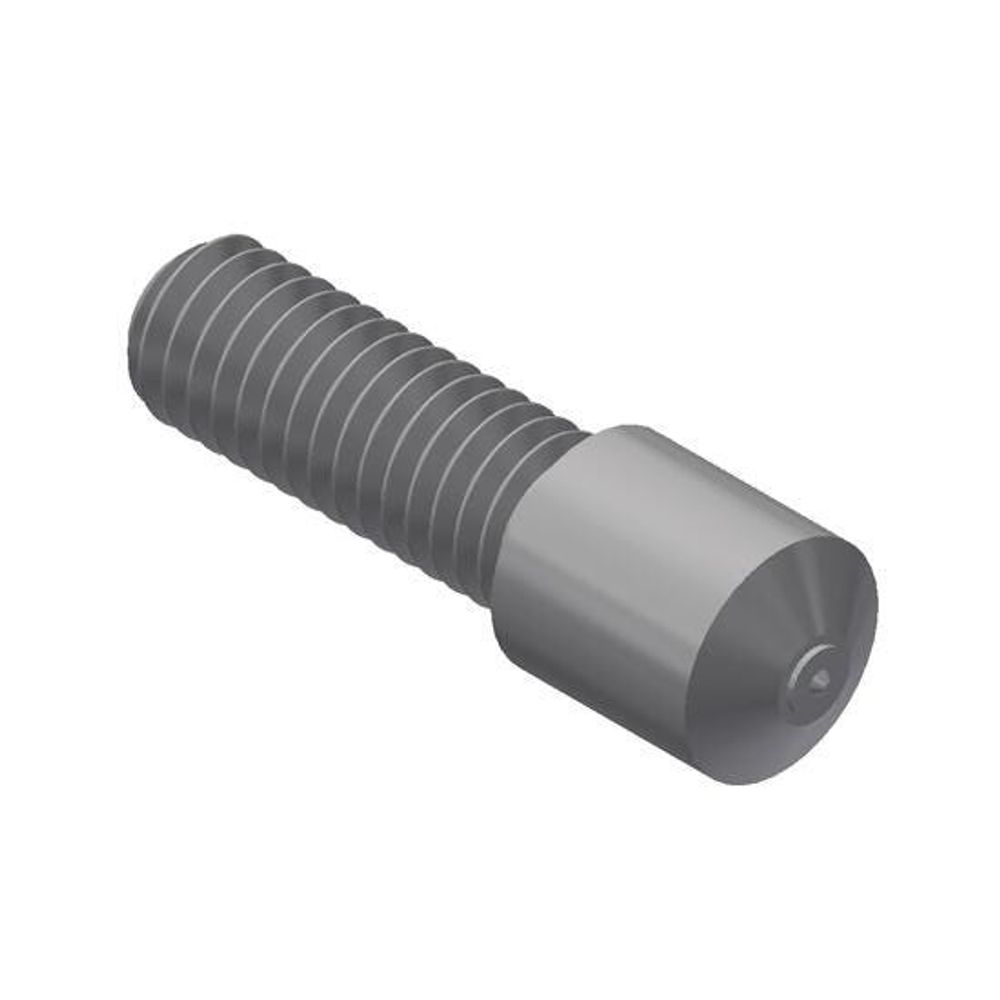

SBL 3/4 X 1 MS ZNPL 5/8-11 X - 102093132
Cód:
102093132
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.75 inches |
|---|---|
| Width | 0.75 inches |
| Length | 2 inches |
| Weight | 0.212 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.75 inches |
| Weld Base Dia | 0.75 inches |
| Overall Length | 2 inches |
| Weld Base Length | 1 inches |
| Burn Off | 0.187 inches |
| Thread Size | 5/8-11 UN/UNF |
| Flash Dia | 1.062 inches |
| Flash Thickness | 0.25 inches |
| Related Ferrule | 100101125.0 |
| Related Chuck | 500001018.0 |
| Related Grip | 501001014.0 |
| Related HD Foot | 502001002.0 |
| Features |
1. Studs are available in Low Carbon Mild Steel and 18-8 Stainless Steel. Material selection is dependent on anticipated service temperature range. |
|---|
