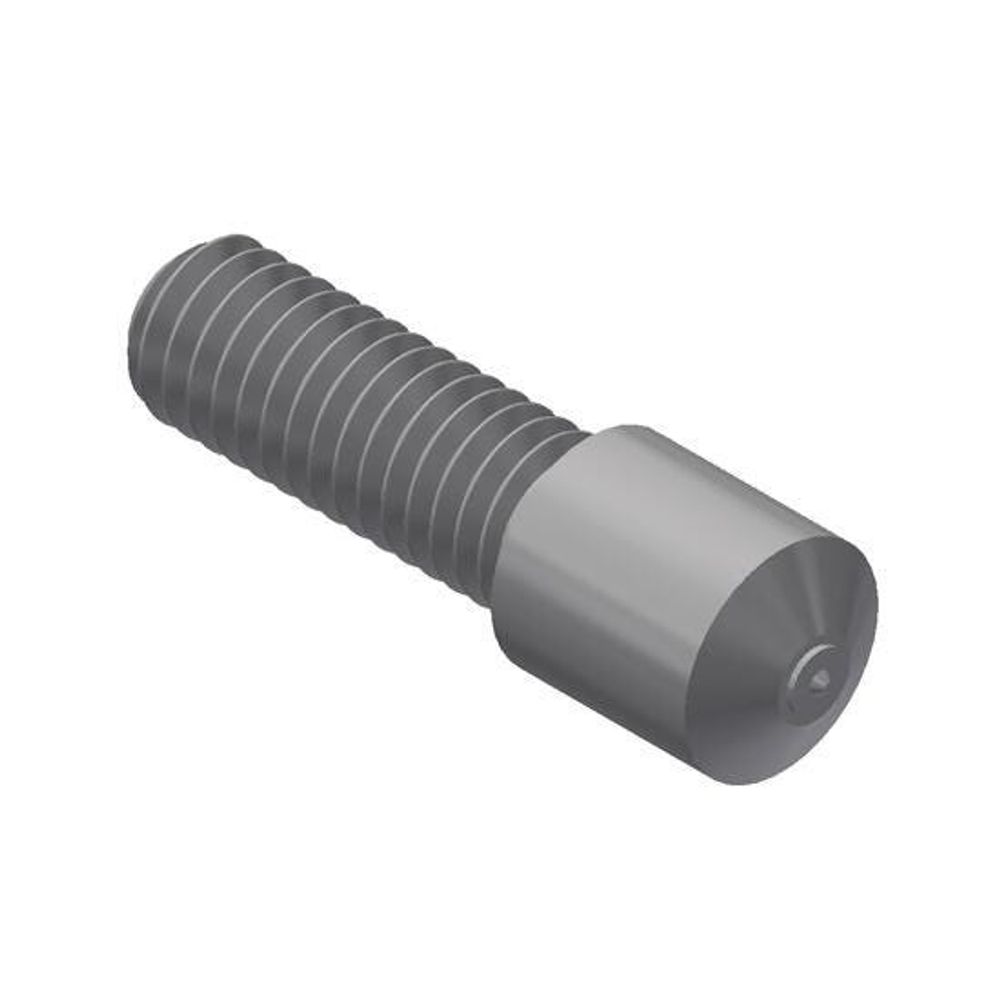

SBL 1/2 X 2 MS 3/8-16 X 1 1/4 - 102093080
Cód:
102093080
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.5 inches |
|---|---|
| Width | 0.5 inches |
| Length | 3.25 inches |
| Weight | 0.143 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.5 inches |
| Weld Base Dia | 0.5 inches |
| Overall Length | 3.25 inches |
| Weld Base Length | 2 inches |
| Burn Off | 0.125 inches |
| Thread Size | 3/8-16 UN/UNF |
| Flash Dia | 0.687 inches |
| Flash Thickness | 0.156 inches |
| Related Ferrule | 100101014.0 |
| Related Chuck | 500001014.0 |
| Related Grip | 501001011.0 |
| Related Foot | 502001138.0 |
| Features |
1. Studs are available in Low Carbon Mild Steel and 18-8 Stainless Steel. Material selection is dependent on anticipated service temperature range. |
|---|
