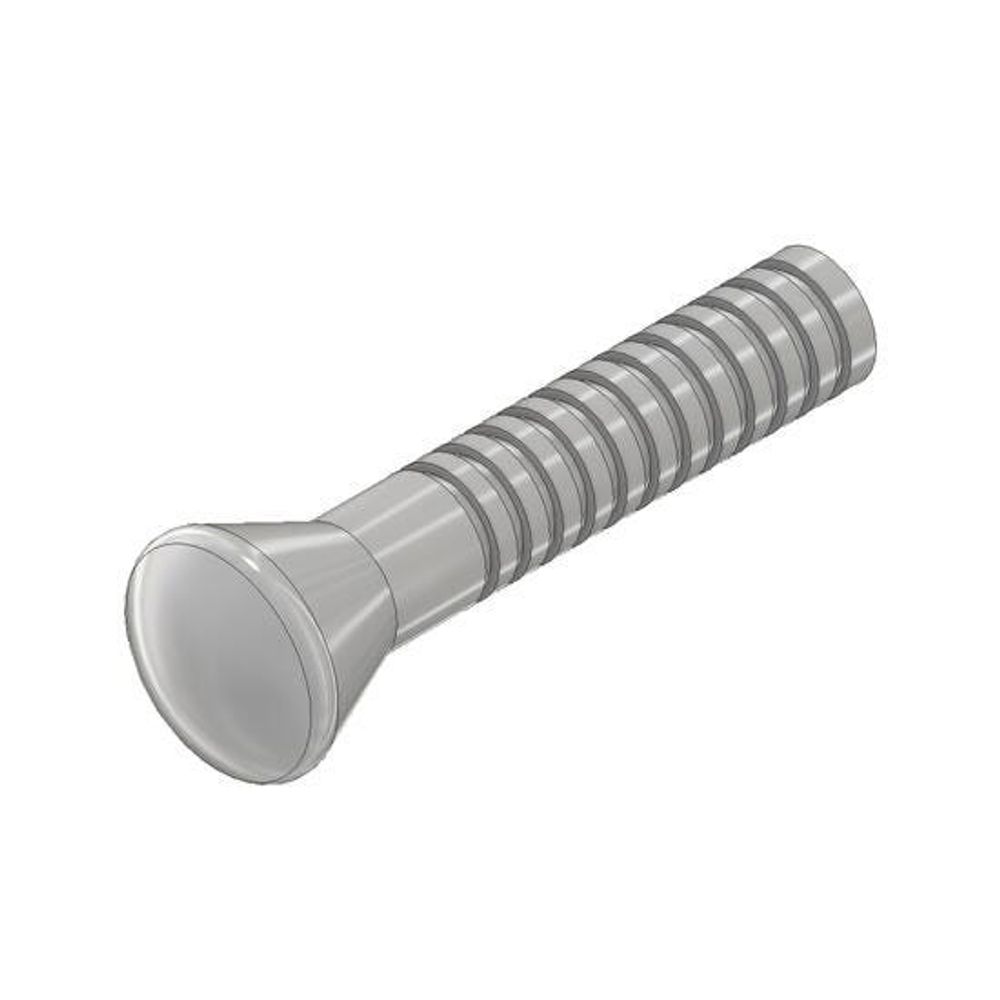

N3A 3/16 X 3 AL50 - 102074011
Cód:
102074011
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.312 inches |
|---|---|
| Width | 0.176 inches |
| Length | 3 inches |
| Weight | 0.007 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.176 inches |
| Weld Base Dia | 0.312 inches |
| Overall Length | 3 inches |
| Weld Base Length | 0.25 inches |
| Thread Size | Annular Grooves |
| Related Ferrule | 100101007.0 |
| Related Chuck | 500001005.0 |
| Related Grip | 501001006.0 |
| Related Foot | 502001137.0 |
| Features | 1. Studs are available in Low Carbon Mild Steel and 18-8 Stainless Steel. Caps are used in conjunction with Nelson N3A and N3P pins to secure many types of insulation to steel plate. 2.The flat top caps for use with N3P pins are usually supplied in aluminum. Caps can be supplied in plated mild steel or stainless steel, if needed. The standard N3P cap is shown below. |
|---|
