D6L 3/4 X 18 3/16 MS 6 LEG, - 102065051

Cód:

102065051

Opinião dos Consumidores:0

Nelson

D6L 3/4 X 18 3/16 MS 6 LEG, - 102065051

Cód:

102065051

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

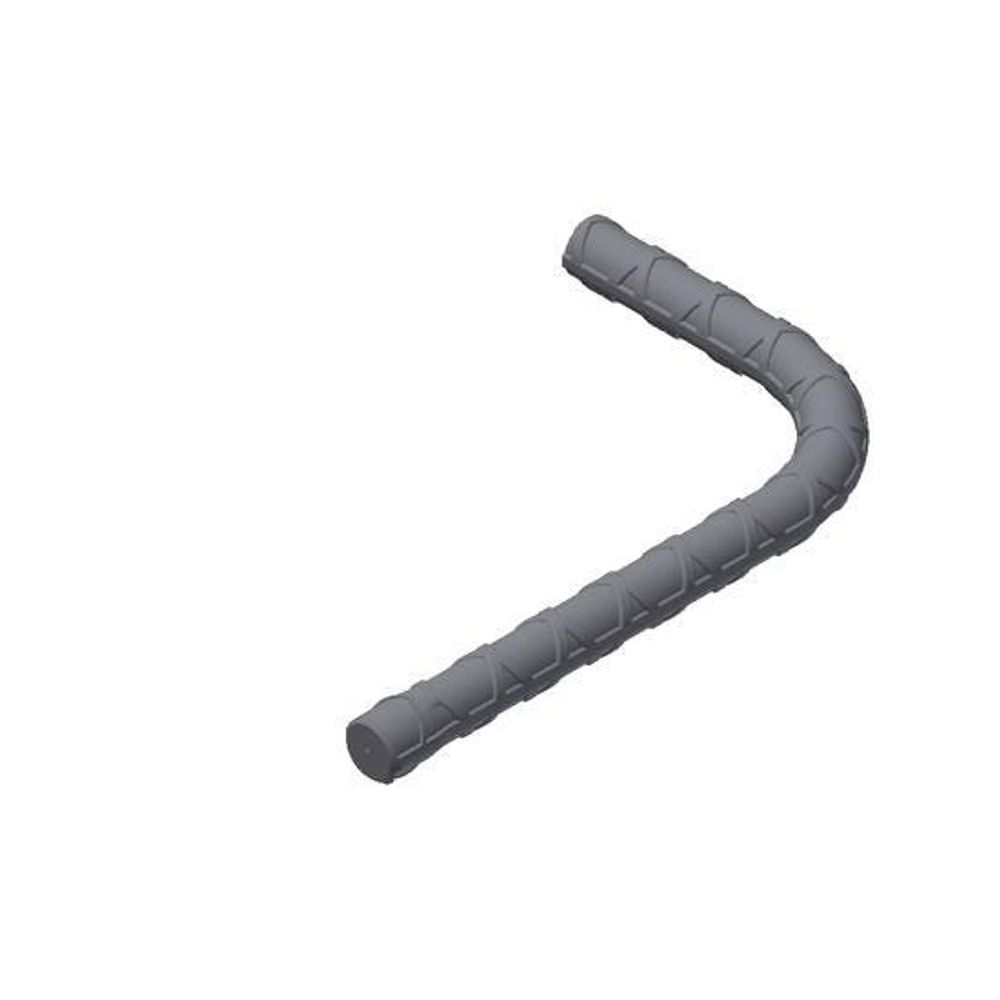

D6L 3/4 X 18 3/16 MS 6 LEG,

D6L - Rebar Stud

Height	0.88 inches
Width	6 inches
Length	15.1875 inches
Weight	3.322 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.75 inches
Weld Base Dia	0.88 inches
Weld Base Length	0.875 inches
Burn Off	0.187 inches
Base Length	15.1875 inches
Extension	3 inches
Bend Radius	2.25 inches
Bend Angle	180.0
Related Ferrule	100101140.0
Related Chuck	500001546.0
Related Grip	501006028.0
Related HD Foot	502002042.0

default

Features	1. Nelson D6L rebar studs are provided in three dia. 3/8", 1/2", 5/8", 3/4" 2. Nelson D6L rebar studs are provided in any length from 6" to 72" 3. Nelson rebar studs are also available in a variety of bent configurations manufactured to meet customer specifications. 4. Nelson C6L rebar studs are threaded to eliminate lap splicing in longitudinal reinforcement and provide reinforcement anchorage to structural members. 5. Nelson H6L Rebar Stud features a head with a net bearing area of a minimum of four times (4x) the nominal cross-sectional area of the bar. These are used in applications such as; precast columns, tee and beam connections, seismic shear walls and securing steel plates to concrete structures. 6. All Nelson rebar studs have a solid flux load

Features

1. Nelson D6L rebar studs are provided in three dia. 3/8", 1/2", 5/8", 3/4" 2. Nelson D6L rebar studs are provided in any length from 6" to 72" 3. Nelson rebar studs are also available in a variety of bent configurations manufactured to meet customer specifications. 4. Nelson C6L rebar studs are threaded to eliminate lap splicing in longitudinal reinforcement and provide reinforcement anchorage to structural members. 5. Nelson H6L Rebar Stud features a head with a net bearing area of a minimum of four times (4x) the nominal cross-sectional area of the bar. These are used in applications such as; precast columns, tee and beam connections, seismic shear walls and securing steel plates to concrete structures. 6. All Nelson rebar studs have a solid flux load
