D2L 3/8 X 80 7/8 MS - 102063593

Cód:

102063593

Opinião dos Consumidores:0

Nelson

D2L 3/8 X 80 7/8 MS - 102063593

Cód:

102063593

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

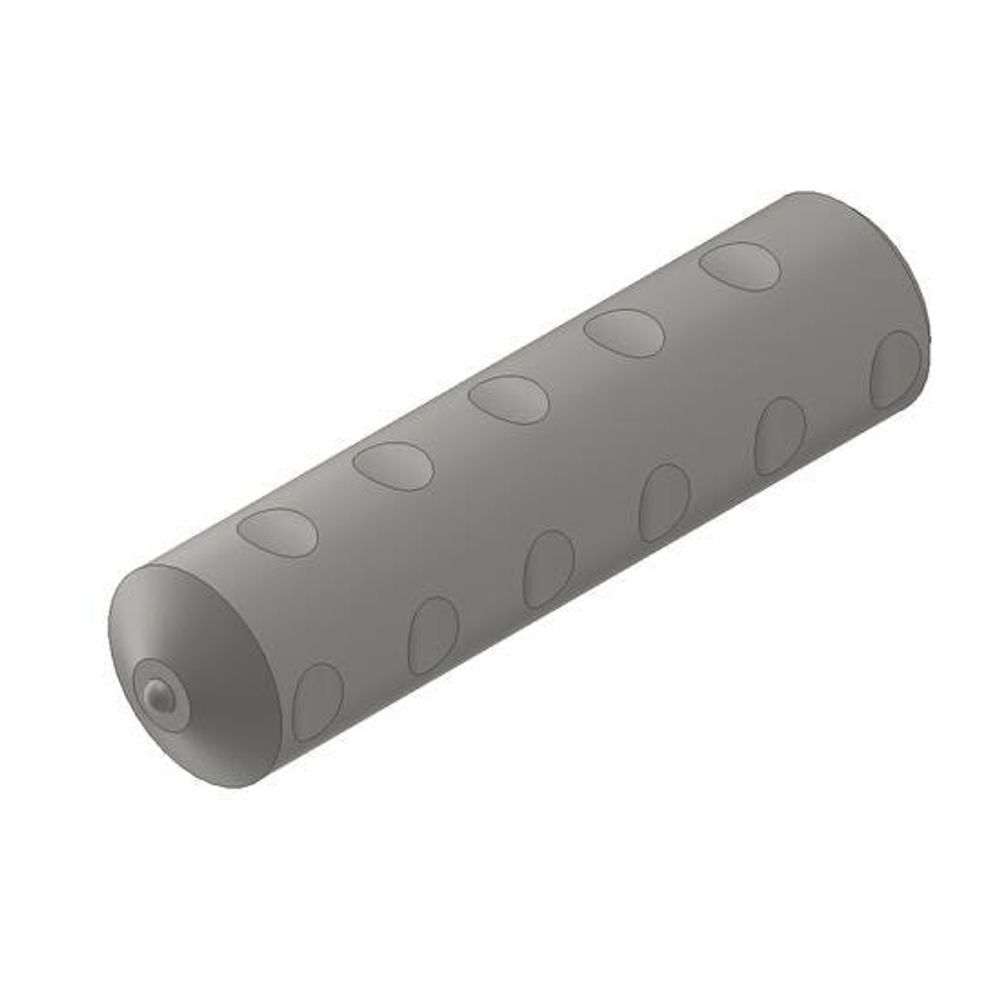

D2L 3/8 X 80 7/8 MS

D2L - Deformed Bar Anchor

Height	0.375 inches
Width	0.375 inches
Length	80.875 inches
Weight	2.369 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.375 inches
Weld Base Dia	0.375 inches
Overall Length	80.875 inches
Burn Off	0.125 inches
Related Ferrule	100101099.0
Related Chuck	500001011.0
Related Grip	501003009.0
Related Foot	502002045.0
Related HD Foot	502002001.0

default

Features	1. Nelson deformed bar anchors are provided in 3/8", 1/2", 5/8", 3/4" diam. and lengths up to 72". 2. Nelson deformed bar anchors are also available in a variety of bent configurations manufactured to meet customer specifications. 3. Nelson deformed bar anchors deliver full tension capacity when embedded according to code requirements and provide specified shear strength when embedded at proper edge distances and spacing between bars. 4. Nelson deformed bars meet requirements of the following codes: AWS D1.1 Structural Welding Code - Steel, Type C ASTM A1064 (Previously A496) Steel Wire, Deformed, For Concrete Reinforcement Precast/Pre-stressed Concrete Institute Design Handbook Canadian Standards Association, CWB W59 - Welded Steel Construction, Type C

Features

1. Nelson deformed bar anchors are provided in 3/8", 1/2", 5/8", 3/4" diam. and lengths up to 72". 2. Nelson deformed bar anchors are also available in a variety of bent configurations manufactured to meet customer specifications.

3. Nelson deformed bar anchors deliver full tension capacity when embedded according to code requirements and provide specified shear strength when embedded at proper edge distances and spacing between bars.
4. Nelson deformed bars meet requirements of the following codes:
AWS D1.1 Structural Welding Code - Steel, Type C
ASTM A1064 (Previously A496) Steel Wire, Deformed, For Concrete Reinforcement
Precast/Pre-stressed Concrete Institute Design Handbook
Canadian Standards Association, CWB W59 - Welded Steel Construction, Type C
