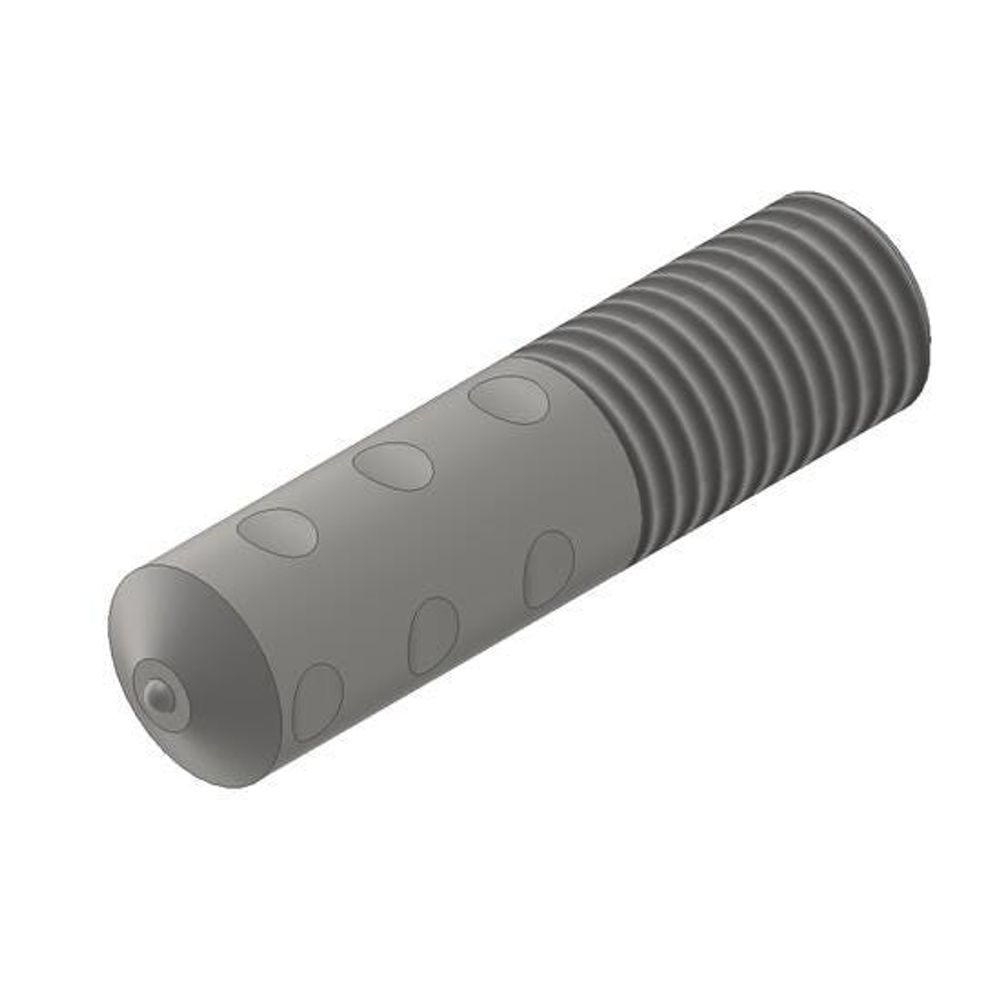

D2X 3/4 X 12 3/8 MS W/ 3/4-10

D2X - Deformed Bar Anchors, Threaded

Height	0.75 inches
Width	0.75 inches
Length	12.375 inches
Weight	1.483 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.75 inches
Overall Length	12.375 inches
Burn Off	0.187 inches
Thread Size	3/4-10 UN/UNF
Thread Length	1.25 inches
Related Ferrule	100101152.0
Related Chuck	500001018.0
Related Grip	501003019.0
Related HD Foot	502002009.0

default

Features	1. Nelson deformed bar anchors are provided in 3/8", 1/2", 5/8", 3/4" diam. and lengths up to 72". 2. Nelson deformed bar anchors are also available in a variety of bent configurations manufactured to meet customer specifications. 3. Nelson deformed bar anchors deliver full tension capacity when embedded according to code requirements and provide specified shear strength when embedded at proper edge distances and spacing between bars. 4. Nelson deformed bars meet requirements of the following codes: AWS D1.1 Structural Welding Code - Steel, Type C ASTM A1064 (Previously A496) Steel Wire, Deformed, For Concrete Reinforcement Precast/Pre-stressed Concrete Institute Design Handbook Canadian Standards Association, CWB W59 - Welded Steel Construction, Type C

Features

1. Nelson deformed bar anchors are provided in 3/8", 1/2", 5/8", 3/4" diam. and lengths up to 72". 2. Nelson deformed bar anchors are also available in a variety of bent configurations manufactured to meet customer specifications.

3. Nelson deformed bar anchors deliver full tension capacity when embedded according to code requirements and provide specified shear strength when embedded at proper edge distances and spacing between bars.
4. Nelson deformed bars meet requirements of the following codes:
AWS D1.1 Structural Welding Code - Steel, Type C
ASTM A1064 (Previously A496) Steel Wire, Deformed, For Concrete Reinforcement
Precast/Pre-stressed Concrete Institute Design Handbook
Canadian Standards Association, CWB W59 - Welded Steel Construction, Type C
