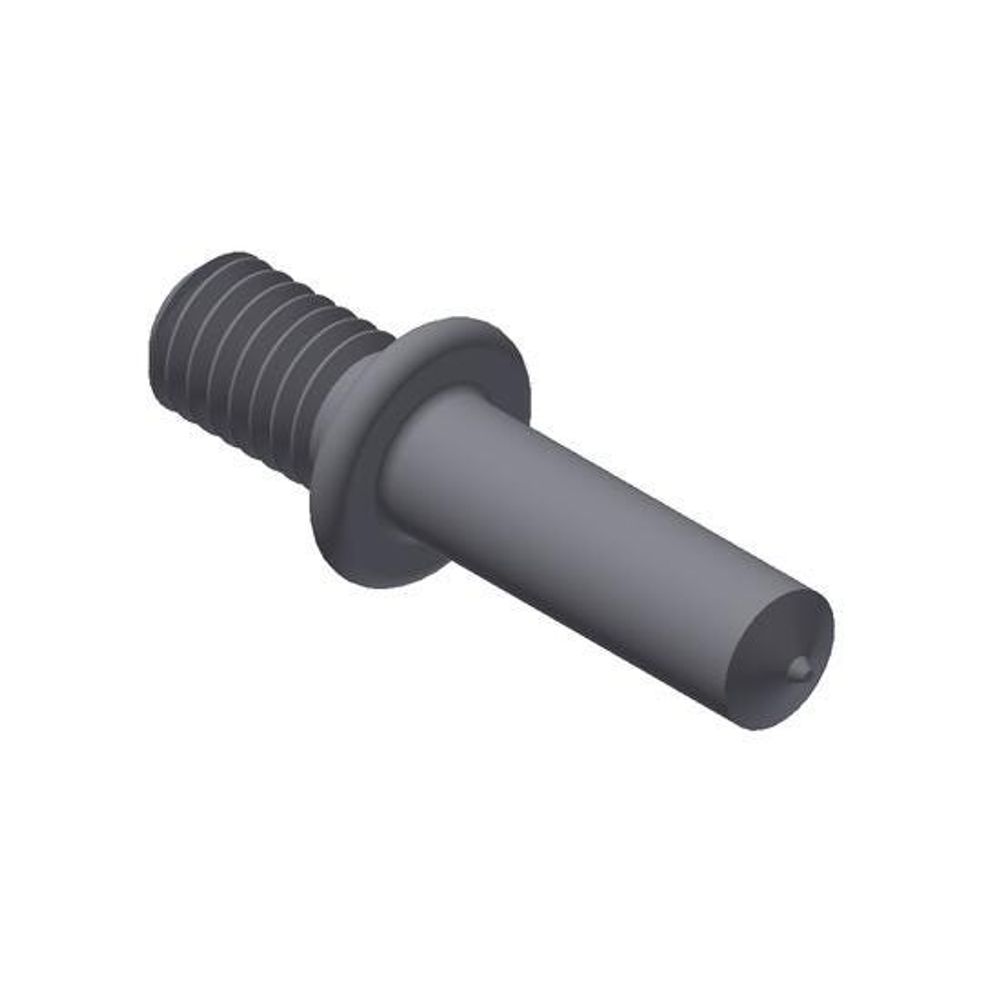

CKA .215 X 1 1/8 5356 5/8 EXT A* - 102015166
Cód:
102015166
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.5 inches |
|---|---|
| Width | 0.5 inches |
| Length | 1.843 inches |
| Weight | 0.008 Lb |
| Brand | Nelson |
| Material (O) | Aluminum |
| Stud Dia | 0.25 inches |
| Weld Base Dia | 0.215 inches |
| Collar Dia | 0.5 inches |
| Overall Length | 1.843 inches |
| Head Thickness | 0.093 inches |
| Burn Off | 0.125 inches |
| Base Length | 1.125 inches |
| Extension | 0.625 inches |
| Related HD Foot | 751020000.0 |
| Related Foot | 751020000.0 |
| Related Chuck | 500001007.0 |
| Related Ferrule | 100101047.0 |
| Flash Thickness | 0.093 inches |
| Flash Dia | 0.5 inches |
| Thread Size | 1/4-20 UN/UNF |
| Features | 1. Nelson aluminum studs are welded using ceramic ferrules in conjunction with argon as a shielding gas. The shielding gas is introduced through a gas foot. Gas hose and a gas regulator are needed to deliver and control the gas flow from a pressurized cylinder. 2.An aluminum Tranquil-Arc plunge dampener kit is also needed as an accessory on the gun to control the rate of the stud’s return to the molten weld metal at the end of the weld cycle. |
|---|
