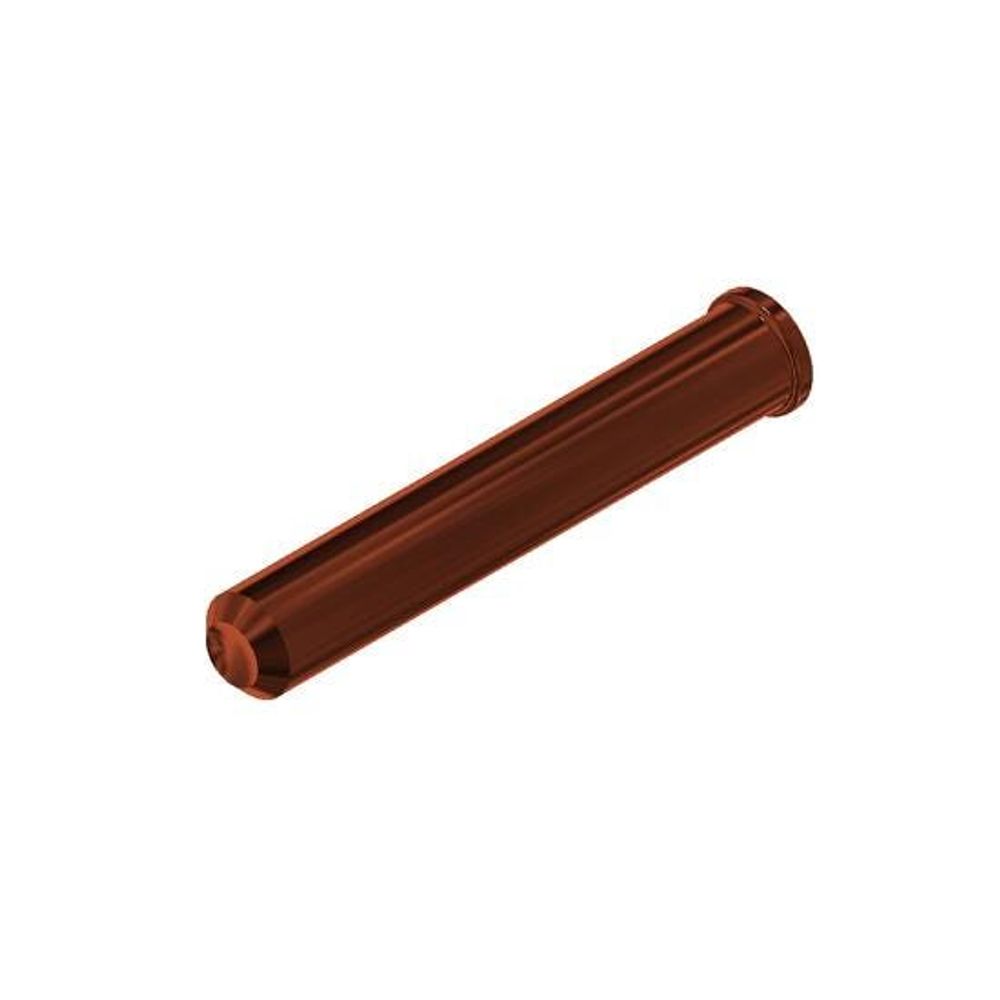

ANC 6.3 X 20.0MM MS AW AF CUPL

ANC - Small Flange, Unthreaded, Carbon Steel

Height	7 mm
Width	7 mm
Length	20 mm
Weight	0.011 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	6.3 mm
Weld Base Dia	7 mm
Overall Length	20 mm
Weld Base Length	1.3 mm
Related Chuck	500001007.0
Related Grip	511001108.0
Related Foot	502001137.0

default

Features	1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet. 2. Standard studs come in lengths up to 1.25”, 30mm. 3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts. 4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).

Features

1. The flange allows automatic stud feeding for increased production speeds. The flange also increases the stress area on the sheet.

2. Standard studs come in lengths up to 1.25”, 30mm.
3. Stored Arc studs are commonly used as locator or stop points. They may also be tapped with internal threads, or have smaller diameter externally threaded extensions. They also may have Speed Clips or self-threading nuts installed on them, and can be made with special chamfers to aid in the installation of such clips or nuts.
4. Studs are available in Low Carbon Mild Steel with copper flash plate (ANC), 18-8 Stainless Steel (ANS), and 1100 Aluminum (ANA).
