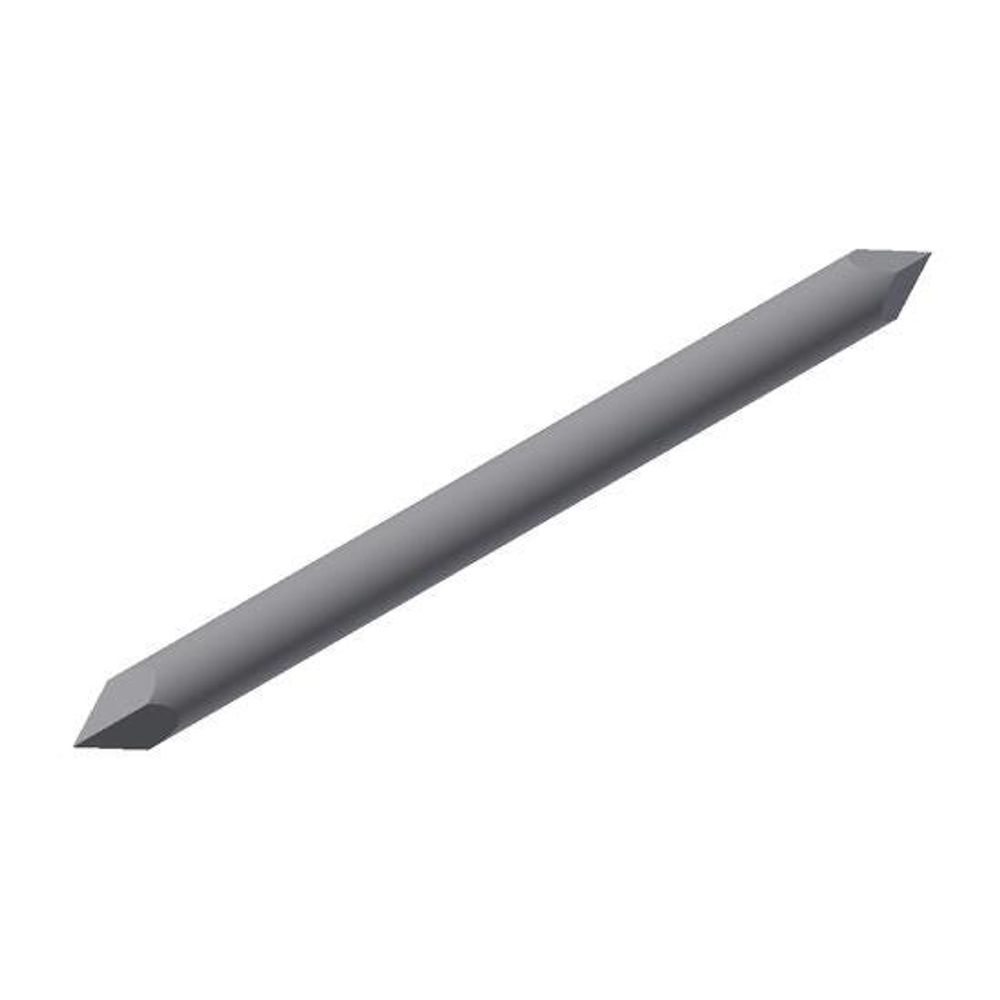

P2P 10 GA X 7 MS SPEC B - 101126700

1. Nelson CHP insulation pins, in addition to securing the fireproofing, the pins also act as a reference gauge for the thickness of fireproofing to be applied. 2. When used in combination with Speed Clips, the resultant system is a simple, inexpensive, and efficient method of securing insulation to metal backings. Stud length should be longer than the insulation thickness to aid in securing Speed Clips. 3. insulation pins have a weld tip designed for the Capacitor Discharge welding process, but they may also be welded with the Short Cycle Drawn Arc weld process.
