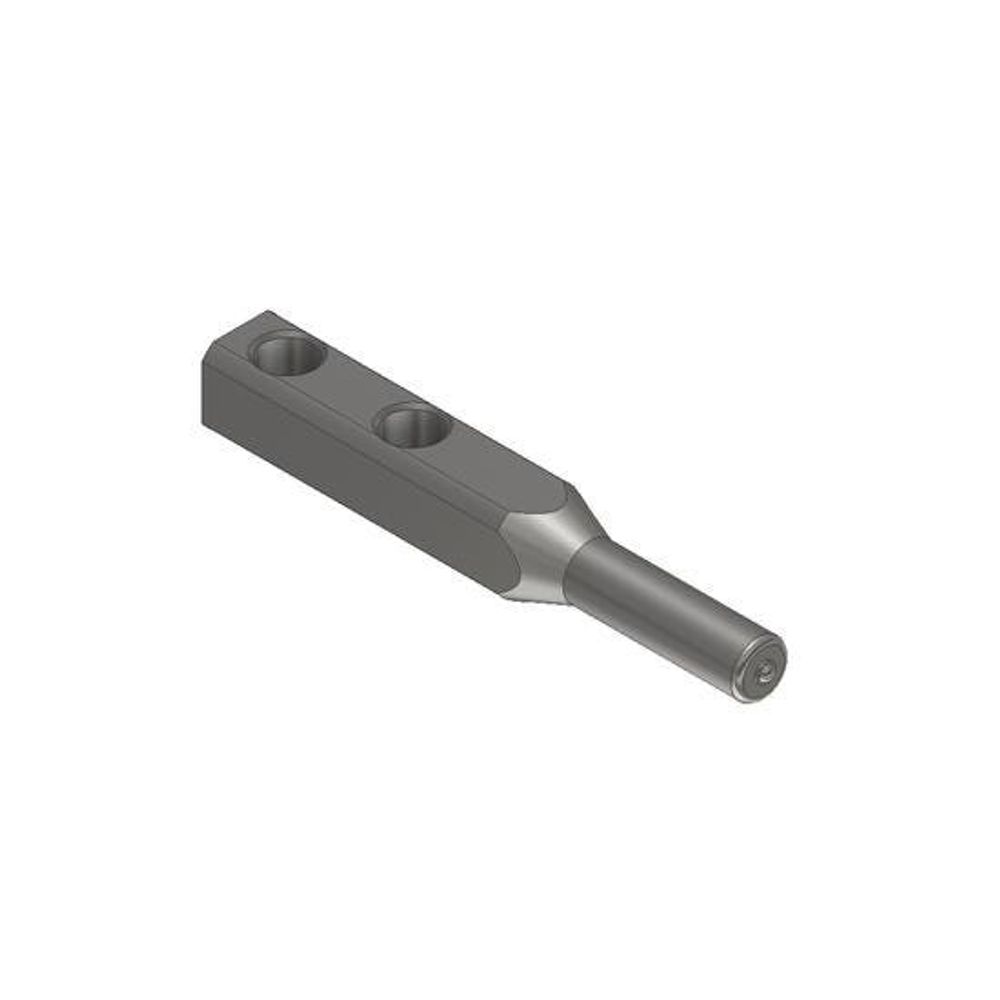

XXL 3/4 X 3 9/16 MS HDR BLANK - 101111102
Cód:
101111102
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.75 inches |
|---|---|
| Width | 0.75 inches |
| Length | 3.5625 inches |
| Weight | 0.375 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.75 inches |
| Weld Base Dia | 0.5 inches |
| Head Dia | 0.74 inches |
| Overall Length | 3.5625 inches |
| Burn Off | 0.187 inches |
| Base Length | 4.812 |
| Flash Dia | 0.67 inches |
| Flash Thickness | 0.156 inches |
| Related Ferrule | 100101259.0 |
| Related Chuck | 500007035.0 |
| Related Grip | 501001014.0 |
| Related Foot | 502001138.0 |
| Related HD Foot | 502001002.0 |
| Features | 1. Nelson Round Corner Square Studs are provided in 1/2", 3/4" and 7/8" diam. 2. The cross bolt holes in Nelson XBL and XXL studs are accessible after 1 or 2 inches of insulation has been installed. This design permits flexibility in construction and repair scheduling, which is not possible when brackets are welded directly to the ship’s structure. The standard holes accommodate 3/8-16 bolts and are spaced 1” apart. 3. The XBL series of studs have full diameter weld bases, while the XXL studs have reduced weld bases. The smaller XXL 1/2” diameter weld base is used for individual light fixtures and permit welding with smaller power sources. 4. Longer round corner square studs and different hole diameters and spacing can be applied. Nelson Round Corner Square studs have been shock and vibration tested and are Navy approved. |
|---|
