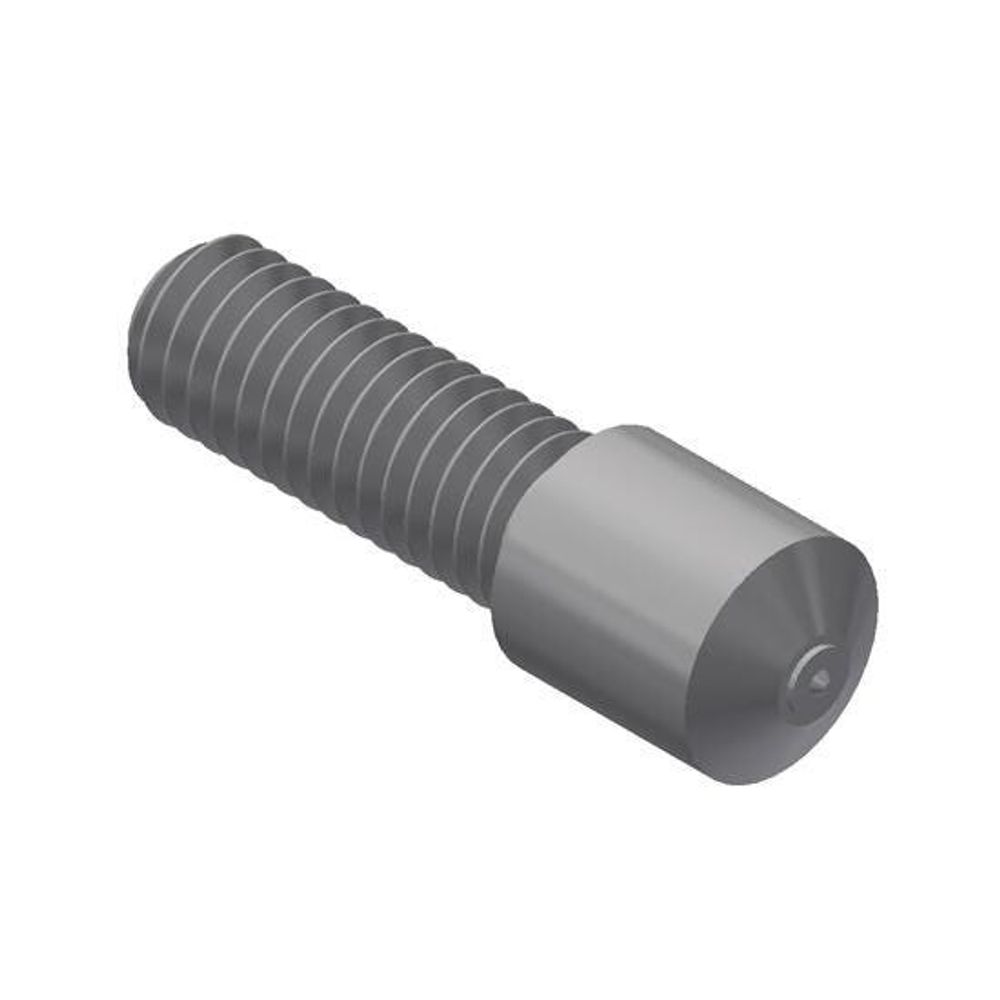

SBL 3/8 X 5/8 MS 1/4-20 X 5/8 - 101093539
Cód:
101093539
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
De: $0.00Por: $0.02ou X de
Preço a vista: $0.02
| Height | 0.375 inches |
|---|---|
| Width | 0.375 inches |
| Length | 1.25 inches |
| Weight | 0.014 Lb |
| Brand | Nelson |
| Material (O) | Low Carbon Steel |
| Stud Dia | 0.375 inches |
| Weld Base Dia | 0.375 inches |
| Overall Length | 1.25 inches |
| Weld Base Length | 0.625 inches |
| Burn Off | 0.125 inches |
| Thread Size | 1/4-20 UN/UNF |
| Flash Dia | 0.5 inches |
| Flash Thickness | 0.125 inches |
| Related Ferrule | 100101099.0 |
| Related Chuck | 500001011.0 |
| Related Grip | 501001009.0 |
| Related Foot | 502001137.0 |
| Related HD Foot | 502001001.0 |
| Features |
1. Studs are available in Low Carbon Mild Steel and 18-8 Stainless Steel. Material selection is dependent on anticipated service temperature range. |
|---|
