L2L 3/8 X 2 1/2 MS - 101060030

Cód:

101060030

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

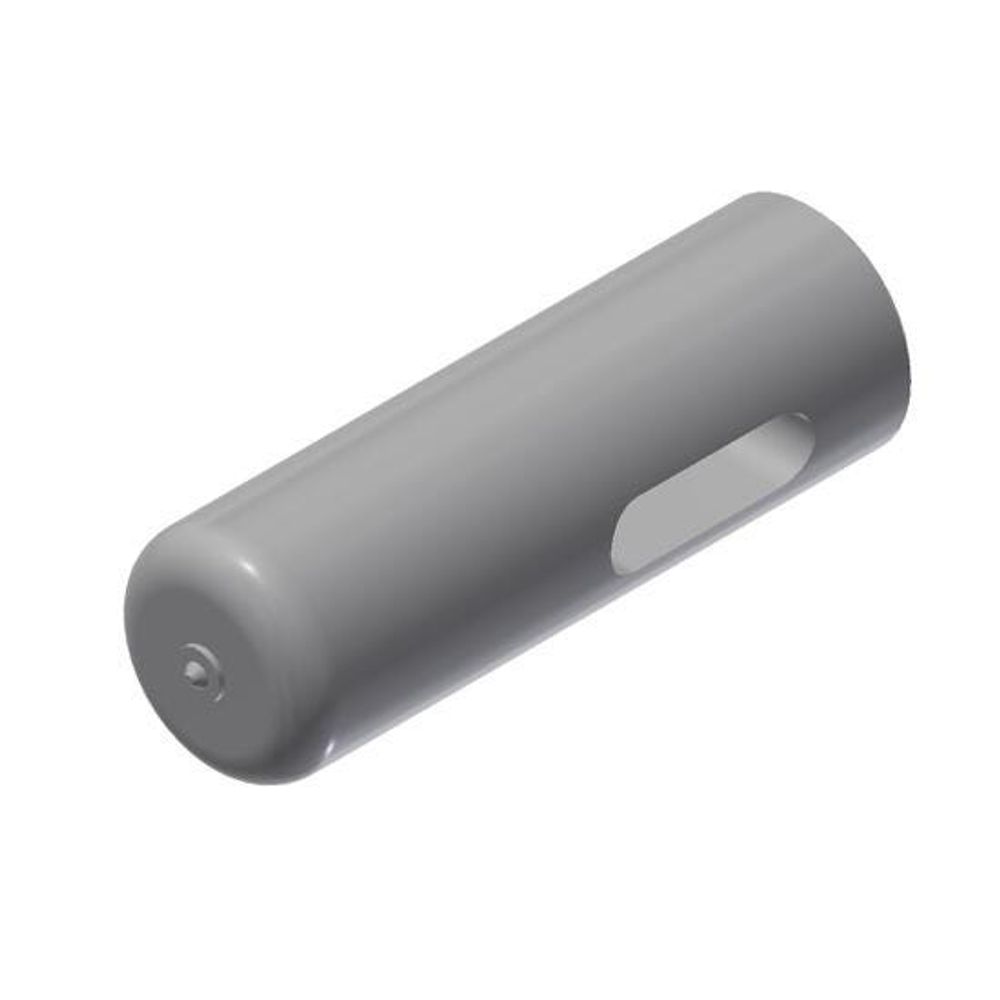

L2L 3/8 X 2 1/2 MS

L2L - Lagging Stud with Hole

Height	0.375 inches
Width	0.375 inches
Length	2.5 inches
Weight	0.078 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.375 inches
Weld Base Dia	0.375 inches
Overall Length	2.5 inches
Burn Off	0.187 inches
Tap Size	0.156 inches
Tap Length	0.5 inches
Min Base Length	0.375 inches
Flash Dia	0.5 inches
Flash Thickness	0.125 inches
Related Ferrule	100101099.0
Related Chuck	500001011.0
Related Grip	501001009.0
Related Foot	502001137.0
Related HD Foot	502001001.0

default

Features	1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5" 2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots. 3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.

Features

1. L2L studs are provided in three dia. 3/8", 1/2" and lengths of 1" up to 2.5"

2. L2L studs are also welded around openings in plates for retention of cover plates with wedge pins inserted through the slots.
3. S4X "Y" studs are available in lengths up to 8”. One leg of the S4X stud is shorter than the other to eliminate any shear plane failure tendencies common to higher density materials at elevated temperatures. 4. S7X "Steerhorn studs are available in different hights from 1' up to 6". The hight of S7X stud is designed to be approximately twice the overall height of the anchor.
