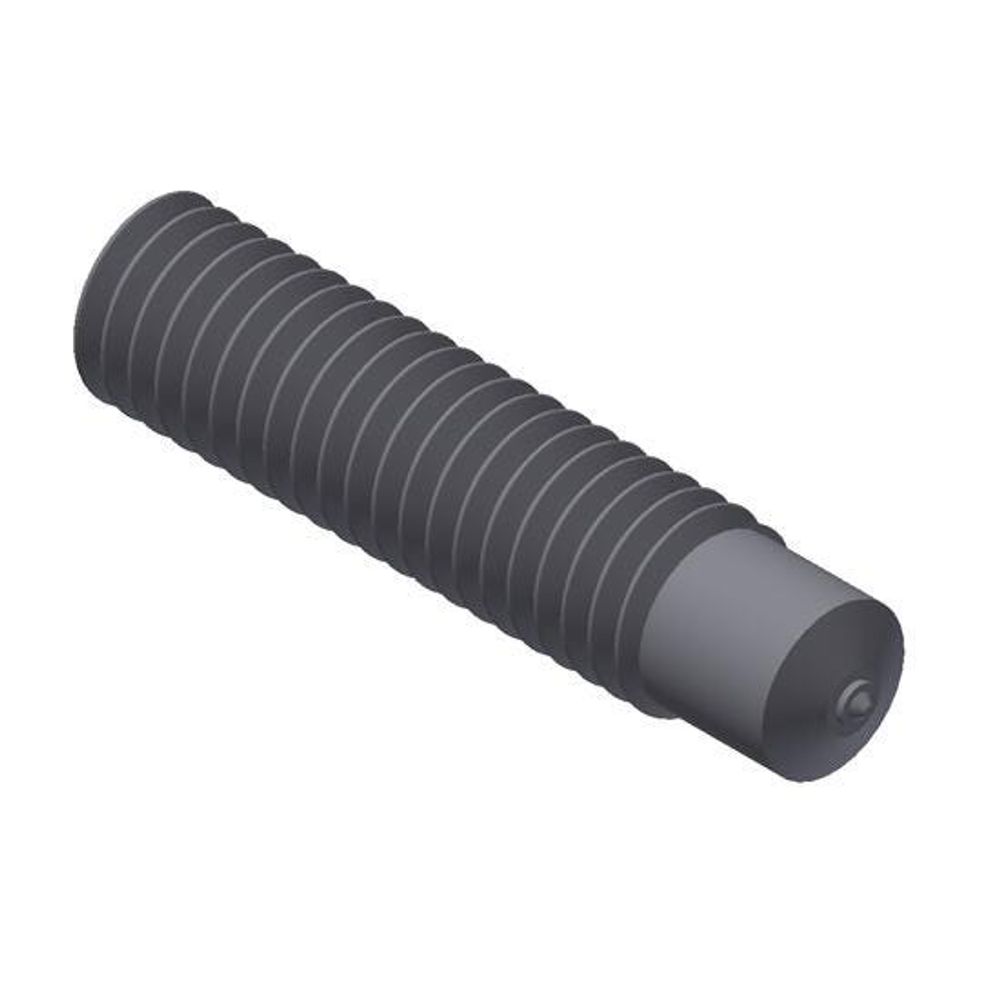

CXL 3/8-16 X 3/4 HS PDIA X - 101022592

Cód:

101022592

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

CXL 3/8-16 X 3/4 HS PDIA X

CXL - Coil Form Thread

Flash Dia	0.531 inches
Flash Thickness	0.125 inches
Related Ferrule	100101018.0
Related Chuck	500001011.0
Related Grip	501001007.0
Related Foot	502001137.0
Related HD Foot	502001001.0
Thread Size	3/8-16 UN/UNF
Burn Off	0.125 inches
Weld Base Length	0.394 inches
Overall Length	0.75 inches
Weld Base Dia	0.33 inches
Stud Dia	0.375 inches
Material (O)	High Strength Steel
Brand	Nelson
Weight	0.019 Lb
Length	0.75 inches
Width	0.375 inches
Height	0.375 inches

default

Features	1. Nelson Reduced Base Studs conform to AWS D1.1, TS 16949 and ISO 13918. 2. Studs are available in Low Carbon Mild Steel and Stainless Steel.
