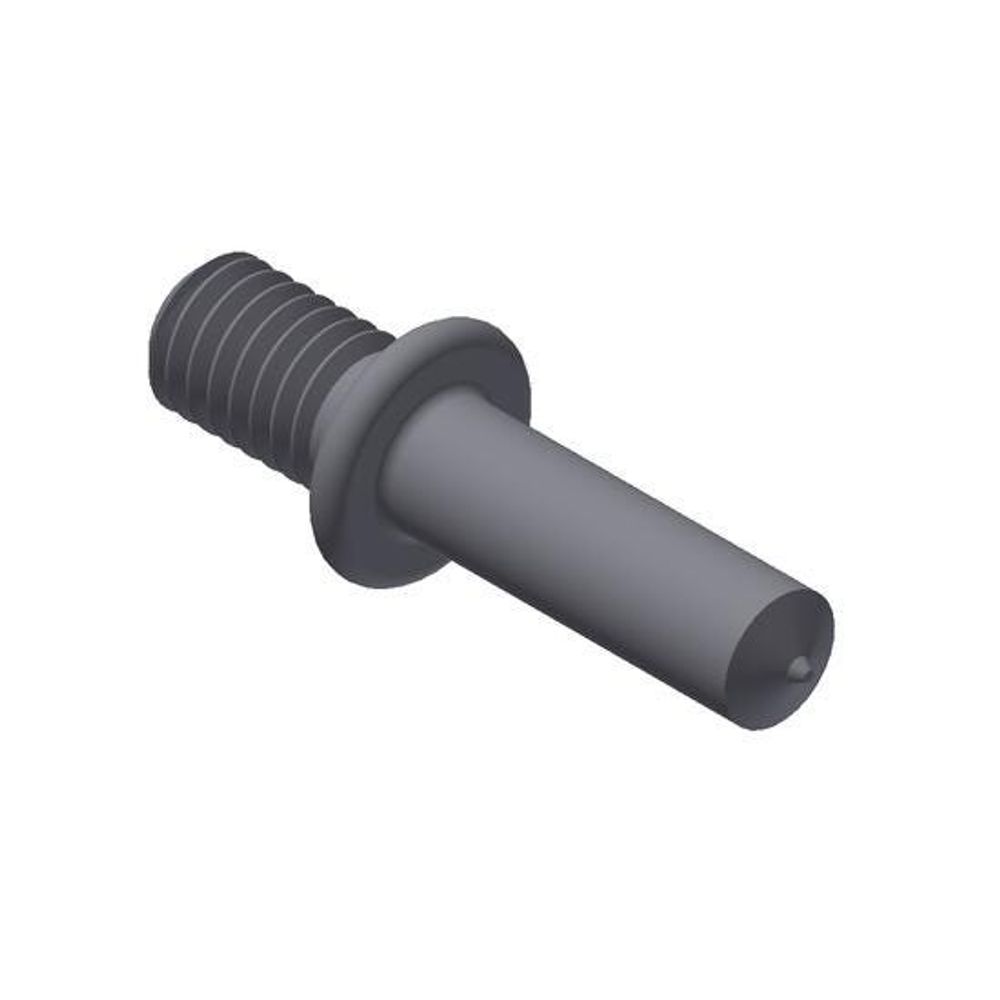

CKL 10.8MM X 16.00 MS NKPL M10 - 101016499-STD
Cód:
101016499-STD

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

CKL 10.8MM X 16.00 MS NKPL M10

CKL - Collar

Height19 mm
Width19 mm
Length37.5 mm
Weight0.048 Lb
BrandNelson
Material (O)Low Carbon Steel
Stud Dia10.8 mm
Weld Base Dia10.8 mm
Collar Dia19 mm
Overall Length37.5 mm
Head Thickness2.5 mm
Burn Off3 mm
Base Length16 mm
Extension19 mm
Thread SizeM10 metric
Related Ferrule
Related Chuck
Related Grip
Related Foot
Related HD Foot

default

Features

    1. Collared studs are made of mild steel or stainless steel. Standard threads are UNC-2A coarse thread prior to any plating, 3” length. Standard metric studs are available with standard thread length of 10, 12, 16, 20, 25, 30 and 35 mm. in ISO 13918 6g series thread. 2. PKL collared paint groove studs feature helical grooves running through the threads axially along the length of the stud. These grooves allow the application of paint without the use of a protective cover, as the bulk of the paint flows down the grooves and does not become trapped in the threads. Subsequent installation of nuts is permitted where a stand-off is required. 3. B5L feature a 90 degree bent. The thread extension speeds assembly over installing a bolt into an internal threaded boss or tapped stud.
