B4L 1/2 X 1 3/4 MS 1 11/16 LEG - 101005161

Cód:

101005161

Opinião dos Consumidores:0

De: $0.00Por: $0.02ou 1X de $0.02

Preço a vista: $0.02

Comprar

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto Especificações do Produto Avaliações

Descrição do Produto

B4L 1/2 X 1 3/4 MS 1 11/16 LEG

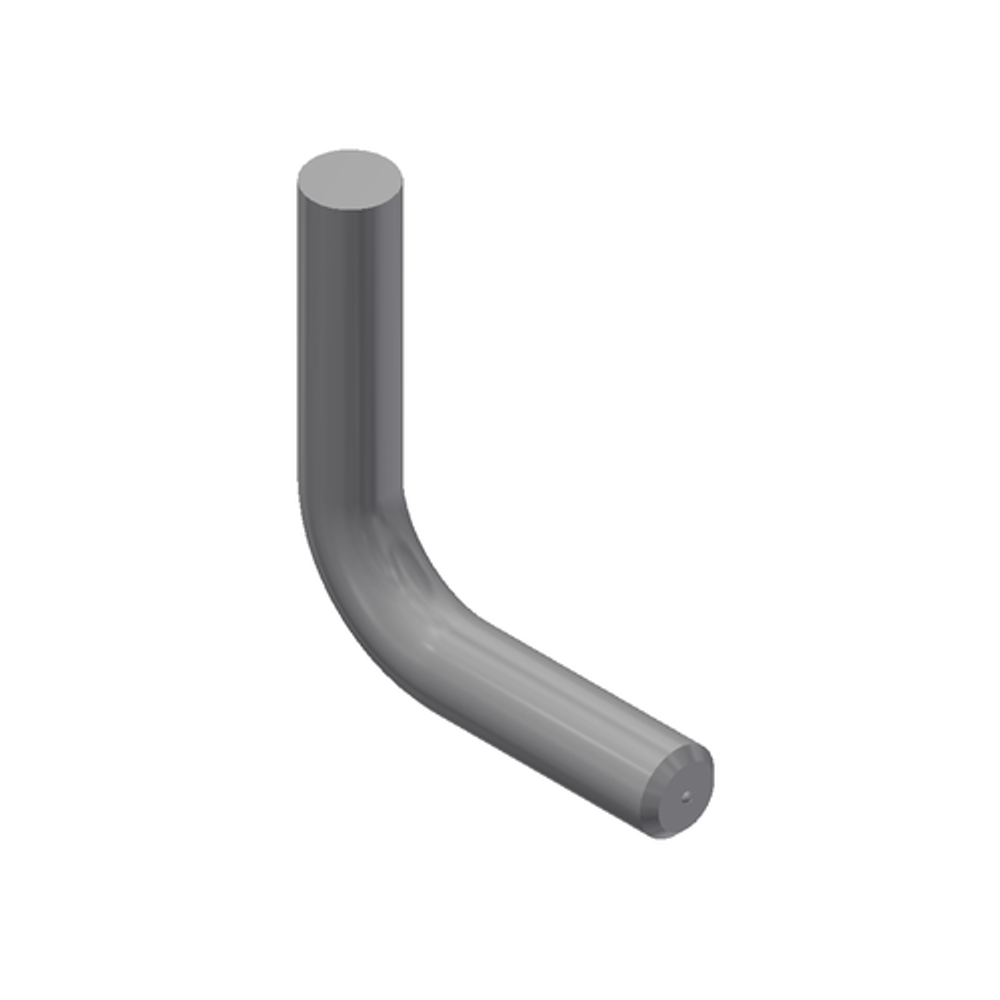

B4L - 90° Bent, Reinforcing Standoff Support

Height	0.5 inches
Width	1.75 inches
Length	1.687 inches
Weight	0.159 Lb
Brand	Nelson
Material (O)	Low Carbon Steel
Stud Dia	0.5 inches
Weld Base Dia	0.5 inches
Base Length	1.75 inches
Extension	1.687 inches
Bend Radius	0.25 inches
Bend Angle	90.0
Related Ferrule	100101114.0
Related Chuck	500008010.0
Related Foot	501006007.0

default

Features	Nelson’s B4L and B4P studs have a 90° bend and are used for exposed hangars and steps. They are also embedded as anchors or supports for positioning reinforcing bars. Nelson NBL studs are designed to be welded to heavy base materials and are commonly used as locator pins, axles, pivot points, spacers, and stops. In the power generation market, they are used to anchor refractory to water walls and to facilitate heat transfer in coal burning furnaces. In forging applications, NBL studs are used as the tong hold on the ends of billets. NJL unthreaded studs have a reduced weld base diameter, to produce a smaller weld flash diameter. The smaller weld flash allows the use of smaller clearance holes. The strength of the assembly is determined by the area of the reduced weld base rather than the thread area.

Features

Nelson’s B4L and B4P studs have a 90° bend and are used for exposed hangars and steps. They are also embedded as anchors or supports for positioning reinforcing bars.

Nelson NBL studs are designed to be welded to heavy base materials and are commonly used as locator pins, axles, pivot points, spacers, and stops. In the power generation market, they are used to anchor refractory to water walls and to facilitate heat transfer in coal burning furnaces. In forging applications, NBL studs are used as the tong hold on the ends of billets.

NJL unthreaded studs have a reduced weld base diameter, to produce a smaller weld flash diameter. The smaller weld flash allows the use of smaller clearance holes. The strength of the assembly is determined by the area of the reduced weld base rather than the thread area.
