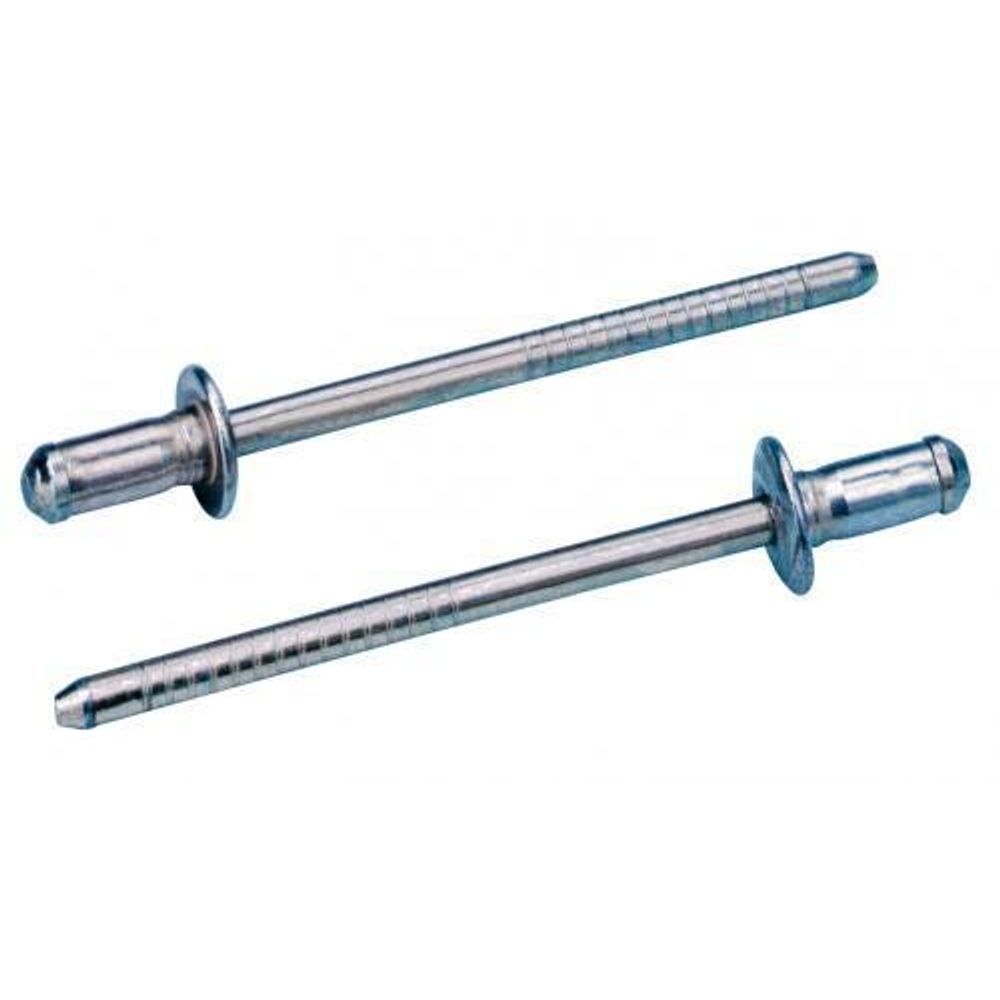

POP 4.8mm [3/16] Steel / Steel Avibulb Rivets - 0BN01-00611
Cód:
0BN01-00611
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

1.5-3.5 mm Grip with 4.8 mm Nominal Diameter in Dome Head Style with Steel Body Material and Steel Mandrel Material

Avibulb

Nominal Diameter mm4.8
Max Body Length mm12.1
Flange Thickness Inches Max0.059
Shear lbf809
Tensile lbf854
Body MaterialSteel
Mandrel MaterialSteel
Finish-BodyZinc Plate
Finish- MandrelZinc Plate
Head StyleDome
Min grip mm1.5
Max grip mm3.5
Min Grip Inches0.059
Max Grip Inches0.138
Min Hole Size mm4.9
Max Hole Size mm5.1
Min Holes Size Inches0.193
Max Hole Size Inches0.201
Max Body Length Inches0.476
Max Secondary Protrusion mm12.1
Max Secondary Protrusion Inches0.476
Flange Diameter mm Max9.6
Flange Diameter inches Max0.378
Flange Thickness mm Max1.5
Shear kN3.6
Tensile kN3.8
Nominal Diameter Inches4.8mm [3/16]
Product name1.5 - 3.5 Grip in Steel/Steel, Avibulb Non-Structural Blind Rivets

default

JDE_Weight_UOMLB
JDE_Weight_Per_UOMM
JDE_HTS_Code8308206000
JDE_Country_of_OriginUS
JDE_Lead_Time_Days98
JDE_Weight7.62
Minimum Order Quantity3000
Features

    Fast Facts:


  • Non-structural breakstem rivet.

  • Retained stem.

  • Blind hole, one-sided installation capability.

  • High shear and tensile strength.

  • Good hole fill.

  • Provides a large blind side bearing area against the rear sheet.

  • Ideal for applications requiring elevated temperatures.

  • Spreads the tail bearing load/clamp on the rear sheet.

  • Ideal for use in thin sheet materials.

  • Compensates for irregular, oversized, slotted, or misaligned holes.

  • Can stop sheet movement in non-standard holes.

  • Provides strong, vibration resistant joints.

  • No damage, electrical problems, or rattling due to loose stems.

  • Breakstem fasteners can be customized to meet unique assembly requirements.



    • Specifications:


  • Sizes: 3.2mm (1/8") to 6.0mm

  • Material: Steel, zinc & clear passivated

  • Headform: Dome
