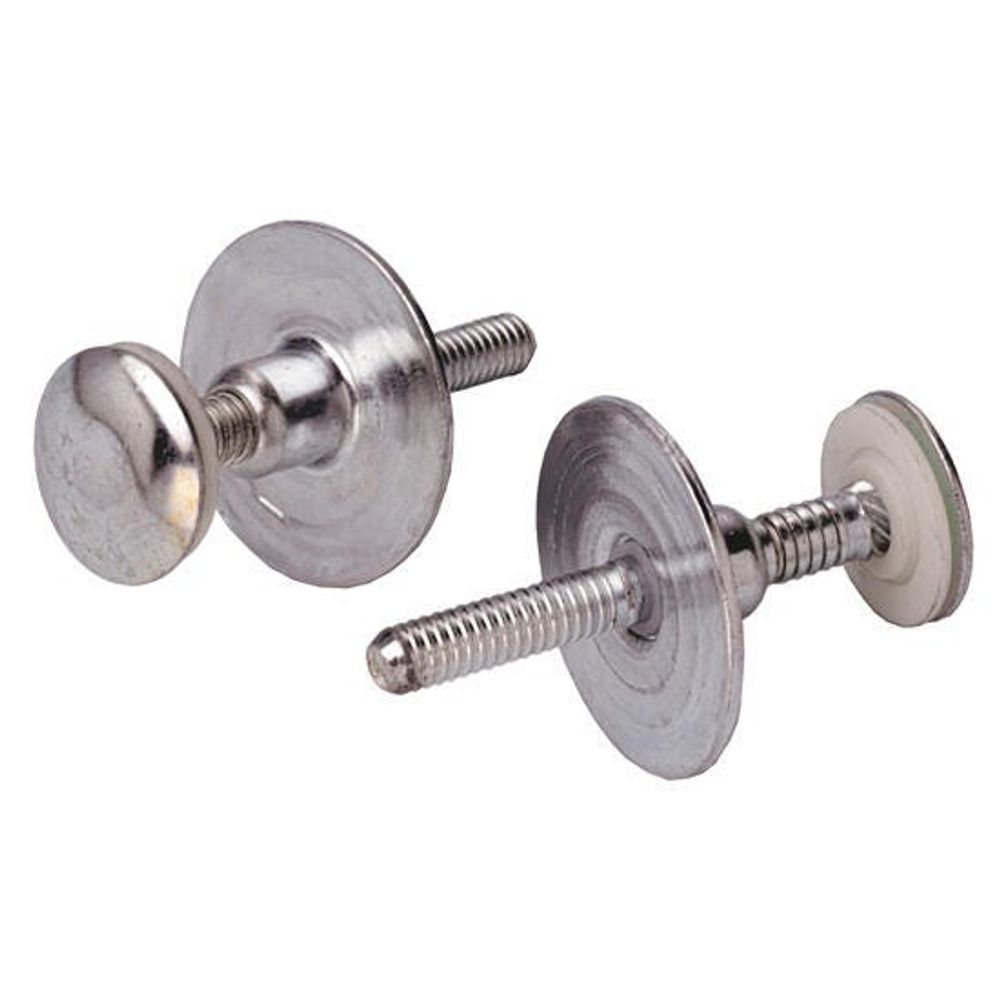

AVDEL Steel Lockbolts with 10mm [3/8] nominal diameter with 22.23 - 25.4 mm grip range - 02311-01215
Cód:
02311-01215
Opinião dos Consumidores:0

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

22.23-25.4 mm grip with 10mm [3/8] Nominal Diameter based on Low Profile Head head style and Steel Pin Material

Avtainer

nominal Diameter10mm [3/8]
Pin MaterialSteel
Head StyleLow Profile Head
Min grip mm22.23
Max grip mm25.4
Min Grip Inches0.875
Max Grip Inches1.0
Min Hole Size mm10.29
Max Hole Size mm10.69
Min Holes Size Inches0.405
Max Hole Size Inches0.421
Head Diameter mm22.35
Head Diameter inches0.88
Head Thickness mm4.19
Head Thickness Inches0.165
Tensile kN6.6
Tensile lbf1500.0
Full Collar Part No.02321-01200, 02325-01200
Body Length mm0.0

default

JDE_HTS_Code7318152095
JDE_Country_of_OriginGB
JDE_Lead_Time_Days252
Minimum Order Quantity350
Features

    Fast Facts:

  • Prevents cracking and pull through of composite materials.
  • Ideal for the assembly of GRP vehicle panels.
  • High shear strength for strong joint integrity.
  • Underhead Santoprene™ seal.
  • Internally locked stem provides a secure, vibration-resistant joint.
  • Smaller shell size available for use against metal surfaces.
  • Low-profile head and shell offer neat installed appearance.
  • Optional encapsulated heads to match the surrounding panel color.
  • Quick to install with Genesis® placing tools.
  • Easy to inspect for tampering.
  • TIR approved – easy to inspect for tampering.

    • Specifications:
  • Sizes: 10.0 mm (3/8")
  • Materials: Low Carbon Steel
  • Headforms: Low Profile
  • Option: Encapsulated heads
