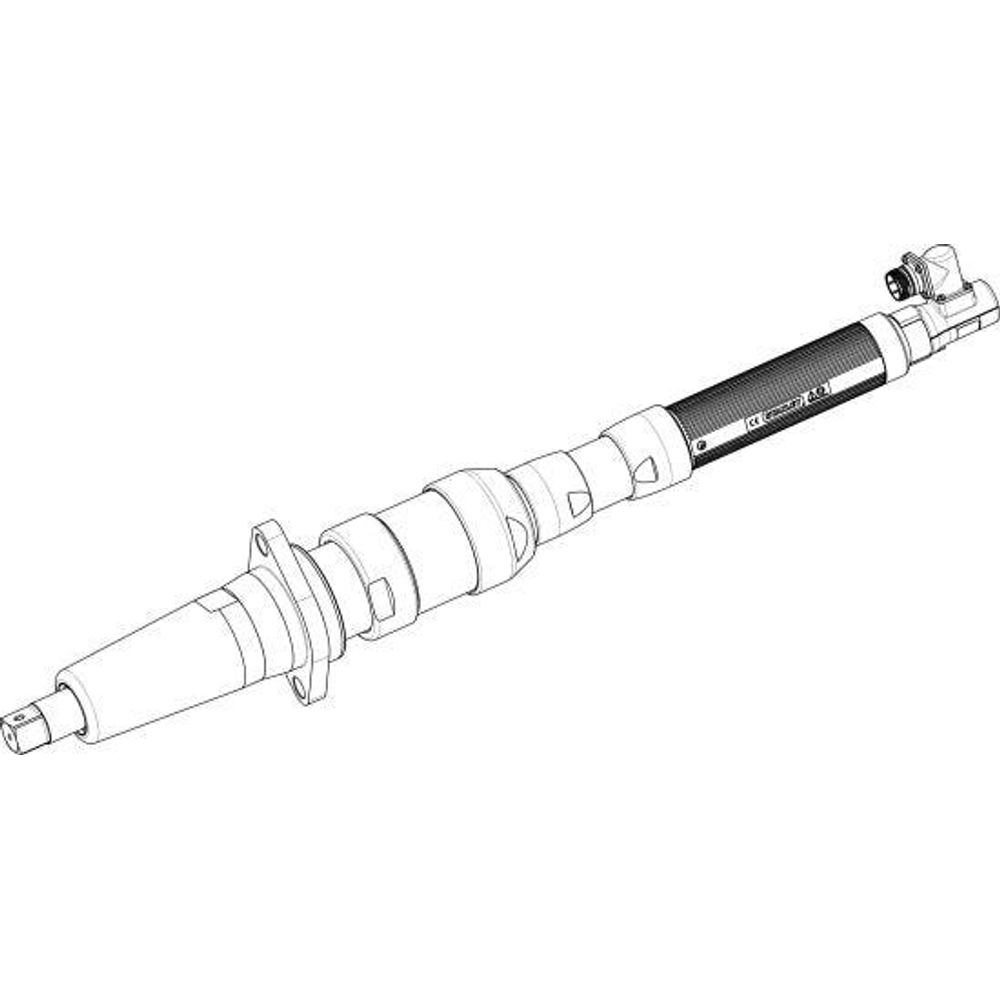

EB55MB5F1-2000R EB Series Transducerized Nutrunner
Cód:
EB55MB5F1-2000R

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

EB55MB5F1-2000R Fixtured Corded Nutrunner With The Following Features: - Rated For 200 - 2000 NM With A Recomended Working Range Of 400 - 1600 NM - 5-50 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- 1 Inch Retraction - Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

EB Series Transducerized Nutrunners

Power SourceCorded
External Torque Scatter RatingCm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
Torque MeasurementTransducer
Drive TypeDirect Drive
Handle TypeFixtured
Output TypeStraight
Recommended Working Range
Useful Tool Range200 - 2000 NM
Max Torque2000.0
Min Speed (RPM)5.0
Max Speed (RPM)50.0
Configurable OptionsContact STANLEY for custom options
