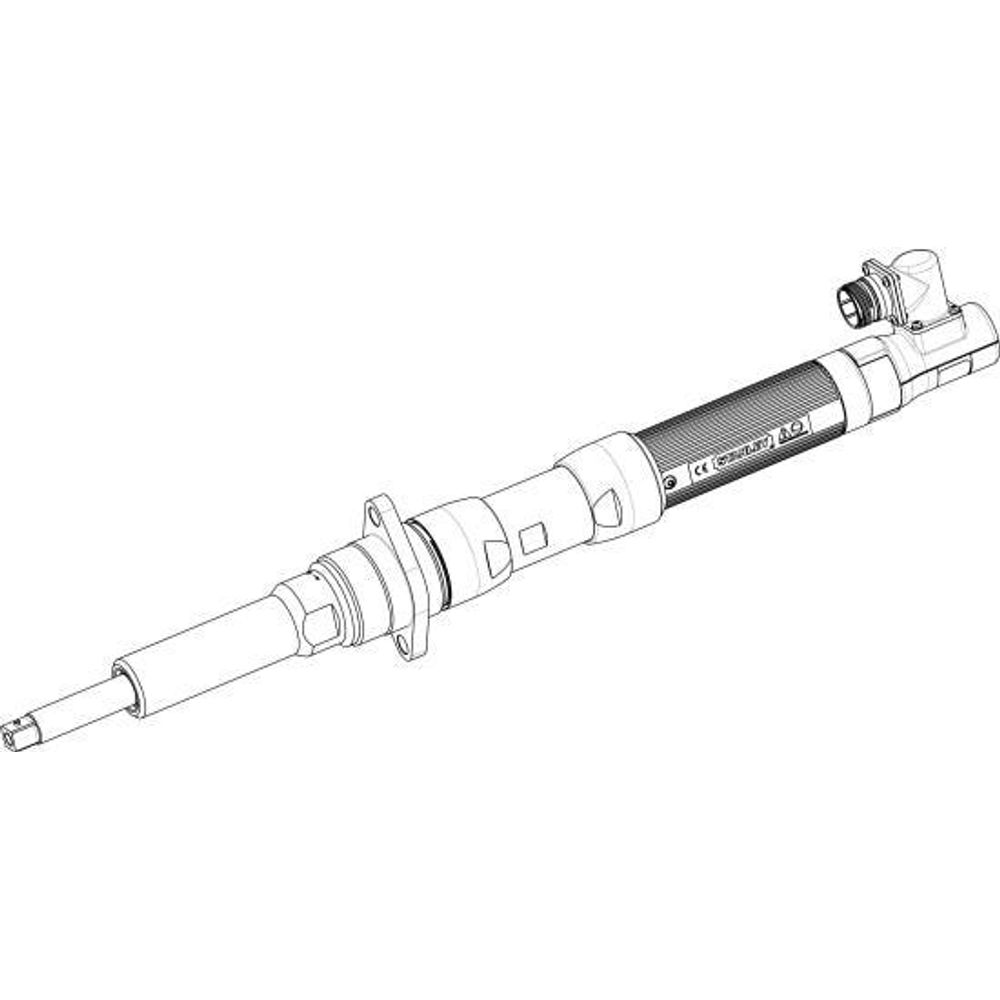

EB34MB1-55R EB Series Transducerized Nutrunner

Por: $0.02

Preço a vista: $0.02

Calcule o valor do frete e prazo de entrega para a sua região

Descrição do Produto

EB34MB1-55R Fixtured Corded Nutrunner With The Following Features: - Rated For 5.5 - 55 NM With A Recomended Working Range Of 11 - 44 NM - 83-830 RPM - Straight Output - Transducer Controlled With Cm ≥ 3.0, Cmk ≥ 2.67 with +/- 15% single-joint torque scatter capability at 100% rated torque - Redundant Torque And Angle Sensors - Direct Drive - Mult Handle For Remote Start Operation- Dual Guage Transducer

Download 3D Drawings

Download 2D Drawings

EB Series Transducerized Nutrunners

Power SourceCorded
External Torque Scatter RatingCm ≥ 3.0, Cmk ≥ 2.67 with +/- 15%
Torque MeasurementTransducer
Drive TypeDirect Drive
Handle TypeFixtured
Output TypeStraight
Recommended Working Range
Useful Tool Range5.5 - 55 NM
Max Torque55.0
Min Speed (RPM)83.0
Max Speed (RPM)830.0
Configurable OptionsContact STANLEY for custom options
